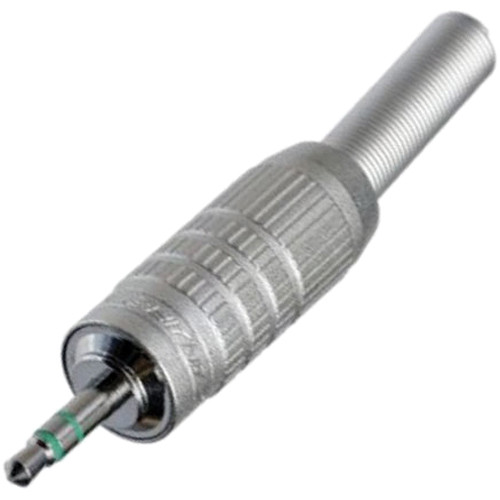

The Canare F-12 Audio Line Plug is designed for use with cabling in soldering together a termination point, making the plug quite suitable for those who like to fashion their own cables. Constructed out of brass and plated in nickel and gold, this plug provides 360° crimpable cable-strain relief, and is used to enable connections with a female 1/8" (3.5mm) TRS mini phone port.
Suitable Applications
| Type | 1/8" (3.5 mm) Mini phone TRS |
| Notes | Tip, ring, sleeve |
| Cable Entry | Internal Diameter: 0.25" (6.30 mm) |
| Outer Diameter | Cable: 0.24" (6.00 mm) maximum |
| Material | Shaft: Brass nickel plating |
| Body | Material Plating: Brass nickel |
| Insulation | Tube: Black PVC |
| Cable | Spring: Nickel plating |
Packaging Info
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 2.95 x 1 x 0.45" |
