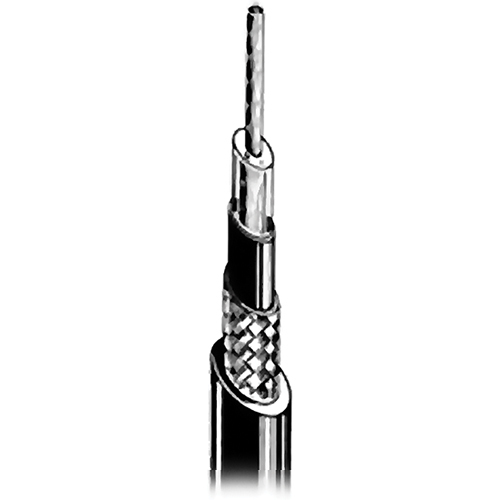

The Canare GS-4 OFC Instrument Cable (200 m / 656.17’) is a good choice for short run unbalanced audio interconnects and general instrumentation applications.
| Material | Jacket: PVC Insulation: Polyethylene |
| Conductor | Inner Conductor: AWG: 22 (50/0.1 quantity/mm) Cross Section Area: 0.39 mm² Outer Conductor: Shield Construction and Coverage: Carbon plastic shield +0.1 mm (OFC) / 6 ends / 16 carriers (93% or more) |
| Outer Diameter | Inner Conductor: 0.05" (1.3 mm) (nominal) Insulation: 0.07" (1.82 mm) (nominal) |
| Thickness | PVC Jacket: 0.03" (0.7 mm) Insulation: 0.78" (19.7 mm) |
| Conductor DCR | 4.7 Ω / 100 m |
| Shield DCR | 3.1 Ω / 100 m |
| Nominal Capacitance | 47 pF/ft (154 pF/m) (capacitance between conductors and shield) |
| Number of Conductors | 1 |
| Dielectric Strength | 500 VAC / min |
| Brittle Point | -56°F (-49°C) |
| Diameter | Center Conductor Strand (50x): 0.003" (0.1 mm) Outer Conductor Strand: 0.1 mm (OFC) |
| Outer Diameter | 0.16" (4 mm) (nominal) |
| Length | 656.17' (200 m) |
| Weight | 11.91 lb (5.4 kg) |
