Categories: Cables & Adapters

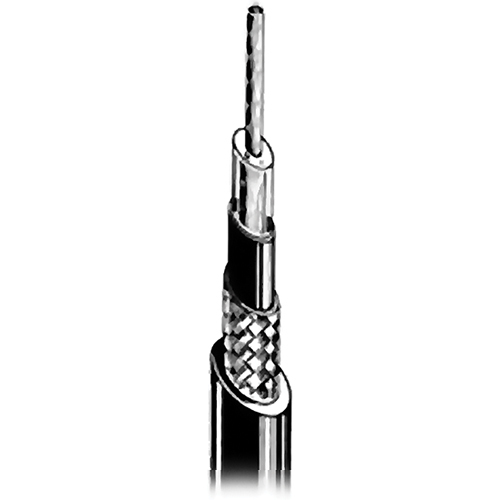

The Canare GS-6 OFC Instrument Cable (100 m / 328.08') is a specially designed oxygen-free copper 18 AWG cable use for connecting guitar/bass or keyboards to amps, mixers, effects pedals, and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50 KHz). A bright, ringing characteristic sound is preserved, even when using Hi-Z guitar pickups with long cable runs. The proprietary double carbon/braid copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. It is also recommended for Amp head to speaker cabinet leads.
| Compatible With | Cable: RCAP-C3GS Center Pin: BN1093 Sleeve: BN7079 Boot: CB25 Die Set: TCD-35D |
| Material | Jacket: PVC Insulation: Polyethylene |
| Outer Diameter | Inner Conductor: 0.05" (1.3 mm), nominal Insulation: 0.12" (3 mm), nominal |
| Thickness | PVC Jacket: 0.04" (1 mm) Insulation: 1.32" (33.5 mm) (PE) |
| Shield DCR | <7.6 Ω / 1000' (<2.5 Ω / 100 m) |
| Nominal Capacitance | 49 pF/ft (160 pF/m) |
| Number of Conductors | 1 |
| Shield Coverage | OFC > 92% braid+carbon sleeve |
| Dielectric Strength | 500 VAC / min |
| Brittle Point | -56°F (-49°C) |
| Diameter | Center Conductor Strand (50x): 0.003" (0.1 mm) Outer Conductor Strand: 0.1 mm (OFC) |
| Diameter | Outer Nominal Diameter: 0.23" (5.8 mm) |
| Length | 100 m (328.08') |
| Weight | 11.02 lb (5 kg) |
Packaging Info
| Package Weight | 12.05 lb |
| Box Dimensions (LxWxH) | 11.5 x 11.4 x 5.2" |
