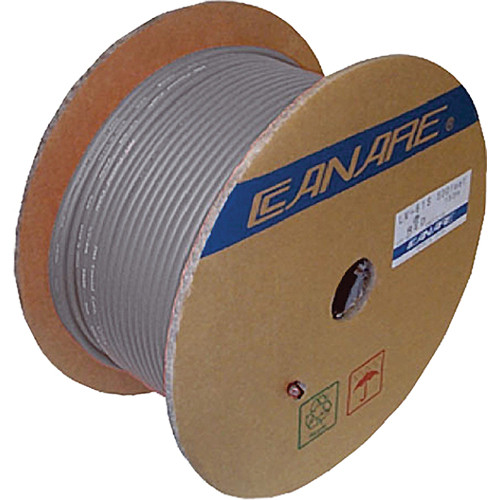

A Canare L-4E4-4AT Multi-channel Star Quad Microphone Cable (328"/100 m) is designed for all fixed audio installations. This 22 AWG, 100% foil shielded cable has 4 conductor channels that are isolated from each other and contains Kevlar 29 for tensile pulling strength. The individual foil shield, drain wire, and color coded striped PVC jacket can be easily stripped for quick on-site termination.
| Number of Quad Channels | 4 |
| Number of Conductors | 16 (4 per channel) |
| Outer Diameter | Nominal: 0.484" (12.29 mm) Channel: 146" (3.7 mm) |
| PVC Jacket Thickness | Nominal: 0.055" (1.4 mm) |
| Channel Jacket | Type:PVC Thickness:0.46" (11.8 mm) |
| Insulation | Type: IPE Thickness: 0.49" (12.6 mm) |
| Conductor | AWG (AC): 25 (16 / 4.73 quantity/mm) Cross Sectional Area: 279 mm2 AWG (Quad): 22 |
| Pitch Twist Quad | <0.83" ( <21 mm) |
| Shield Coverage | Channel: Aluminum foil 100% |
| Drain Wire | 23 AWG BundleDrain Wire: 16 AWG |
| Conductor D.C.R. | <32.9 Ω / 1000' (<10.8 Ω/100 m) |
| Nominal Capacitance | Between Conductors: 50 pF/feet (164 pF/m) Between Conductors to Shield: 68 pF/feet (222 pF/m) |
| Brittle Point | -22°F (-30°C) |
| Length | 328' (100 m) |
| Weight | 40 lb (18 kg) |
