Categories: Cables & Adapters

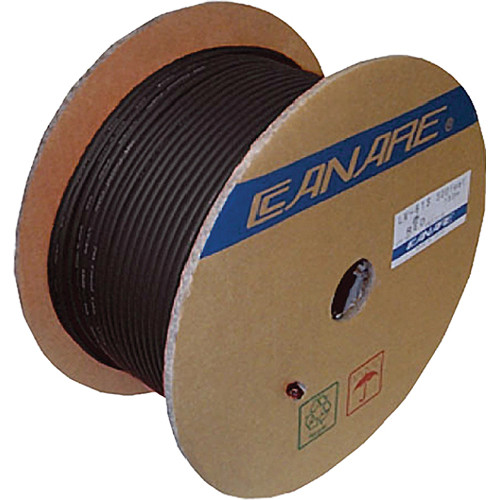

Measuring 656' long and specifically designed for point-to-point wiring in fixed installations, the Canare L-4E6AT is a spool of 20 AWG cable featuring an easily-manipulated PVC jacket which contains Dupont Kevlar 29 cable fiber—a material resistant to stretching or kinking when pulled through bends in conduits. With aluminum foil shielding, the cable features irradiated PE conductor insulation that is resistant to solder-iron meltdown.
| Cable Length | 656' / 200 m |
| Number of Conductors | 4 |
| Wire Gauge | 20 AWG |
| Outer Diameter | 0.2" / 6.2 mm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Shielding | 100% Aluminum Tape |
| Insulation Type | Irradiated Polyethylene Tape (IPE) |
| Nominal Impedance | 37 Ohms |
| Conductor Capacitance | 46 pF/ft |
| Conductor DC Resistance | 0.0194 Ohms/ft (Up to 1000' / 304.8 m) 0.0195 Ohms/ft (Up to 328' / 100 m) |
| Lay Length | 1" / 25 mm |
| Weight | 23 lb / 10 kg |
Packaging Info
| Package Weight | 24.05 lb |
| Box Dimensions (LxWxH) | 11.9 x 11.2 x 8.9" |
