Categories: Cables & Adapters , Accessories

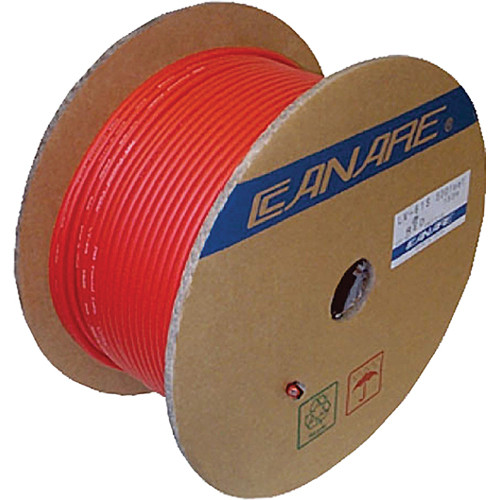

Colored in a Red matte jacket, Canare's L-4E6S provides 1000' of standard diameter, 21 AWG cable to fit within in all kinds of XLR-type audio connection points. It's designed to be utilized with PA systems and handheld applications, and features 40 separate strands in each conductor to eliminate breakage, making the cable quite flexible.
| Applications | Microphones, portable applications, audio rack wiring, PA systems, and audio patch cords |
| Outer Diameter | 0.2" / 6 mm, nominal |
| PVC Jacket Thickness | 0.04" / 1.1 mm, nominal |
| Number of Conductors | 4 (2 blue and 2 white) |
| Insulation | Type: IPE Thickness: 0.6" / 15.7 mm Dielectric Strength: 500 VAC/minute Insulation Resistance: 1,000 MOhms per 3' / 0.9 m |
| Conductor | AWG (AC): 24 (40/3.15 quantity/mm) Cross Sectional Area: 310 mm2 AWG (Quad): 21 |
| Pitch Twist Quad | 0.8" / 20 mm |
| Shield Coverage | >95% TAC Braid |
| Conductor D.C.R. | <29.9 Ohms/1,000' / <9.8 Ohms/100 m |
| Shield D.C.R | <9.1 Ohms /1,000' / <3 Ohms/100 m |
| Nominal Capacitance | Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m Between Conductors & Shield: 57 pF/ft / 185 pF/m |
| Nominal Impedance | 44 Ohms |
| Nominal Attenuation | 0.9 V/1,000' / 0.3 V/100 m |
| Group Delay Time | 1.80 ns/ft / 5.9 ns/m |
| Brittle Point | -56°F / -49°C |
| Length | 1000' / 305 m |
| Weight | 35 lb / 16 kg |
Packaging Info
| Package Weight | 34.5 lb |
| Box Dimensions (LxWxH) | 14.5 x 14.4 x 7.4" |
