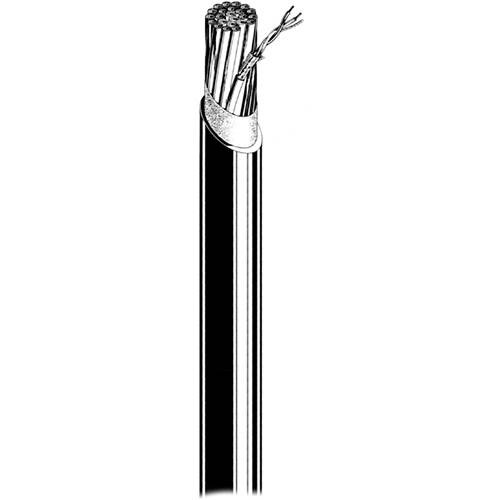

The MR202-AT Twisted Pair Multi-Channel Microphone Cable - 656' Reel from Canare is a 100% foil shielded multi-channel audio snake cable for general purpose studio applications like control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.
Each individually isolated channel consists of two twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Additionally this premium cable has excellent flexibility.
| Cable Length | 656' / 200 m |
| Number of Conductors | 24 |
| Wire Gauge | 25 AWG |
| Outer Diameter | 0.46" / 11.8 mm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Shielding | 100% Aluminum Tape |
| Insulation Type | Irradiated Polyethylene Tape (IPE) |
| Conductor Capacitance | 23.2 pF/ft |
| Conductor DC Resistance | 3.037 Ohms/ft (Up to 10.7' / 3.26 m) |
| Lay Length | 0.99" / 25 mm |
