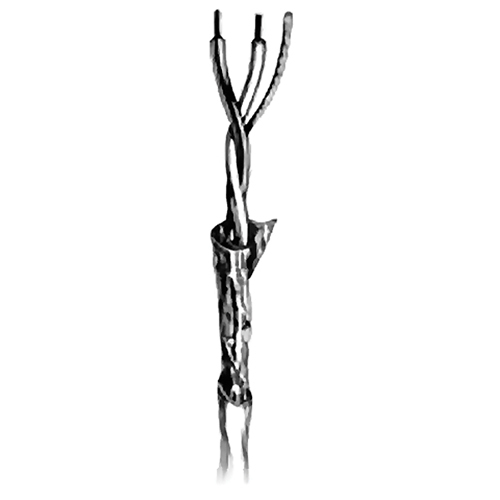

The black Twisted Pair Microphone Cable from Canare is a thin-profile audio hookup wire that measures 1640' in length. This cable is very flexible and features a 100% foil shield, drain wire, and PVC jacket, which strips easily for rapid assembly. This microphone cable is suitable for large cable harness bundles, mixing consoles, tape machines, and inner-rack wiring. This is cable belongs to the L-2B2AT Twisted Pair Microphone cable series.
| Applications | Microphones, permanent installations, audio patch cords, PA systems, post-production suites, and recording studios |
| Mechanical/Electrical | |
| Outer Diameter | Nominal: 0.126' (3.2 m) |
| Nominal Jacket Thickness | 0.012' (0.3 m) |
| Number of Conductors | 2x |
| Conductor | AWG (AC): 25 (16 / 4.73 quantity / mm) Cross-Sectional Area: 279 mm² |
| Pitch Twist Quad | <0.99" (<25 mm) |
| Shield Coverage | 100% Aluminum tape |
| Conductor D.C.R. | <31.9' Ω / 1000' (<10.5 Ω / 100 m) |
| Nominal Capacitance | Between Conductors: 23 pF / 1000 (73 pF / 100 m) Between Conductors to Shield: 37 pF / 1000' (120 pF / 100 m) |
| Brittle Point | -13°F (-25°C) |
| Length | 1640' (500 m) |
| Weight | 15 lb (7 kg) |
Packaging Info
| Package Weight | 16.15 lb |
| Box Dimensions (LxWxH) | 11.5 x 11.5 x 6.6" |
