CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects
CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects
CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects
CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects

CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects

Brand: CHAUVET

MFR: GIGBARMOVEPLUSILS

SKU: SF-2443-GRXQ

4,338.00 ﾹ

  • Integrated Lighting System (ILS)
  • 2 Moving Heads with Color & Gobo Wheels
  • 2 RGBW LED Rotating Derby Effects
  • 2 RGBAW+UV LED Par Wash Lights
  • 4 Cool-White LED Strobes
  • 1 Laser with Red/Green/Blue Diodes
  • IRC-6 and Footswitch Wireless Remotes
  • Carrying Bags for Tripod and Fixtures
  • Automated and Sound-Activated Programs
  • 3 DMX Channel Modes: 3, 28, and 50

Items Included

  • CHAUVET DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads, Pars, Derbys, Strobe, and Laser Effects
  • Power Cord
  • Wireless Remote
  • Carrying Bag
  • Tripod Stand
  • Tripod Carrying Bag
  • Wireless Footswitch
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: All DJ & Effect Lights

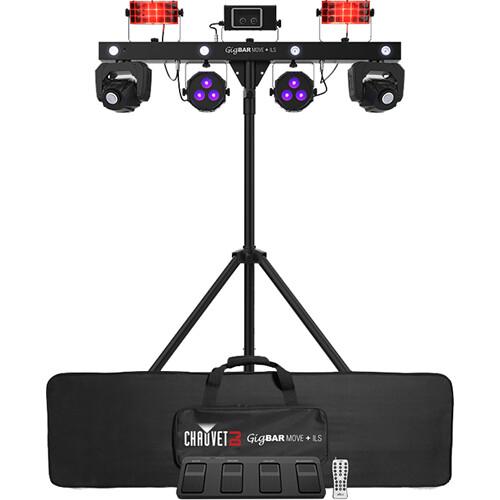

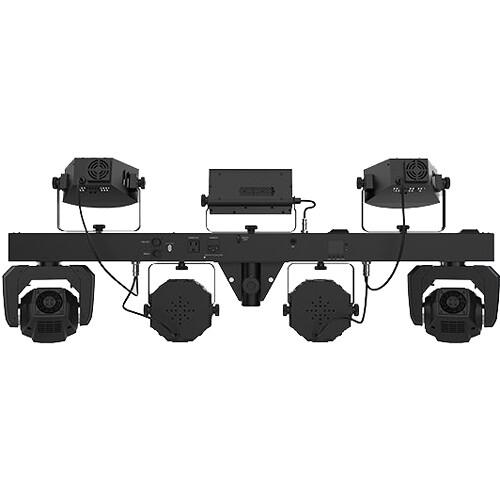

Designed to create a complete light show for the mobile entertainer, the black CHAUVET DJ GigBAR Move + ILS is a five-in-one lighting system designed to flood your stage or dance floor with a variety of exciting lighting effects and beam patterns. It includes a pair of moving head fixtures, a pair of RGBW LED derby fixtures, a pair of RGBAW+UV LED PARs, a red/green/blue laser, and four cool-white strobes, all mounted on a single bar and supported by the included tripod. Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types.

The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red, green, and blue laser beams that can rotate, and four cool-white strobes. The GigBAR Move ships with a wireless remote, a wireless foot controller, a height-adjustable tripod, and two carrying bags that let you comfortably transport the fixtures and the tripod.

  • 5-in-1 lighting system that includes moving heads, derbies, washes, a laser, and a strobe effect premounted on a single bar
  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
  • Control any ILS-enabled fixture wired or wirelessly (sold separately)
  • Use the included RF remote to trigger the built-in shows without needing line of sight
  • Powerful moving heads with separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dancefloor
  • Easy navigation and access to all moving-head functions directly from the full-color LCD display
  • System includes a tripod, wireless footswitch, RF remote, and carrying bags to ensure quick setup
  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
  • Individual control of each effect ensures your show looks the way you want
  • Easy control via standalone, DMX, wireless RF remote, or wireless footswitch

Light
Fixture Type
Moving Head / PAR / Special Design
Number of Included Heads/Lights
6
Light Source
PAR:
3x Color/UV LED - 6 W / 2 A
Strobe:
4x White LED - 5 W / 1.2 A
Derby:
8x Color LED - 6.5 W / 2 A
Moving Head:
1x White LED - 32 W / 3 A
Laser:
1x Laser Diode - 30 mW
1x Laser Diode - 20 mW
1x Laser Diode - 50 mW
Expected Lamp Life
50,000 Hours
Colors
PAR:
Amber, Blue, Green, Red, Ultraviolet, White
Strobe:
Cool White
Derby:
Blue, Green, Red, White
Moving Head:
Cool White
Laser
Red: 638 nm / 30 mW
Green: 520 nm / 20 mW
Blue: 450 nm / 50 mW
Laser Class: 3R
Photometrics
PAR:
112 fc / 1205 Lux at 6.6' / 2 m
Beam Angle
PAR: 22°
Strobe: 30°
Moving Head: 17°
Field Angle
PAR: 33°
Strobe: 62°
Shutter / Strobe
Electronic
Dimming
Electronic, 0 to 100%
Performance
Operating Modes
Automatic, DMX, Sound-Active, Totem
Strobe Rate
0 to 30 Hz
Gobos
9x Gobo
Movement
Tilt Ranges
180°
Pan Ranges
540°
Pan/Tilt Inversion
Yes
Control
Control Protocols
DMX512, ILS
DMX Channel Modes
3 Mode(s):
3 / 28 / 50-Channel
Display / Controls
LCD / 4-Button
Remote Control
Footswitch (with Included Equipment)
IR Remote (with Included Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless
Proprietary Wireless
Wireless Range
Footswitch:
100' / 30.5 m
Power
AC Power Connector
Input: 1x IEC
Output: 1x Edison
Input Power
100 to 240 VAC, 50 / 60 Hz
Fuse
T 3.15 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 250 W / 3 A
230 VAC, 50 Hz: 79 W / 0.6 A
Power Linking
7 Units at 120 VAC
12 Units at 230 VAC
Physical
Environmental Resistance
No
Mounting
Tripod Stand & Top Bar
Included Accessories
No
Duty Cycle
No
Exterior Color
Black
Cooling
Convection, Fan
Certifications
CE, FCC
Dimensions
43 x 17.7 x 5.7" / 109.2 x 45 x 14.5 cm
Weight
31 lb / 14.1 kg (System)
Packaging Info
Package Weight
55.5 lb
Box Dimensions (LxWxH)
51.25 x 27.25 x 7.25"
