Chrosziel Broadcast Box Bridge Plate-Style Lens Motor Controller Kit

Name: Chrosziel Broadcast Box Bridge Plate-Style Lens Motor Controller Kit
Brand: Chrosziel
SKU: SF-2443-DUOA
Availability: InStock

Brand: Chrosziel

MFR: CMC-BRO-300-KIT-C

SKU: SF-2443-DUOA

Price Available Upon Request

Controls Cine Zooms as Broadcast Lenses
3-Ch Universal Lens Motor Controller
Three CDM-100 Ultralight Lens Motors
2.4 GHz Interface for MagNum Hand Unit
15/19mm Brackets, Two 15mm Rod Pairs
Adjust Camera Height, Sachtler-Type QR
Buffered Memory Reduces Recalibration
Two 20-Pin Ports for Focus/Zoom Units
One 20-Pin Fuji XK/ZK Lens Cable
USB-C PD Port | 0.5, 0.6, 0.8 MOD Gears

Items Included

Chrosziel Broadcast Box Bridge Plate-Style Lens Motor Controller Kit
CMC-BRO-000 Broadcast Box
2 x 15mm Rod (8.1")
2 x 15mm Rod (35.4")
20-Pin Lensport Cable for Fujinon XK/ZK
2 x Fujinon Digital Demand Adapter Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lenses & Lens Accessories

Description
Reviews (0)

3-Channel Lens Motor Controller System

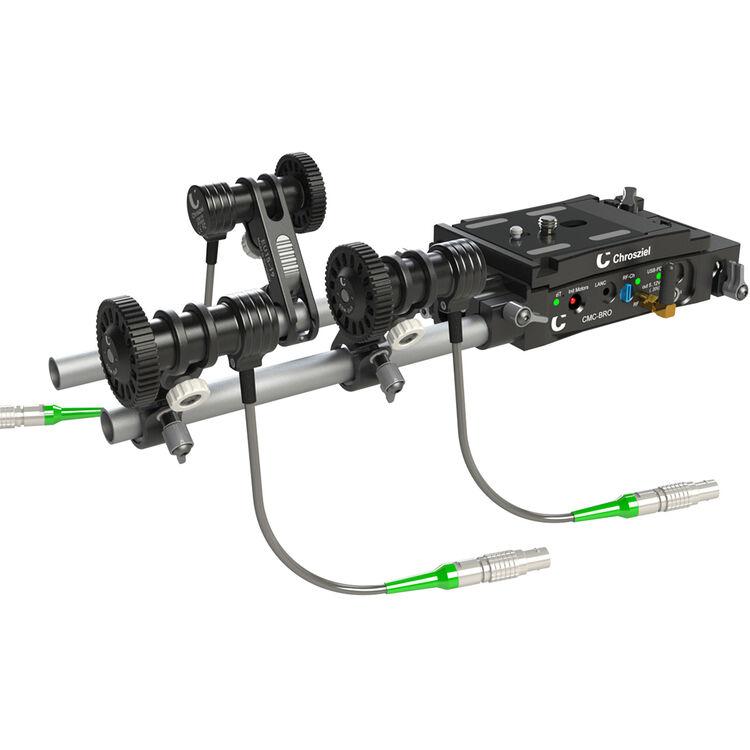

The Broadcast Box Bridge Plate-Style Motor Controller from Chrosziel provides up to three-channel control for popular FIZ (focus/iris/zoom) motors and both cine- and broadcast-style lenses. It supports a variety of cameras and wireless control units, is height adjustable, and has a Sachtler plate receiver.

Broadcast Box

Use the Broadcast box to easily bring a cine-style look to your broadcast workflow.
Universal three-channel FIZ (focus/iris/zoom) ports are compatible with Chrosziel, Heden, Preston, and similar systems.
Motor positions are memory-buffered, accommodating interruptions to your power supply without the need to recalibrate your lens motors.
Incorporates a wireless 2.4 GHz interface for the Chrosziel MagNum hand unit and a Bluetooth interface.
A booster provides increased power that is independent of your power supply input.
The wide 10 to 30V power supply includes reverse polarity protection.

Ultralight Lens Motors

This lens control system includes the Broadcast Box interface, three ultralight lens control motors, 15/19mm rod brackets, and two pairs of 15mm rods.
Ideal for gimbal, drone, and handheld camera rigs, these compact motors are very lightweight and silent.
The motors come with three each 0.5, 0.6, and 0.8 MOD interchangeable gears.
It also includes one MagNum 12V D-Tap to 5-pin LEMO, one Lensport to Fuji XK/ZK, two Fuji digital demand, two Canon 20-pin to Fuji 12-pin focus, and two Canon 2-pin to Fuji 12-pin zoom cables.

Broadcast Remote-Control Interfaces

Multiple interfaces include 20-pin analog and digital focus and zoom, camera remote 4-pin LEMO, LANC 2.5mm, and other ports.
USB-C power delivery and firmware update port.
Serial control port for additional equipment.

Bridge Plate-Style Form

This bridge plate-style unit has high and low positions to accommodate different cameras, locking front and rear 15mm LWS rod mounts, and a locking, Sachtler-compatible quick release receiver.
The bottom has both 1/4"-20 and 3/8"-16 mounting threads in a sliding design.
