Chrosziel MN-150 MagNum Extendable Wireless Lens Control System

Name: Chrosziel MN-150 MagNum Extendable Wireless Lens Control System
Brand: Chrosziel
SKU: SF-2443-DQZ4
Availability: InStock

Brand: Chrosziel

MFR: MN-150

SKU: SF-2443-DQZ4

Price Available Upon Request

Receiver and Handheld Transmitter
Remote Focus and Record Control
2.4GHz and 430MHz Frequency Bands
Fluid-Dampened Hand Wheel with End Stops
Adjustable Motor Power
Ergonomic Handgrip and Finger Rest
Four Assignable Hotkeys on Transmitter
Color OLED Display
Battery and Charger Included
Optional Dual Channel Upgrade Kit

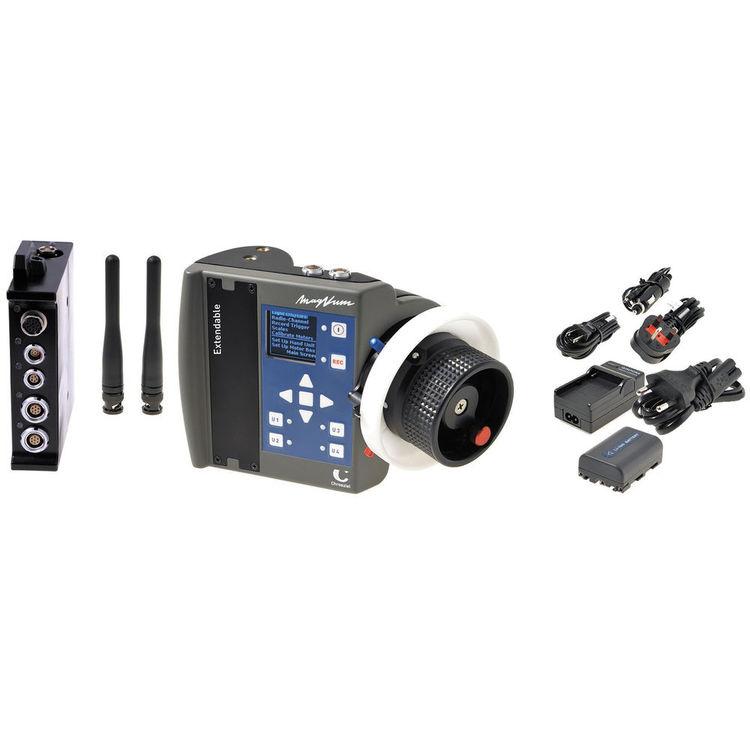

Items Included

Chrosziel MN-150 MagNum Extendable Wireless Lens Control System
MN-150T Operating Unit / Transmitter
MN-200R Motor Control Unit / Receiver
2 x Antennas

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lenses & Lens Accessories

The MN-150 MagNum Extendable Wireless Lens Control System from Chrosziel combines a receiver and a handheld transmitter unit for remote control of focus and camera record start/stop. The single channel system operates at either the 2.4GHz or 430MHz frequency bands, offering five selectable channels in the 430 MHz band, and eleven channels in the 2.4GHz frequency band for interference-free operation. The receiver has ports that accept optional lens control cables, camera start/stop cables, and power cables. The system is compatible with optional motors with gears. An optional upgrade kit is available to convert the MN-150T single-channel transmitter to a MN-200T dual-channel transmitter, with expanded features such as remote iris control.

The hand unit features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Focus marks can be made on the marking disc, with two freely adjustable end stops also available. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands, or even attach monitors. It is powered using Sony NP-FM50 type batteries. Included with the MN-150 system is a Sony NP-FM50 type battery, battery charger, and two antennas for 430 MHz-band use.

Compact-sized transmitter and receiver
Dual-band system offering five channels in the 430 MHz frequency band, and eleven channels in the 2.4GHz frequency band
Spectrum analyzer for identifying the best transmission channel
Ergonomically designed handgrip and finger rest
Symmetrical design for left- or right-handed users
Menu-guided intuitive handling through membrane keys and color OLED display
Four freely assignable hotkeys
Optional lens calibration through receiver
Fluid dampened hand wheel
Two freely adjustable end stops on the hand wheel
Magnifier function for "near" and "remote", allowing to spread the range around the nearest or the indefinite lens setting without losing the option to move to the other end stop
Spreading of any lens range at one turn of the hand wheel
Electronic "Hold" to capture settings and keep them
Indicator LED for all functions on the receiver
Record/Start/Stop signal for the camera
Adjustable motor power
USB port
Battery level indicator for camera and hand unit (transmitter)
Five 1/4"-20 threads on the hand unit (transmitter)
Rechargeable Sony NP-FM50 lithium-ion battery and charger included
Two MHz band antennas
Optional upgrade kit to convert the single-channel MN-150T transmitter to a dual-channel MN-200T transmitter

Channels	1
Battery	Sony NP-FM50 type lithium-ion
Receiver	2.4 GHz
Antennas	2 x BNC (FANT), 434 MHz
Weight	Transmitter: 1.27 lb (577 kg) Receiver: 0.58 lb (262 g)
