Chrosziel MN-200 MagNum Dual Channel Wireless Lens Control System

Name: Chrosziel MN-200 MagNum Dual Channel Wireless Lens Control System
Brand: Chrosziel
SKU: SF-2443-JCHJ
Availability: InStock

Brand: Chrosziel

MFR: MN-200

SKU: SF-2443-JCHJ

Price Available Upon Request

Receiver and Handheld Transmitter
Remote Focus, Iris, and Record Control
2.4GHz and 430MHz Frequency Bands
Accepts Wired Analog Zoom Controls
Fluid Dampened Hand Wheel with End Stops
Iris Slide with End Stops
Adjustable Motor Power
Battery and Charger Included
Padded Hand and Neck Straps

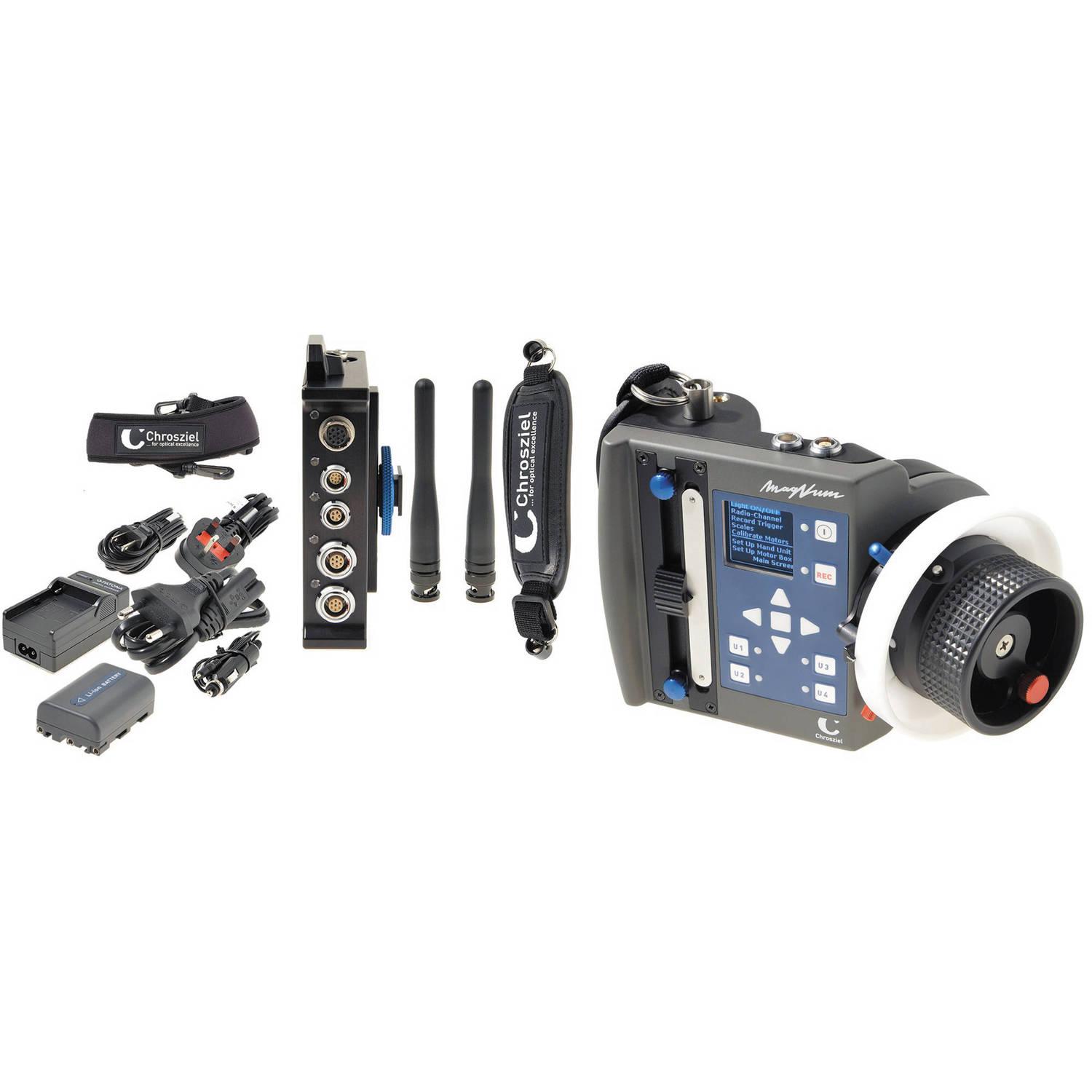

Items Included

Chrosziel MN-200 MagNum Dual Channel Wireless Lens Control System
MN-200T Operating Unit / Transmitter
MN-200R Motor Control Unit / Receiver
2 x Antennas

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lenses & Lens Accessories

The MN-200 MagNum Dual Channel Wireless Lens Control System from Chrosziel combines a receiver and a handheld transmitter unit for remote control of focus, iris, and camera record start/stop. The dual channel system operates at either the 2.4GHz or 430MHz frequency bands, offering five selectable channels in the 430 MHz band, and eleven channels in the 2.4GHz frequency band for interference-free operation. The receiver has ports that accept optional lens control cables, camera start/stop cables, and power cables. The system is compatible with optional lens motors, as well as wired analog zoom controls.

The hand unit features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Focus marks can be made on the marking disc, with two freely adjustable end stops also available. In addition to the focus wheel, the hand unit has a slide control for adjusting camera iris with extendable aluminum iris scales and adjustable end stops. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands, or even attach monitors. It is powered using Sony NP-FM50 type batteries.

Included with the MN-200 system is a Sony NP-FM50 type battery, battery charger, padded hand strap, padded neck strap, and two antennas for 430 MHz-band use.

Compact-sized transmitter and receiver
Dual-band system offering five channels in the 430 MHz frequency band, and eleven channels in the 2.4GHz frequency band
Spectrum analyzer for identifying the best transmission channel
Ergonomically designed handgrip and finger rest
Symmetrical design for left- or right-handed users
Menu-guided intuitive handling through membrane keys and color OLED display
Four freely assignable hotkeys
Optional lens calibration through receiver
Hand wheel with adjustable fluid dampening
Two freely adjustable end stops on the hand wheel
Mechanical lock in the hand wheel
Magnifier function for "near" and "remote", allowing to spread the range around the nearest or the indefinite lens setting without losing the option to move to the other end stop
Spreading of any lens range at one turn of the hand wheel
Hermetically sealed non-contact slide control for setting iris
Exchangeable iris scales made of aluminum
Two adjustable end stops for the slider of the iris control
Electronic "Hold" to capture settings and keep them
Indicator LED for all functions on the receiver
Record/Start/Stop signal for the camera
The same combi-socket can be used for connecting the cable of an analog zoom control
Internal booster to amplify motor power up to 30 volts
Socket for gooseneck lamp
Serial interface
Adjustable motor power
USB port
Battery level indicator for camera and hand unit (transmitter)
Five 1/4"-20 threads on the hand unit (transmitter)
Rechargeable Sony NP-FM50 lithium-ion battery and charger included
Padded hand- and neck-strap
Two MHz band antennas

Channels	2
Battery	Sony NP-FM50 type lithium-ion
Receiver	2.4 GHz
Antennas	2 x BNC (FANT), 434 MHz
Weight	Transmitter: 1.27 lb (577 kg) Receiver: 0.58 lb (262 g)
