DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box
DATAVIDEO Capture Devices HDMI to USB-C Capture Box

DATAVIDEO Capture Devices HDMI to USB-C Capture Box

Brand: DATAVIDEO

MFR: CAP-2A

SKU: SF-2443-L7VF

760.00 ﾹ

HDMI to USB (UVC) Capture (Input) device

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Production Switchers & Controllers , Studio Recording

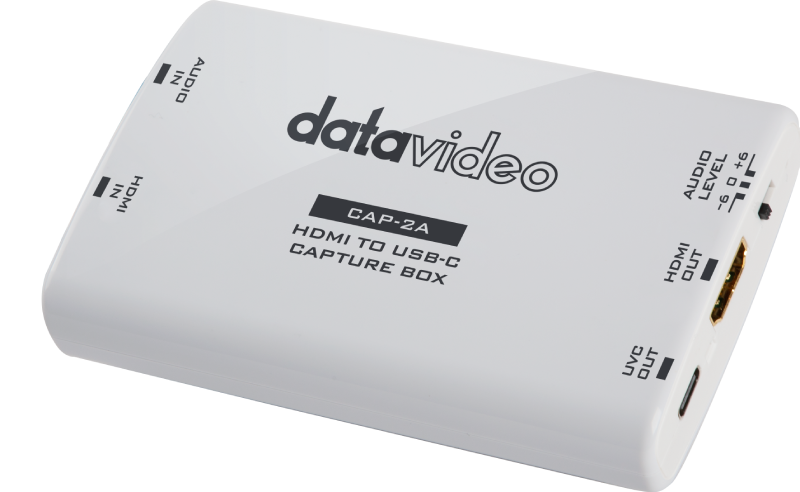

The Datavideo CAP-2A is a 4K HDMI capture device designed for live streaming, video production, and content creation. Supporting up to 4K 30p and HD 120p, it delivers exceptional video quality with rich details. Featuring a high-speed USB-C 3.2 interface, the CAP-2A ensures seamless connectivity across multiple operating systems with plug-and-play simplicity.

Its advanced audio mixing capabilities allow integration of HDMI-embedded and external audio sources for a flexible workflow. Compact, powerful, and easy to use, the CAP-2A is the ideal choice for capturing high-quality visuals with minimal setup.




  • Datavideo https://www.datavideo.com/eu/product/CAP-2A
    Capture Devices
    HDMI to USB-C Capture Box
    CAP-2A
    Input 1x HDMI
    Output 1x USB 3.2 (Type-C)
    1x HDMI Loop through
    Input Video Bandwidth Up to TMDS (18G)
    Output Video Bandwidth USB-C: Up to 5 Gbps
    HDMI: Up to TMDS (18G)
    Supported Input Video
    Formats
    3840 x 2160p: 60/59.94/50 (HDMI loop through only)
    3840 x 2160p: 30/29.97/25
    2560 x 1440p: 60/59.94/50/30/29.97/25
    1920 x 1080p: 120
    1920 x 1080p: 60/59.94/50/30/29.97/25
    1280 x 720p: 60/59.94/50
    Supported Output Video
    Formats
    3840 x 2160p: 30/29.97/25
    2560 x 1440p: 60/59.94/50/30/29.97/25
    1920 x 1080p: 120
    1920 x 1080p: 60/59.94/50/30/29.97/25
    1280 x 720p: 60/59.94/50/30/29.97/25
    Audio Input HDMI Embedded Audio (2-channel)
    3.5mm stereo Line input
    Audio Format
    Input:
    • 16/24 bits, 2-Channels
    • 44.1KHz and 48KHz sample rate
    Output:
    • Up to 24-bit PCM, fixed 48KHz output (UVC)
    Capture Video Format RGB/YUY2/NV12/I420/P010/MJPEG (USB 3.2 Gen 1)
    MJPEG/YUY2/NV12/I420/ (USB2.0)
    Firmware Update Via USB Port
    Software Compatibility
    • Windows: AMcap, Google Meet, OBS (Open Broadcast Software),
    TeamViewer, Xsplit Broadcaster, Zoom.us, Potplayer
    • Linux: VLC, OBS
    • MAC OS: OBS, VLC
    Supported OS
    • Windows 10 x64 or above
    • MacOS High Sierra 10.13 or above
    • Linux OS
    Power Supply Via USB Port
    Power Consumption Under 4.5W
    Operation Temperature 0~40°C
    Storage Temperature -20~60°C
    Humidity 20~90% RH (no condensation)
    Minimum System
    Requirement
    • PC or Notebook Basic Interface Requirements:
    USB 3.2 Gen 1x1 Type C or Type A; HDMI 2.0
    • Windows Operating System: Windows® 10 x64 or above
    1. USB must support UVC protocol, meet 4Kp30 protocol requirements;
    HDMI must support 4Kp60 HDR
    2. Intel® Core™ i3-8XXX or above
    3. NVIDIA® GeForce® GTX 1060 or above
    4. 16 GB RAM (*dual-channel)
    • Mac Operating System: MacOS High Sierra 10.13 or above
    1. USB must support UVC protocol, meet 4Kp30 protocol requirements;
    HDMI must support 4Kp60 HDR
    2. iMac:
    a) 3.6GHz Quad-Core Intel Core i7
    b) Radeon Pro 555 (2GB of VRAM)
    c) 16GB 2400MHz DDR4 Memory
    3. MacBook Pro:
    a) 2.8GHz Quad-Core Intel Core i7
    b) Radeon Pro 555X (2GB GDDR5 Memory)
    c) 16GB 2400MHz DDR4 Memory
    1 x USB 3.0 Cablea324f35683a25f7472d2ee68
