Category | Specification |
Wireless Spectrum | Wideband UHF (550–960 MHz) |
Wireless Technology | Digital UHF |
Remote Control | Sidus Audio App (TX/RX) |
Built‑In Recorder | Yes (microSD up to 128GB) |
Recording Format | True multi‑ADC 32‑bit Float |
Timecode Sync | Wireless TC‑1 Sync / 3.5mm Hard‑Wire Jam |
RF Output Power | Up to 100mW |
Operating Range | Up to 450 ft |
Battery Life | Ultra‑Long (varies by device) |
Antenna Ports | SMA (Swappable) |
Mobile App Functions | Frequency Scan, Assignment, Gain Control, Recorder Trigger |
System Advantage | Avoids congested 2.4 GHz band |

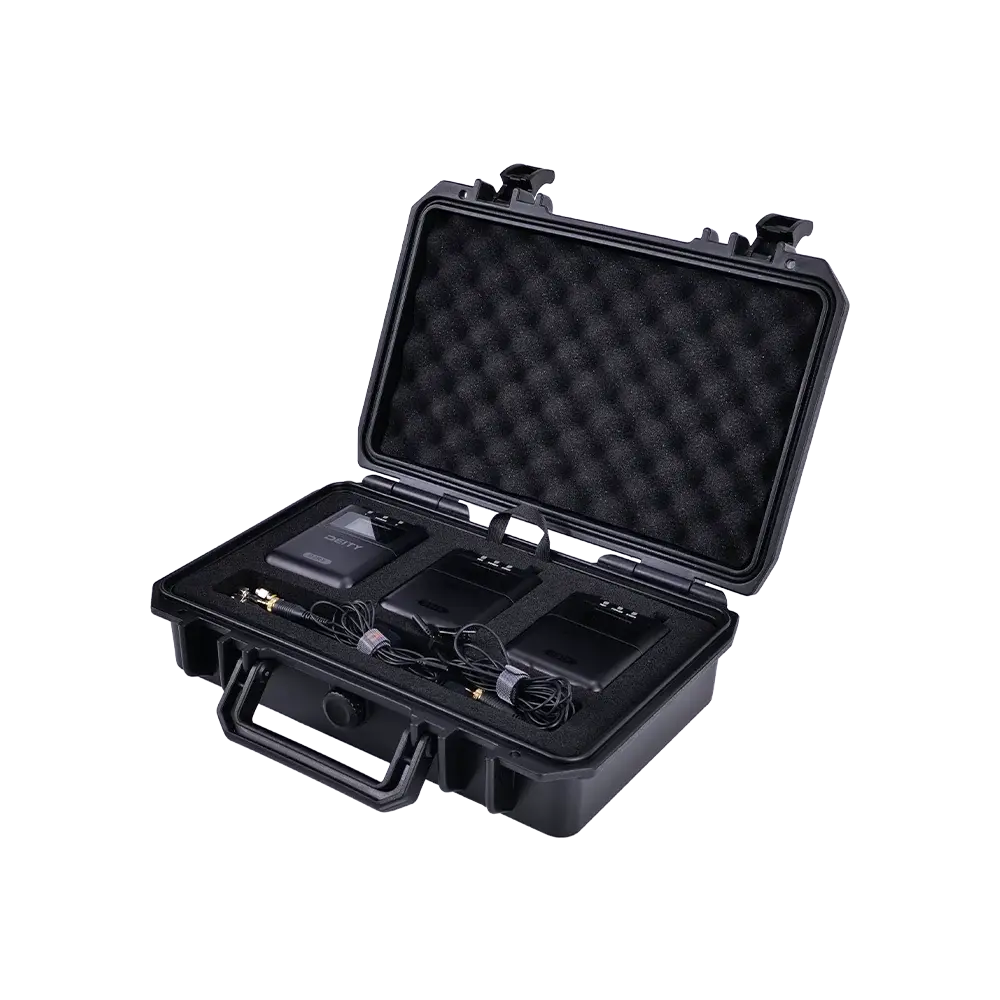

THEOS Digital Wireless Kit
Categories: Wireless Microphone Systems
The Deity Theos Digital Wireless Microphone System operates on a wide UHF spectrum (550–960 MHz), avoiding the crowded 2.4 GHz band for superior reliability. Both the transmitter and receiver support remote control via the Sidus Audio app, enabling wireless frequency coordination, gain control, and backup recording triggers. The system also supports wireless timecode sync with the Deity TC‑1, making it ideal for multi‑camera film productions.
Long Description
The Deity Theos Digital Wireless Microphone System stands out by utilizing a broad UHF spectrum instead of the congested 2.4 GHz band, offering cleaner frequencies and more stable performance. Depending on the regional kit, the system covers 550–960 MHz, giving filmmakers and sound mixers access to a wide range of usable channels.
A key advantage of the Theos system is its wireless timecode sync capability. The transmitter can be synced natively from the Deity TC‑1 timecode generator, ensuring backup WAV files align perfectly with master audio/video files in post‑production. For workflows using third‑party timecode devices, the transmitter also supports hard‑wire jam sync via 3.5mm.
The Theos system integrates seamlessly with the Sidus Audio app, enabling remote transmitter and receiver control. Users can perform frequency scanning, assign channels, coordinate multiple receivers, adjust gain staging, and trigger the backup recorder — all without physically touching the hardware. This is especially useful on busy sets or when devices are rigged in hard‑to‑reach locations.

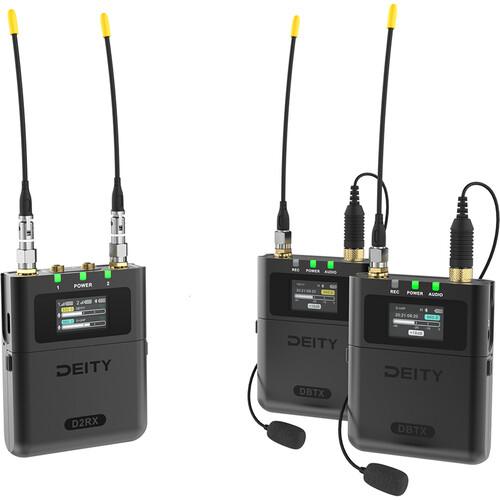

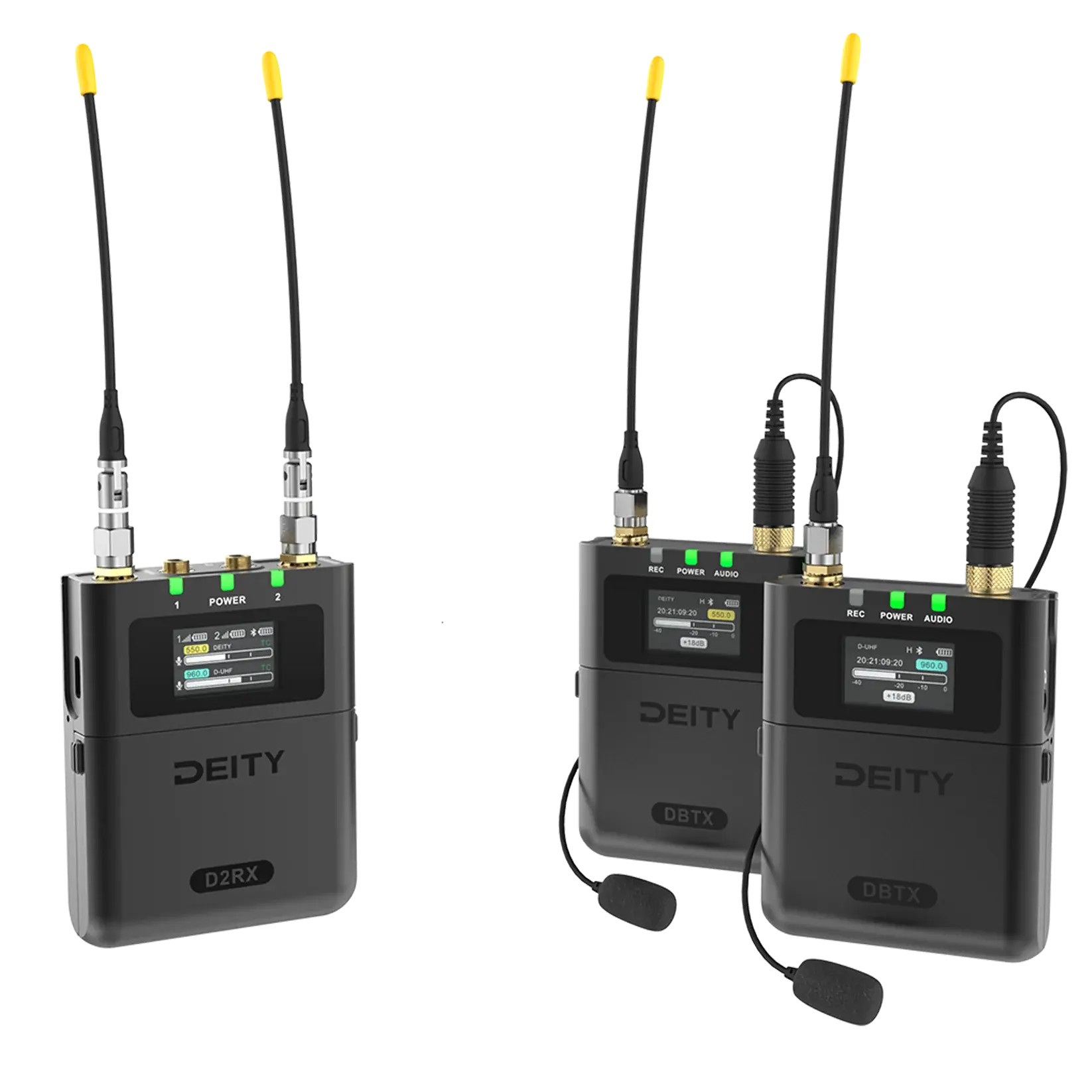

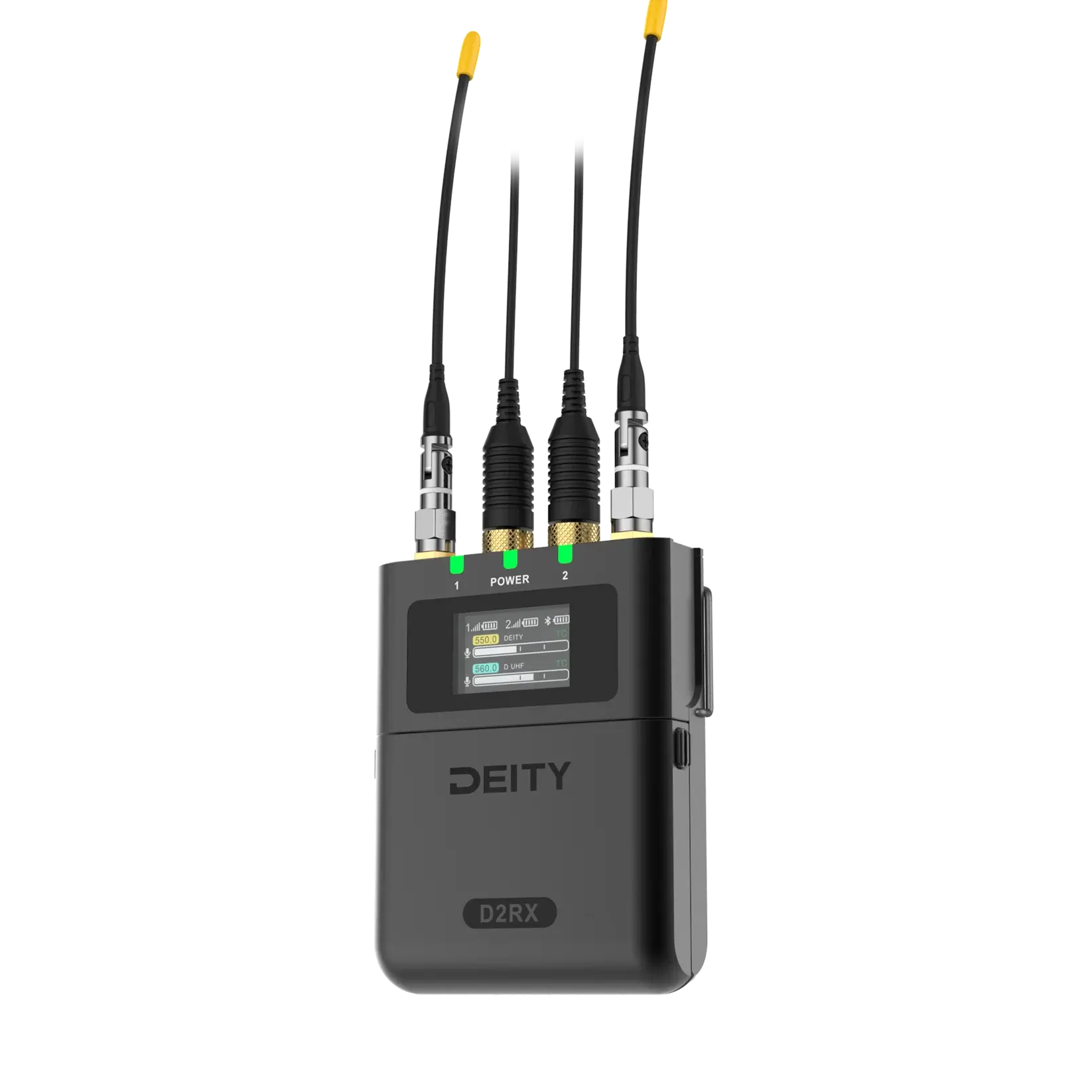

Both the DBTX transmitter and D2RX receiver feature SMA antenna ports, allowing users to swap antennas for better tuning or replace damaged ones. This also makes the system more compact during transport.

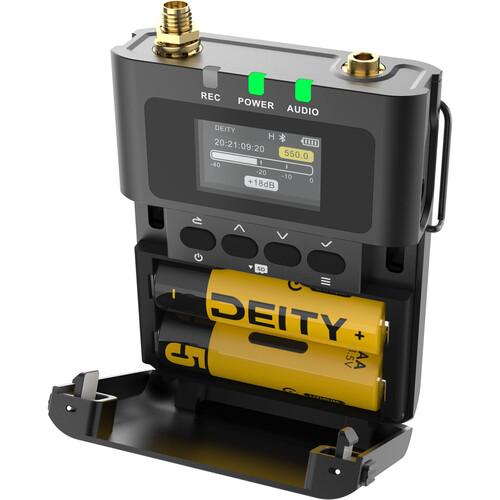

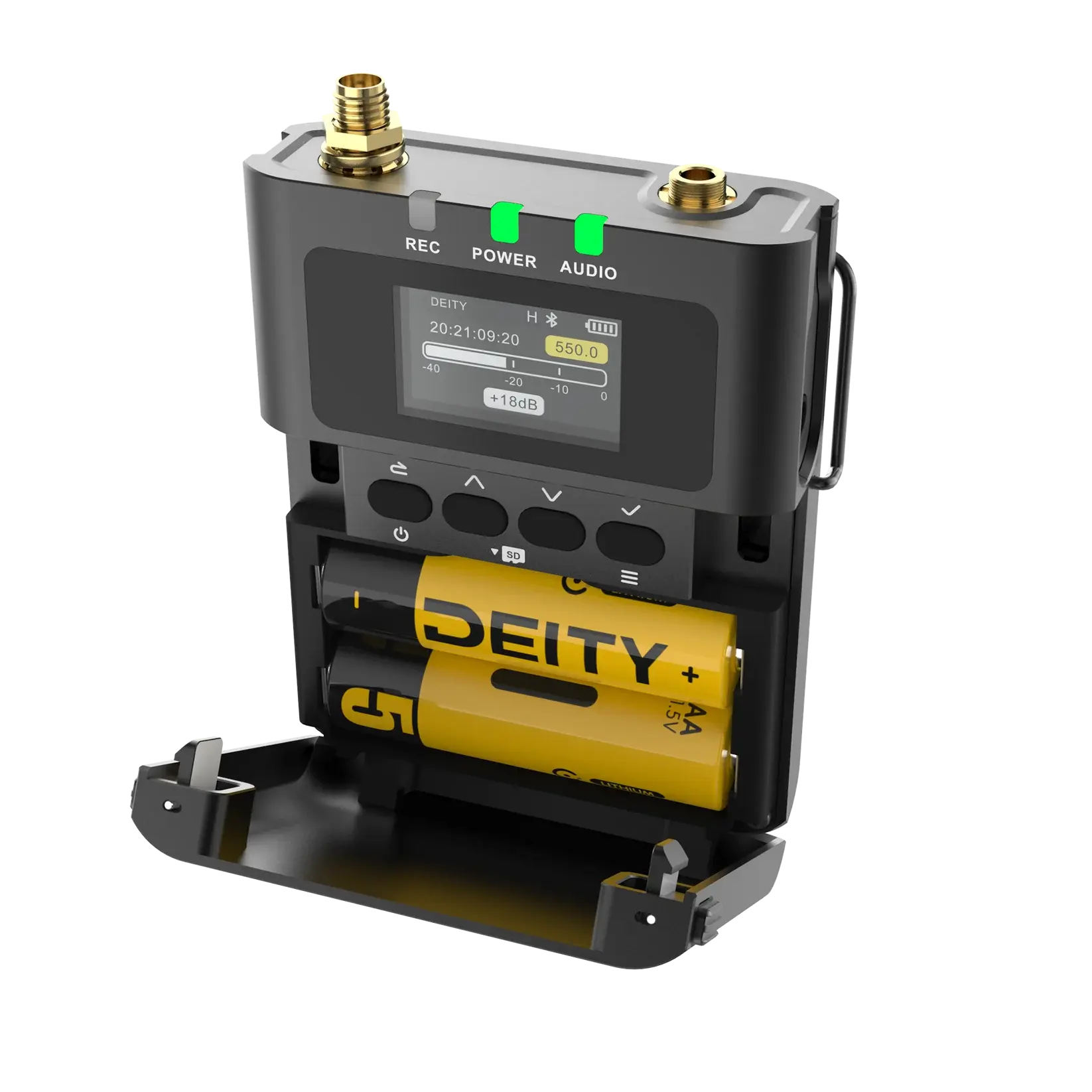

The transmitter includes a built‑in recorder (microSD up to 128GB) for redundancy, supporting true multi‑ADC 32‑bit float recording. Note: US models of the DBTX cannot transmit and record simultaneously.
With up to 100mW RF output power, ultra‑long battery life, and a 450 ft operating range, the Deity Theos system is engineered for demanding professional productions.
Category | Specification |
Wireless Technology | Digital UHF |
Diversity | Yes, True Diversity |
Max Operating Range | 300 ft / 91.4 m |
Receiver Type | 1× Camera‑Mount |
Number of Audio Channels | 2 |

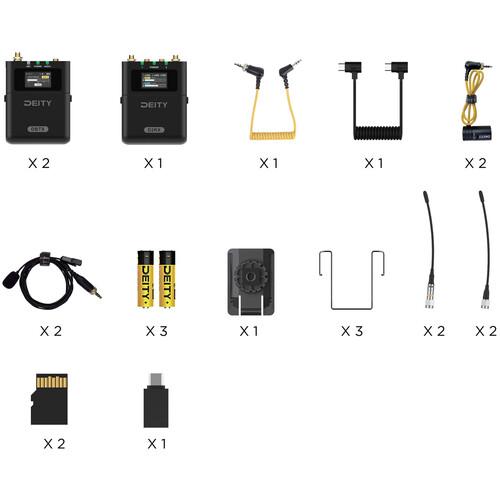

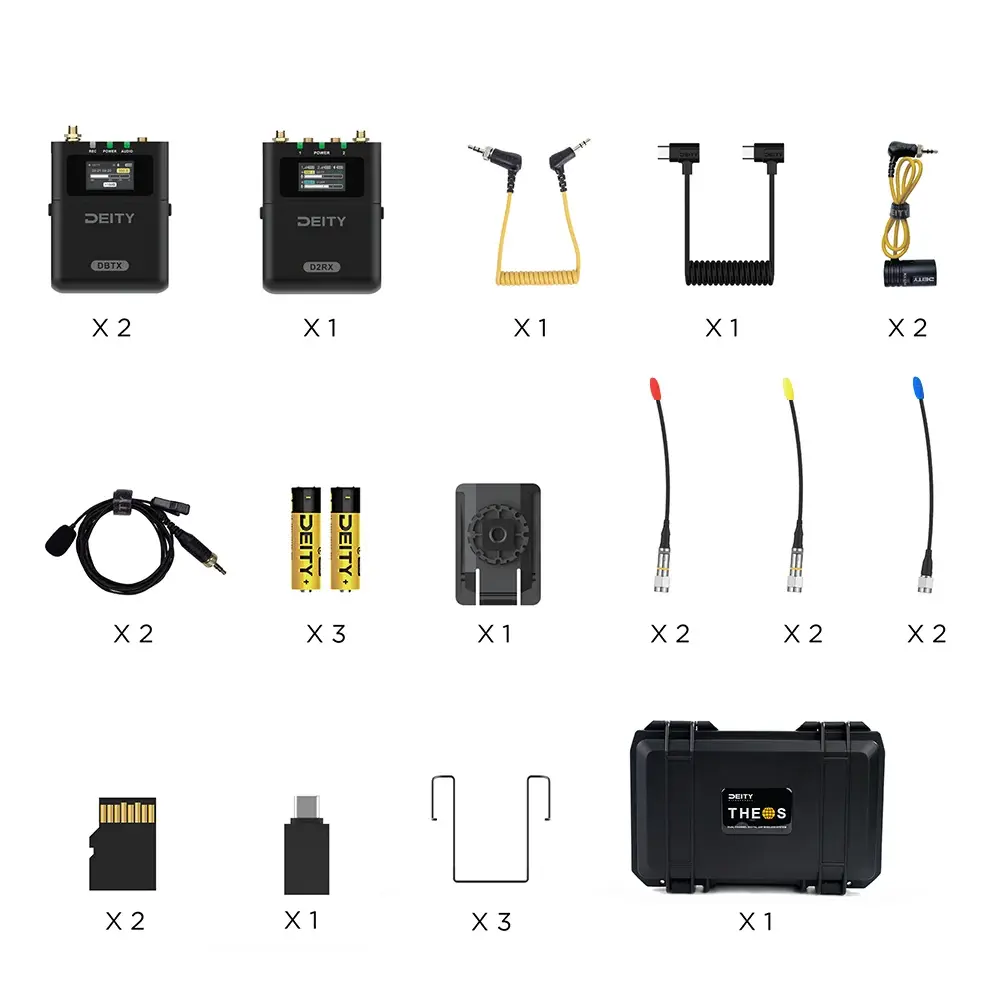

Included Transmitters | 2× Bodypack |
Microphone Type | 2× Lavalier |
Included Charging Case | No |
Category | Specification |
Wireless Technology | Digital UHF |
Diversity | Yes, True Diversity |
RF Frequency Band | 550–663 MHz |
Max Operating Range | 300 ft / 91.4 m |
Max Transmitters per Band | 84 |
Dynamic Range | 123 dB |
Latency | 6.3 ms |
Encryption | No |
Built‑In Recorder | Yes (Transmitter via microSD) |
Timecode Support | Yes |
Mobile App Compatible | Yes — Android & iOS |
Category | Specification |
Receiver Type | 1× Camera‑Mount |

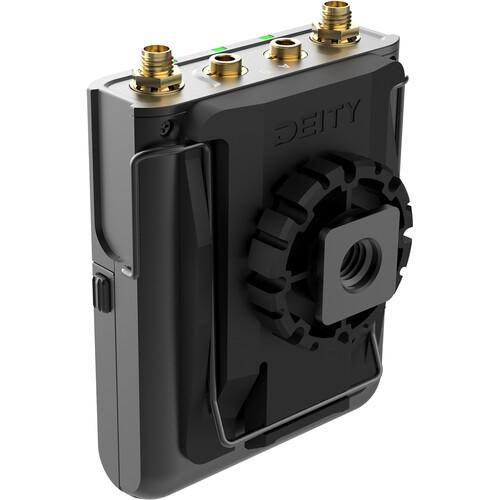

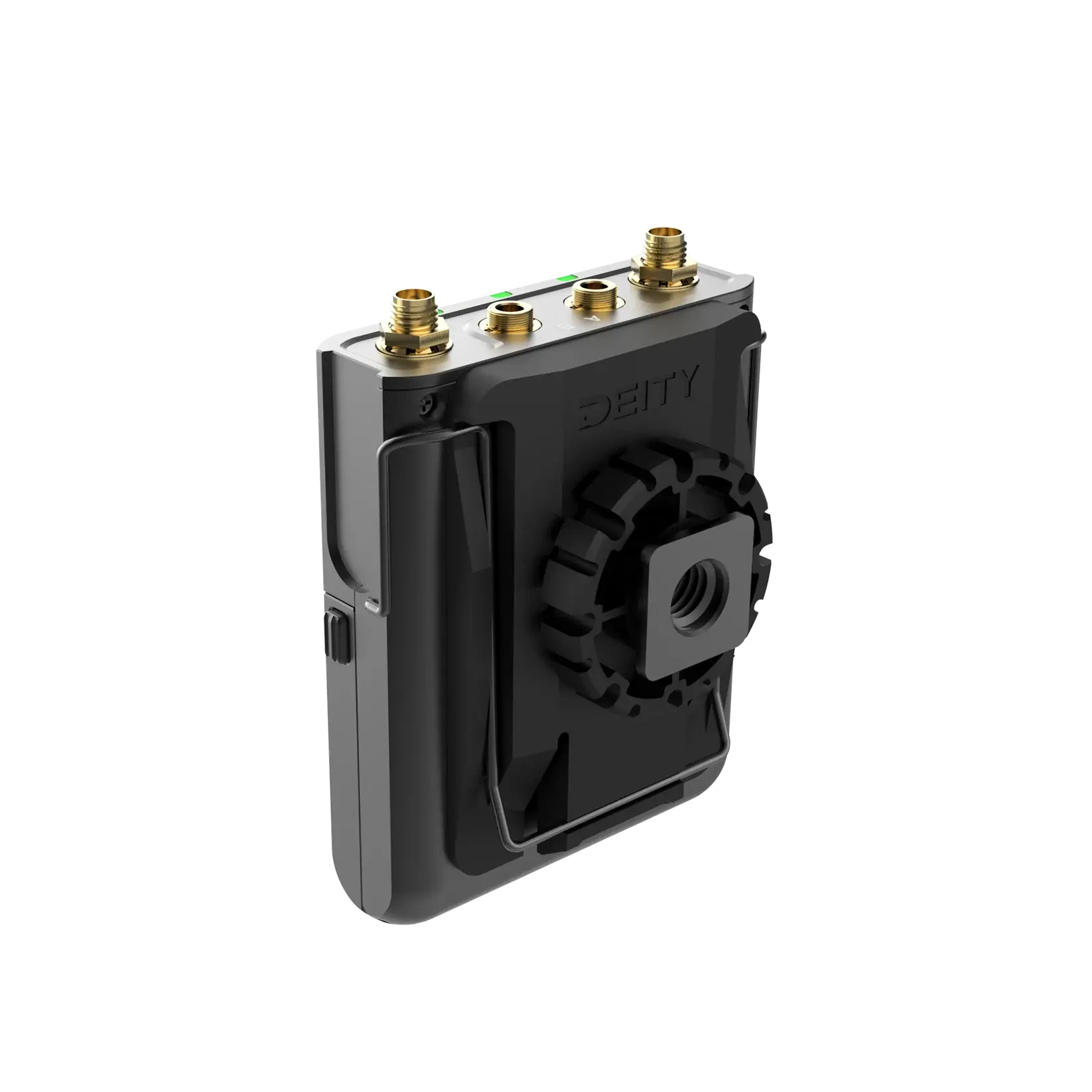

Mounting Options | Shoe‑Mount (with Included Hardware) |

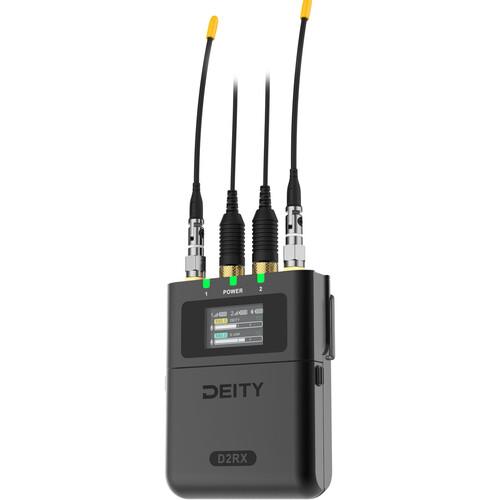

Antenna | 2× Removable SMA External (Top‑Mount) |
Number of Audio Channels | 2 |
Audio I/O | 2× 1/8" (3.5 mm) TRS Balanced/Unbalanced Output |
Network I/O | No |
Word Clock I/O | No |
USB Connectivity | 1× USB‑C Female (Audio) |
Frequency Response | 20 Hz–20 kHz |
Display | LCD (Non‑Backlit) |
Power Requirements | Battery |
Category | Specification |
Included Transmitters | 2× Bodypack |
RF Output Power | 10 / 20 / 25 / 50 / 100 mW |
Antenna | Removable External |
Input Level | Microphone / Line |
Audio I/O | 1× 1/8" (3.5 mm) Locking TRS Female Input |
Bias/Plug‑In Power | 3–5 V (No Phantom Support) |
USB I/O | 1× USB‑C (Bus Power) |
Muting | Via Control App |
Gain Range | Up to 30 dB |
Auto‑Level/Gain | No |
Frequency Response | 20 Hz–20 kHz |
Sync Method | Bluetooth |
Display | LCD (Non‑Backlit) |
Category | Specification |
Microphone Type | 2× Lavalier |
Polar Pattern | Omnidirectional |
Frequency Response | 20 Hz–20 kHz |
Maximum SPL | 110 dB |
Sensitivity | -40 dB |
Output Connector | 1× 1/8" (3.5 mm) Waterproof TRS Male |
Cable Length | 5.9 ft / 1.8 m |
Color | Black |
Category | Specification |
Receiver Battery Type | 2× AA (Included) |
Receiver Battery Life | 8 Hours (Lithium) |
Transmitter Battery Type | 2× AA |
Transmitter Battery Life | 12 Hours (Lithium) |
Included Charging Case | No |
Category | Specification |
Environmental Resistance | No |
Housing | Aluminum (Receiver & Transmitter) |
Dimensions — Receiver | 2.6 × 3.5 × 0.8 in / 66.8 × 89.5 × 20.1 mm |
Dimensions — Transmitter | 2.6 × 3.5 × 0.7 in / 65 × 88.5 × 17.8 mm |
Dimensions — Lavalier | 0.7 in / 17 mm |
Weight — Receiver | 5.2 oz / 147 g (with Antenna & Batteries) |
Weight — Transmitter | 4.4 oz / 125 g (with Antenna & Batteries) |
Weight — Microphone | Not Specified |
