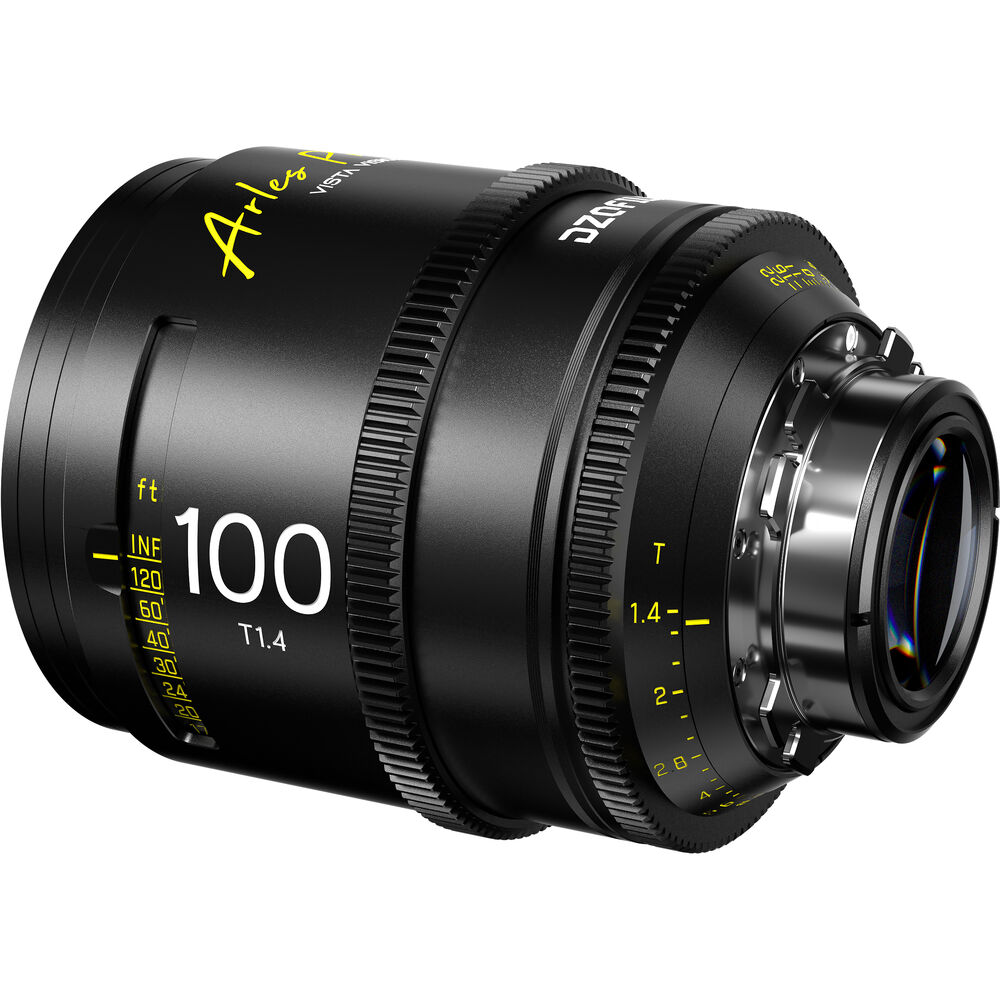

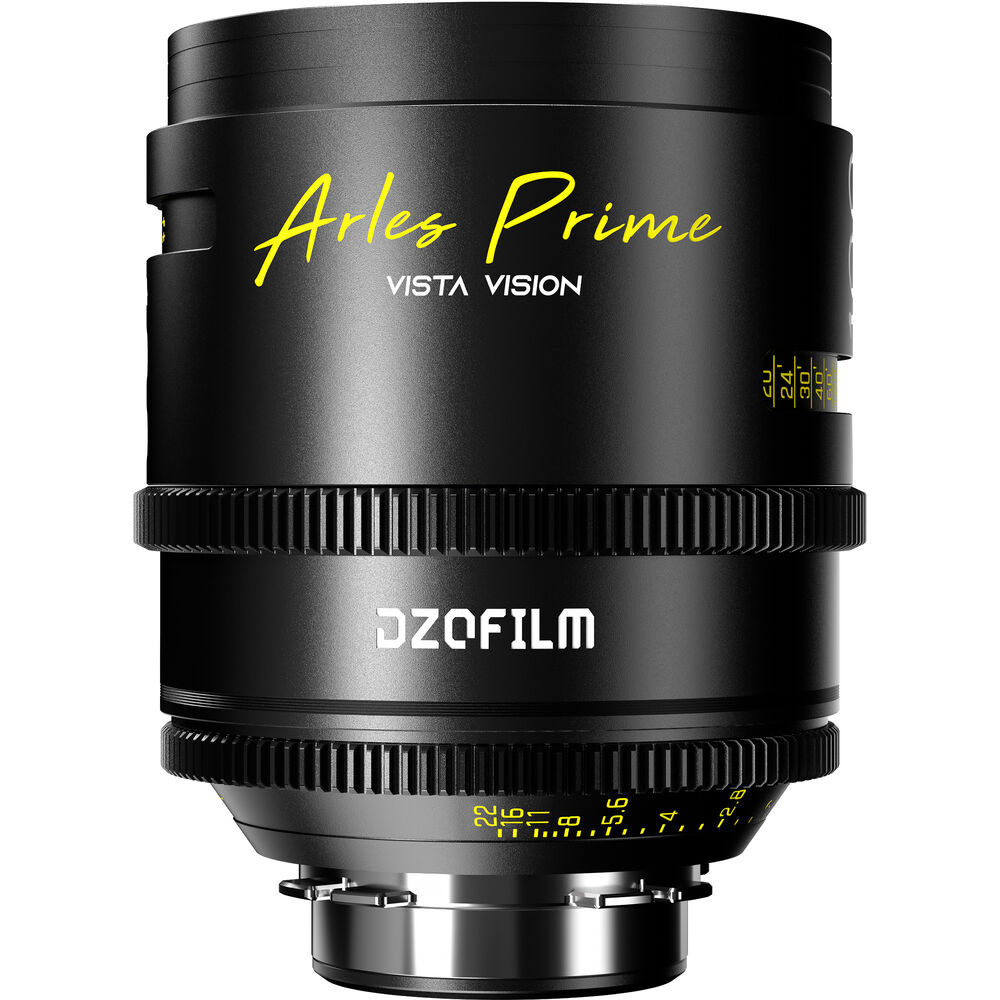

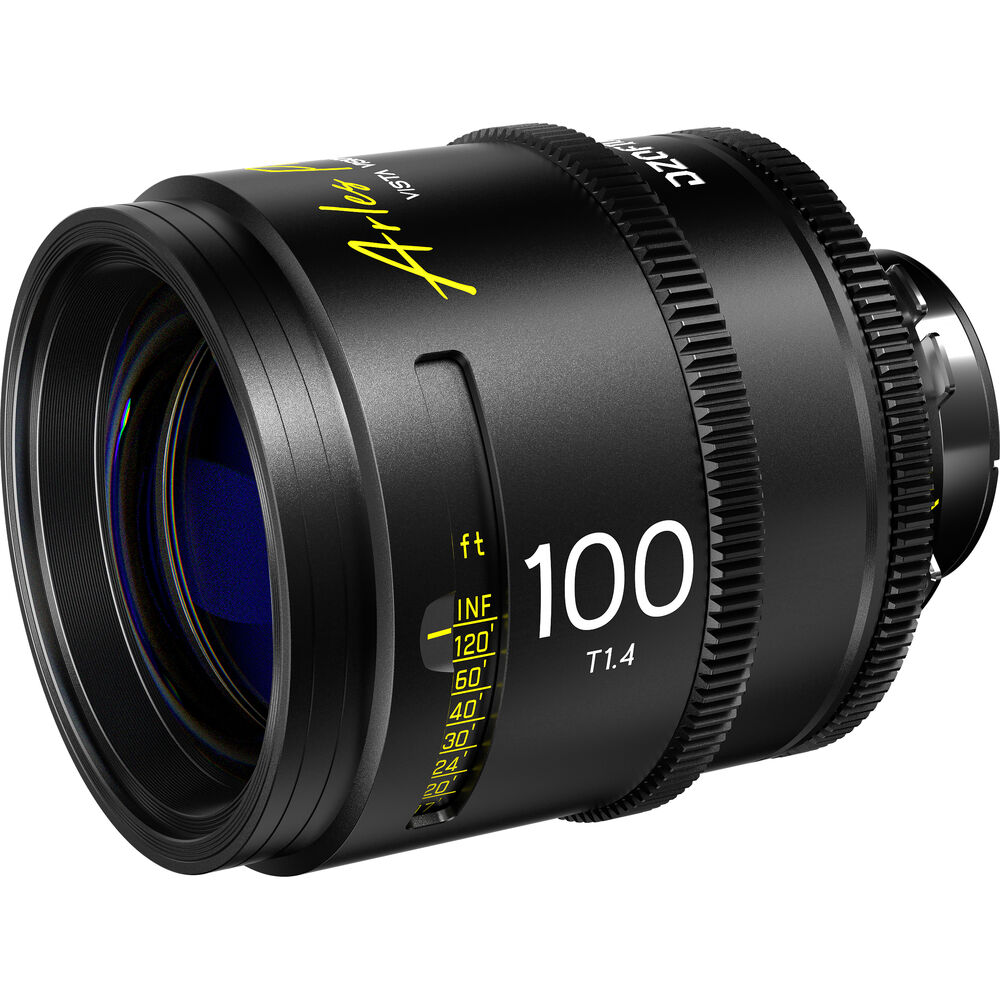

Equip your full-frame ARRI PL-mount camera with the Arles 100mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 8 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 90° for intuitive manual adjustments.
The lens features a 25.96° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance
| Maximum Aperture | T1.4 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full Frame |
| Image Circle | 46.5 mm |
| Angle of View | Full Frame Horizontal: 23.12° Vertical: 12.34° Diagonal: 25.96° |
| Focus Scales | Imperial |
| Optical Design | 13 Elements in 8 Groups |
| Filter Thread | 86 mm |
| Minimum Focus Distance | From Camera Sensor: 3.0' / 0.9 m |
| Diaphragm Blades | 16 |
| Image Stabilization | No |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD |
| Gear Rotation | Focus 270° (Manual Only) Iris 90° (Manual Only) |
| Coatings | Multi-Coating |
| Environmental Resistance | No |
| Diameter | 3.7" / 95 mm |
| Length | 4.8" / 121 mm |
| Weight | 4 lb / 1830 g |
Packaging Info
| Package Weight | 6.165 lb |
| Box Dimensions (LxWxH) | 12.9 x 7 x 6.6" |
