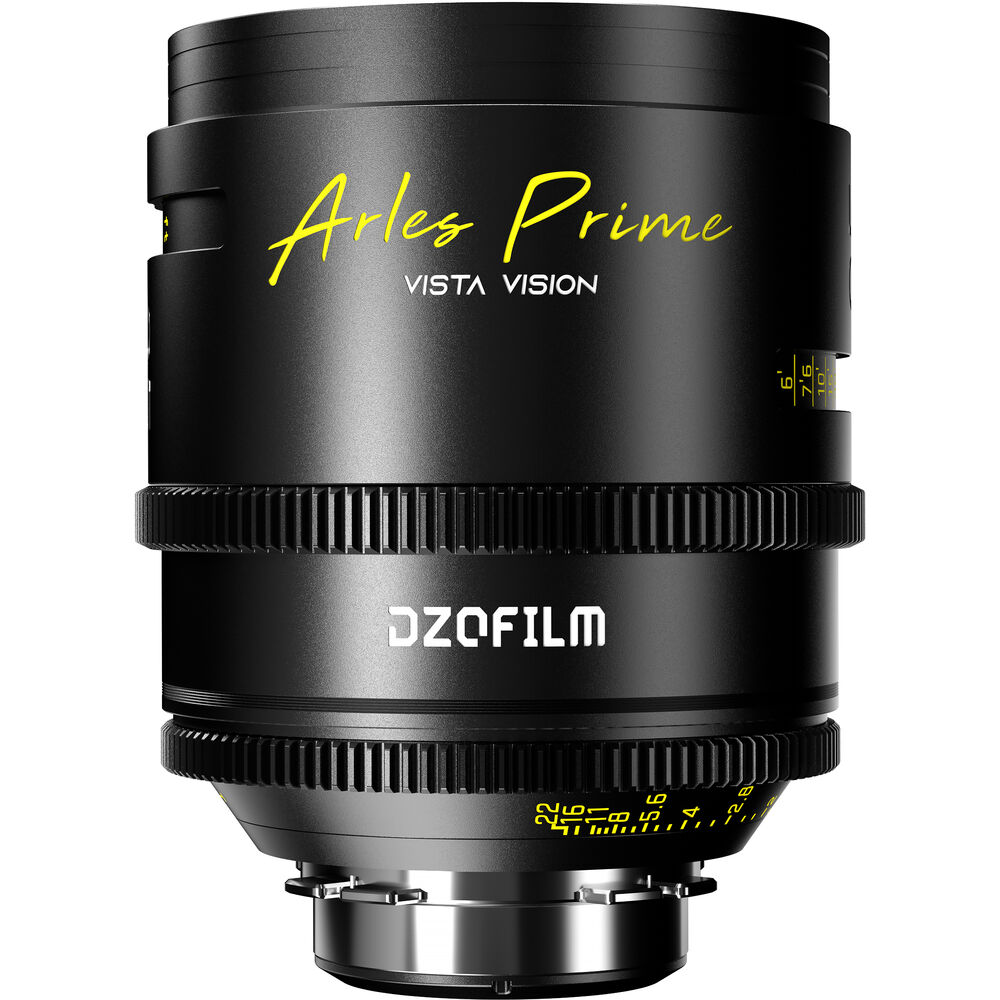

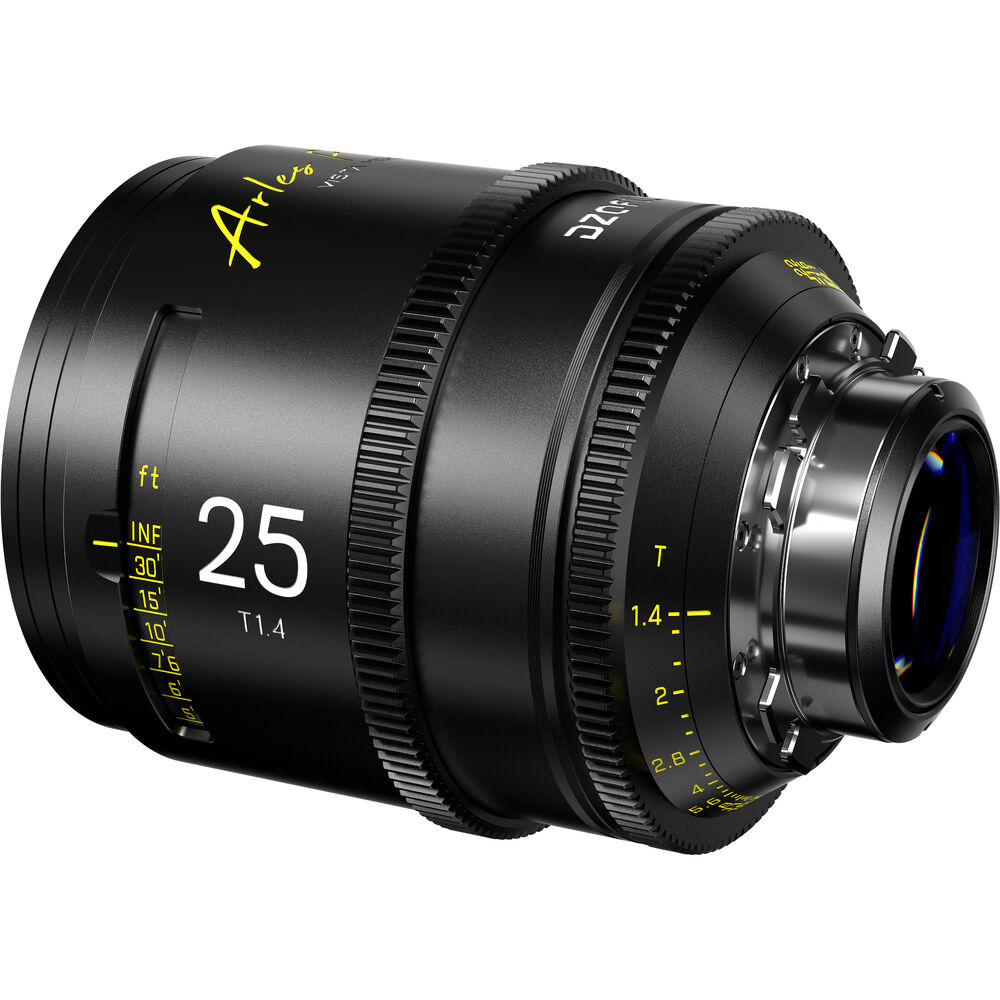

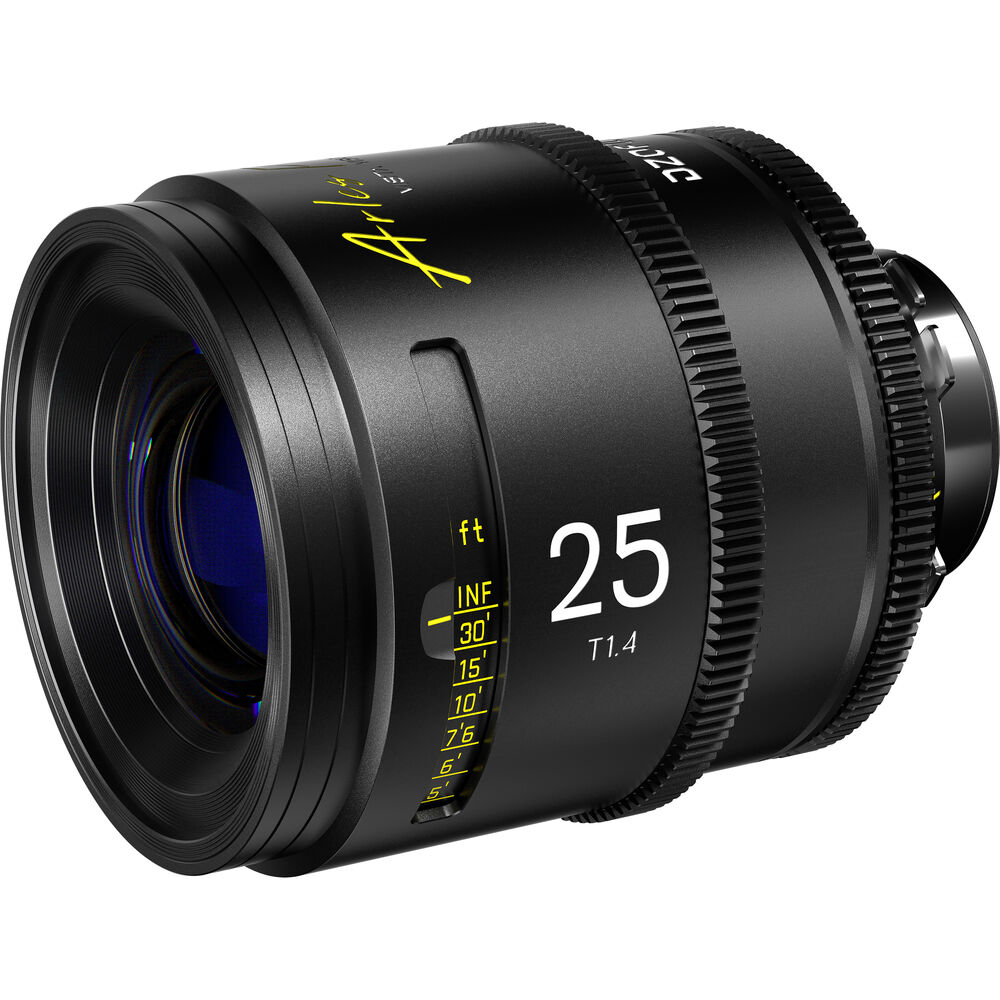

Equip your full-frame ARRI PL-mount camera with the Arles 25mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
The lens features an 87.44° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance
| Category | Spec | Details |
|---|---|---|
| Aperture | Maximum | T1.4 |
| Minimum | T22 | |
| Lens Mount | Type | ARRI PL |
| Format Coverage | Full Frame | Yes |
| Image Circle | Diameter | 46.5 mm |
| Angle of View (Full Frame) | Horizontal | 80.36° |
| Vertical | 47.28° | |
| Diagonal | 87.44° | |
| Focus Scales | Units | Imperial |
| Optical Design | Elements / Groups | 14 Elements in 12 Groups |
| Filter Thread | Size | 86 mm |
| Minimum Focus Distance | From Sensor | 13.78" / 0.35 m |
| Diaphragm Blades | Count | 16 |
| Image Stabilization | — | No |
| Gear Standard | Focus | 0.8 MOD |
| Iris | 0.8 MOD | |
| Gear Rotation | Focus | 270° (Manual Only) |
| Iris | 77° (Manual Only) | |
| Diameter | Front | 3.7" / 95 mm |
| Length | — | 4.8" / 121 mm |
| Weight | — | 3.3 lb / 1490 g |
