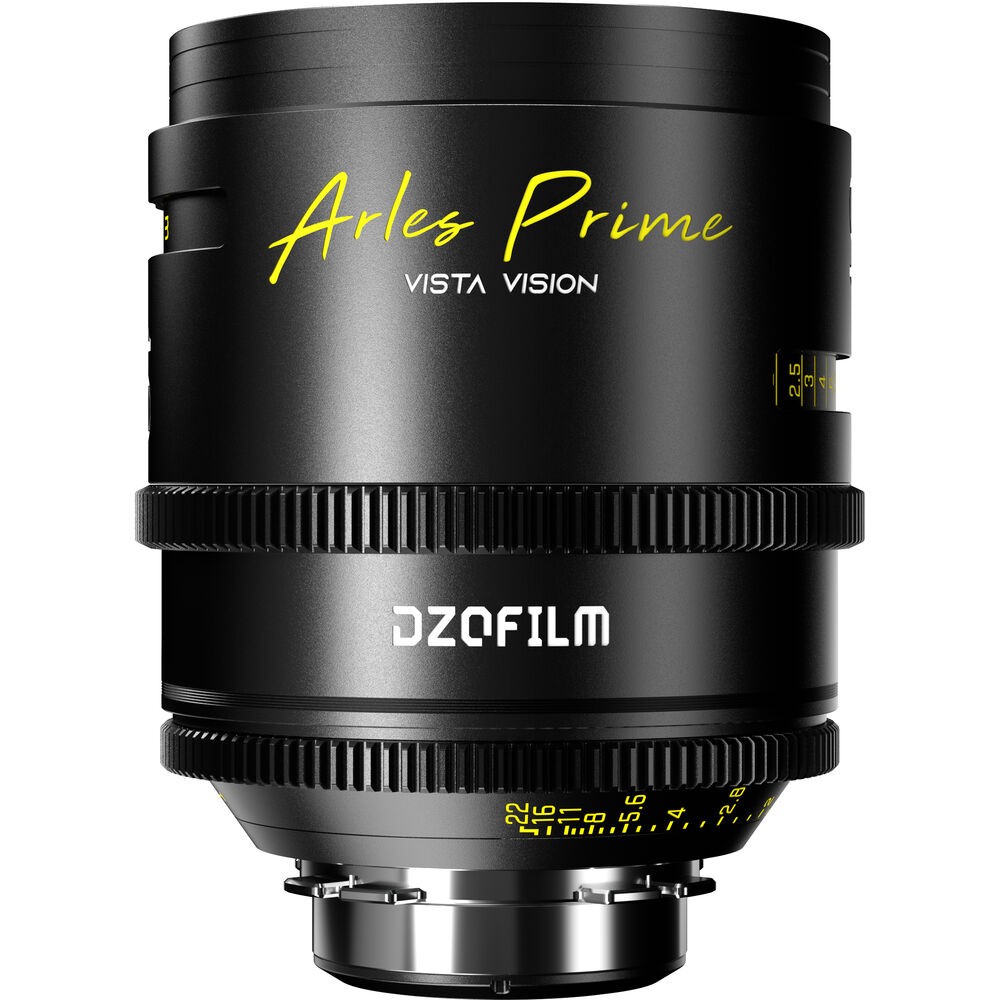

Capture a cinematic, painterly aesthetic with the DZOFilm Arles 14mm T1.4 FF/VV Prime Cine Lens, designed for full‑frame ARRI PL‑mount cameras. The ultra‑bright T1.4 aperture delivers excellent low‑light performance and a strikingly shallow depth of field, while the 16‑blade iris produces soft, natural bokeh with smooth, organic transitions. Manual operation is precise and intuitive thanks to 270° focus rotation and 77° iris rotation.
Built for large‑format imaging, the Arles 14mm covers a 50mm image circle, ensuring clean, high‑quality results across full‑frame and VistaVision sensors. Wide‑open, the lens delivers a painterly softness with lower contrast and subtly swirling peripheral bokeh.
Floating elements minimize focus breathing, while aspherical and low‑dispersion optics reduce aberrations and enhance low‑light clarity. The interchangeable PL mount supports optional EF conversion, KOOP magnetic rear filters, and various cine adapters.
A unified 95mm front diameter and M86 filter thread ensure compatibility with matte boxes and filters. With 0.8 MOD cine gears and consistent mechanical design across the Arles series, switching focal lengths is fast, smooth, and production‑friendly.
| Category | Spec | Details |
|---|---|---|
| Aperture | Maximum | T1.4 |
| Minimum | T22 | |
| Lens Mount | Type | ARRI PL |
| Interchangeable Mount | — | Yes |
| Format Coverage | Full‑Frame | Yes |
| Image Circle | Diameter | 46.5 mm |
| Angle of View (Full Frame) | Diagonal | 56° |
| Horizontal | 31° | |
| Vertical | 61° | |
| Focus Scales | Units | Imperial |
| Optical Design | Elements / Groups | 13 Elements in 11 Groups |
| Filter Thread | Size | 86 mm |
| Minimum Focus Distance | From Sensor | 1.3' / 40 cm |
| Aperture Blades | Count | 16 |
| Image Stabilization | — | No |
| Gear Standard | Type | 0.8 MOD |
| Gear Rotation | Focus | 270° (Manual Only) |
| Iris | 77° (Manual Only) | |
| Electronic Communication | — | No |
| Diameter | Front | 3.7" / 95 mm |
| Length | — | 4.8" / 121 mm |
| Weight | — | 3.59 lb / 1.63 kg |
