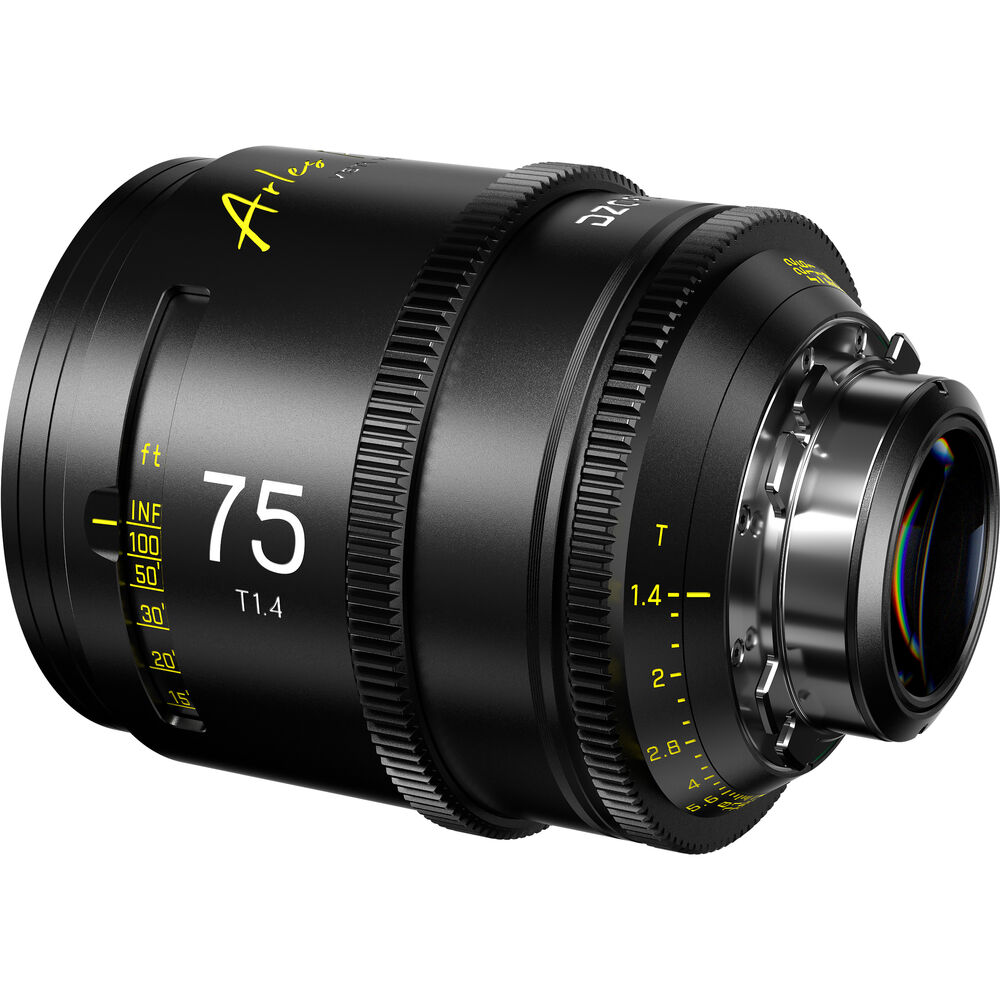

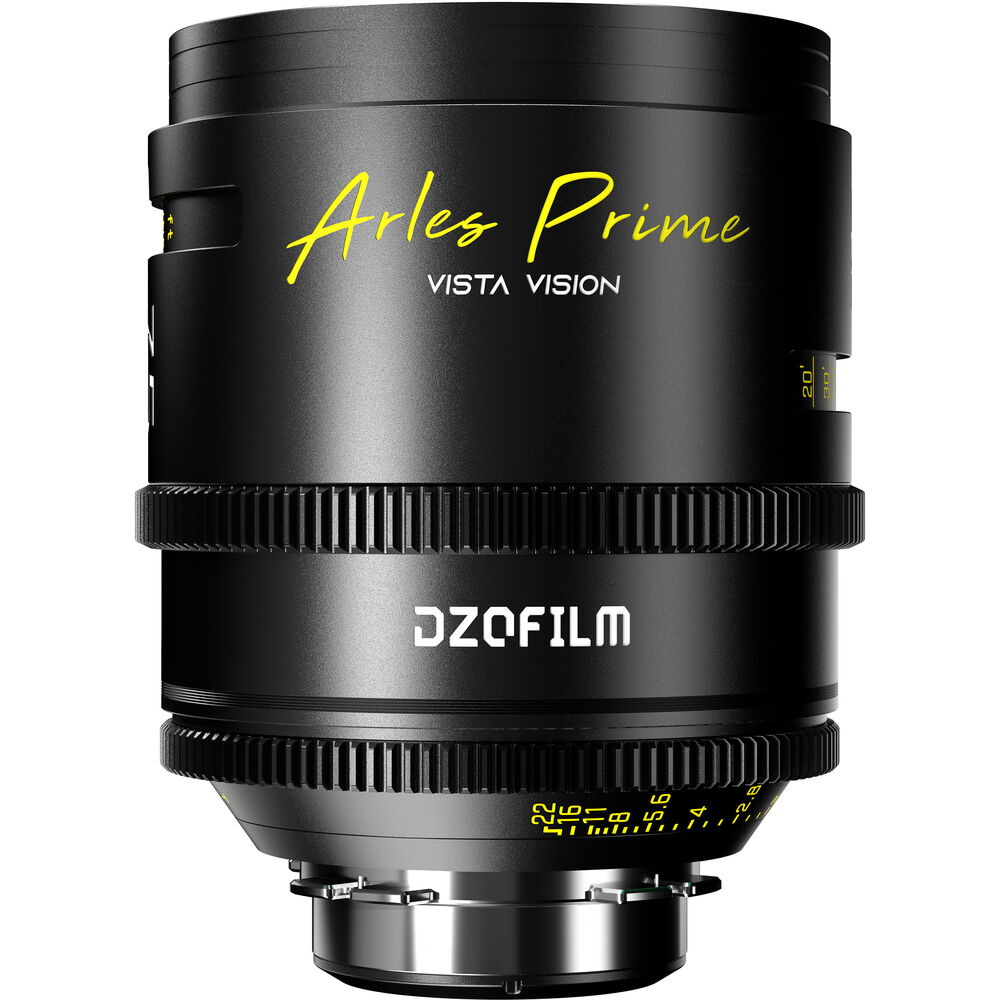

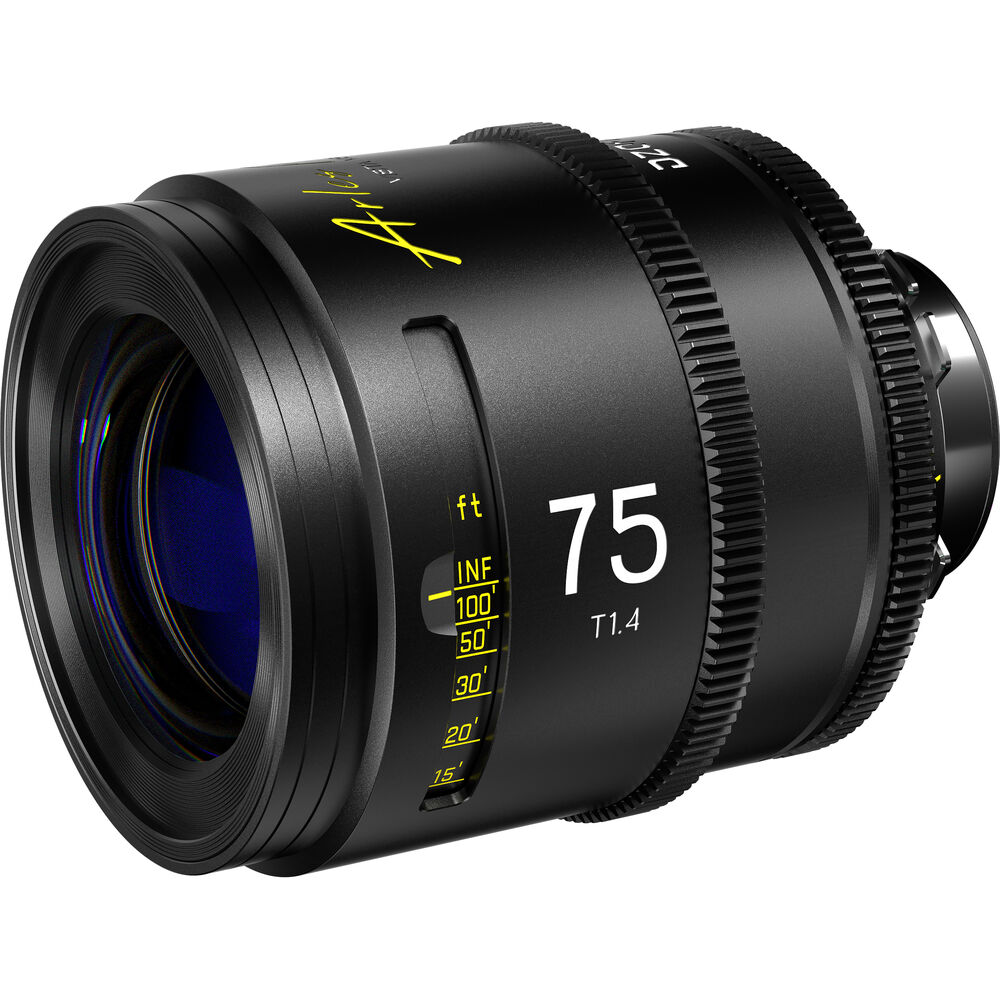

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Brand: DZOFILM

MFR: DZO-SAP75IPL

7,902.00 ﾹ

  • Covers Full Frame Sensors
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris
  • 95mm Outside Diameter
  • 13 Elements in 9 Groups
  • 270° Focus Rotation, 82° Iris Rotation
  • 2.5' Minimum Focus Distance
  • Cinema-Standard Gearing
Not in stock - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
Quantity

Categories: Digital Cine Lenses , Digital Cine Lenses

Equip your full-frame ARRI PL-mount camera with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 82° for intuitive manual adjustments.

The lens features a 34.1° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outside diameter, 16-blade aperture
  • Optical construction of 13 elements in 9 groups
  • 270° focus rotation, 82° iris rotation
  • 2.5' minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

Maximum ApertureT1.4
Minimum ApertureT22
Lens MountARRI PL
Lens Format CoverageFull Frame
Image Circle46.5 mm
Angle of ViewFull Frame
Horizontal: 30.45°
Vertical: 16.35°
Diagonal: 34.1°
Focus ScalesImperial
Optical Design13 Elements in 9 Groups
Filter Thread86 mm
Minimum Focus DistanceFrom Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades16
Image StabilizationNo
Gear StandardFocus: 0.8 MOD
Iris: 0.8 MOD
Gear RotationFocus 270° (Manual Only)
Iris 82° (Manual Only)
CoatingsMulti-Coating
Environmental ResistanceNo
Diameter3.7" / 95 mm
Length4.8" / 121 mm
Weight3.7 lb / 1662 g

Packaging Info

Package Weight5.795 lb
Box Dimensions (LxWxH)12.9 x 6.7 x 6.6"
