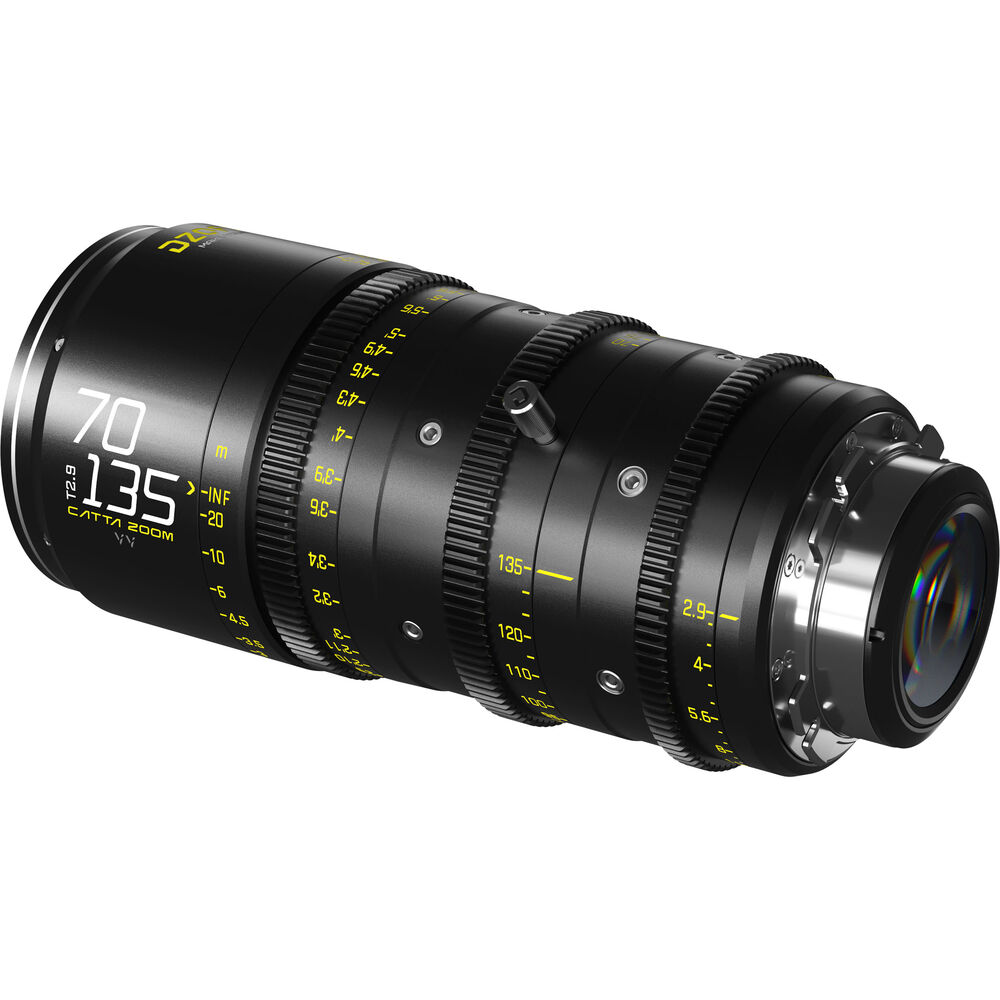

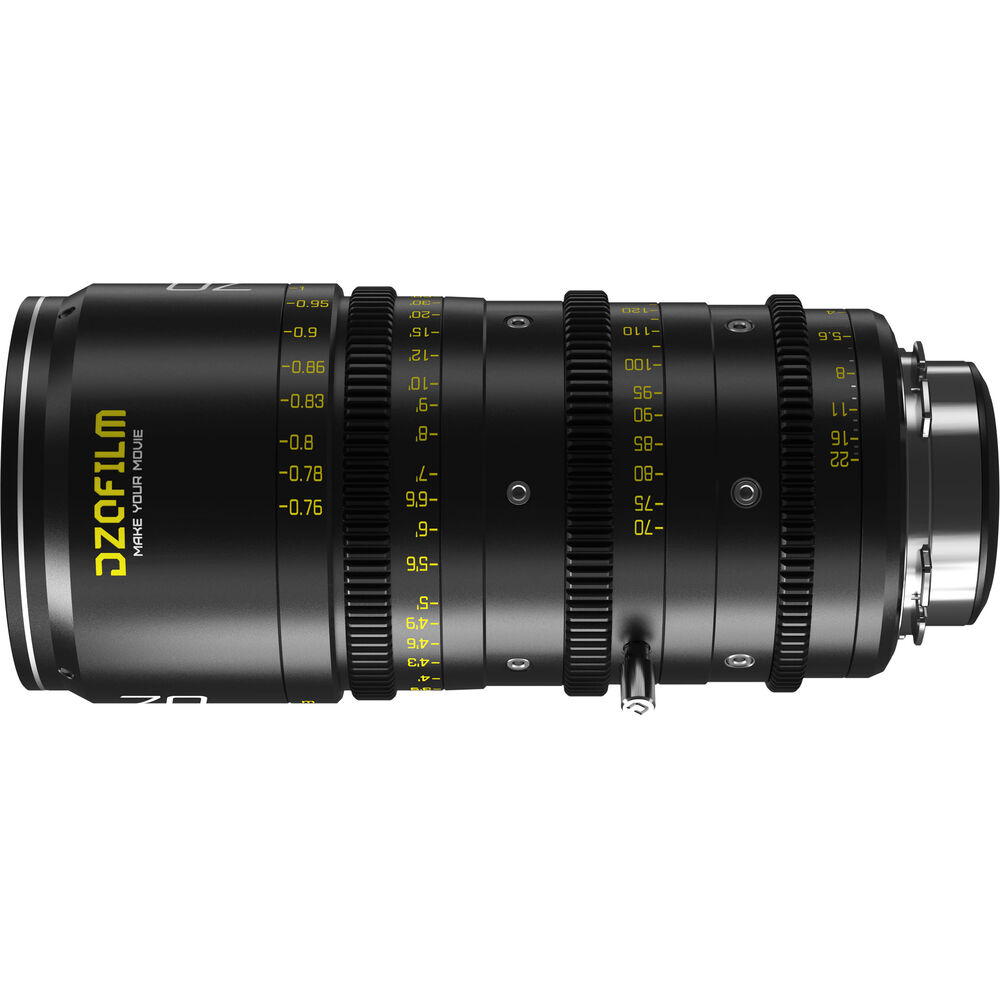

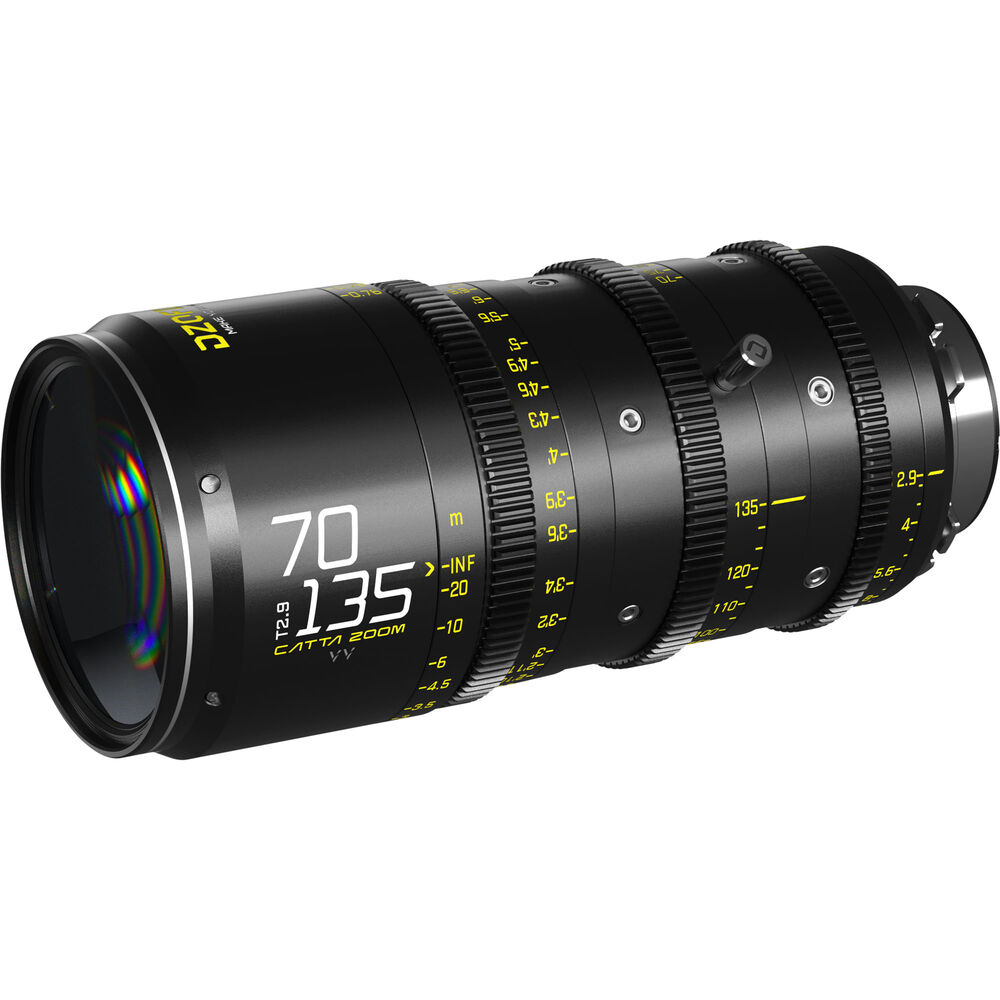

he DZOFilm Catta Cine Zoom delivers smooth, cinema‑grade performance with a design that maintains precise focus while zooming, ensuring consistent, high‑quality imagery throughout the entire range. With a bright T2.9–T22 aperture, a 16‑blade iris for creamy bokeh, and a close‑focus distance of 29.9", the Catta series provides accurate color reproduction and a natural focus/defocus transition ideal for narrative, commercial, and documentary work.

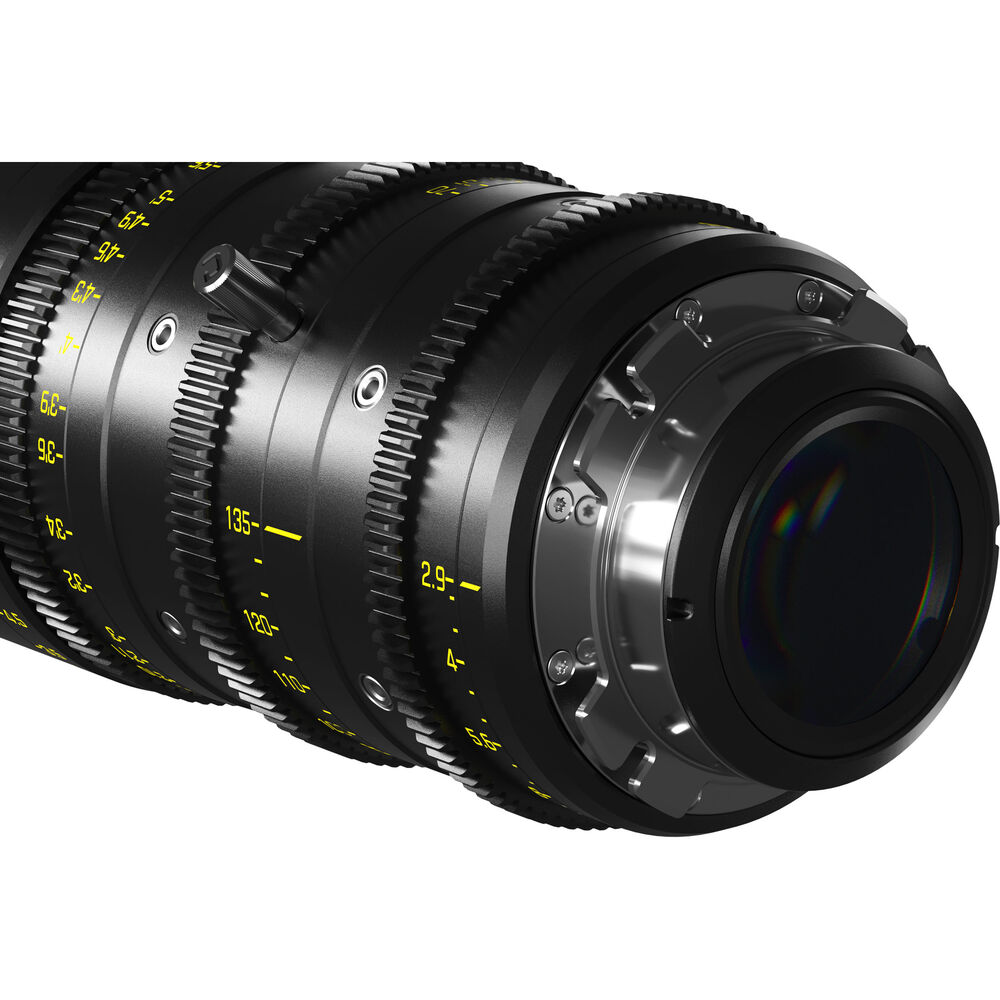

True to its cine construction, the lens features long‑throw mechanics including 240° focus rotation, 100° zoom rotation, and 80° iris rotation for precise manual control. It ships with a native ARRI PL mount, and an EF mount is included for easy conversion using the supplied screw and shim set.

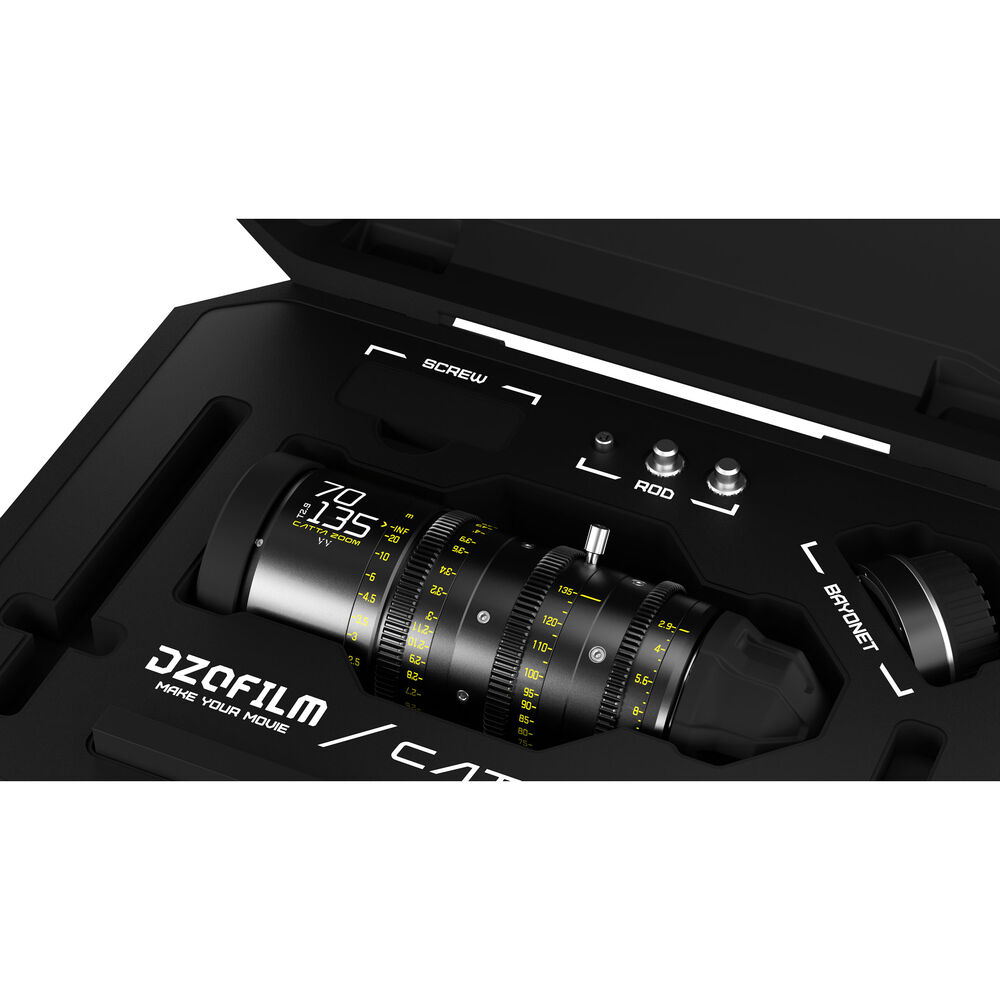

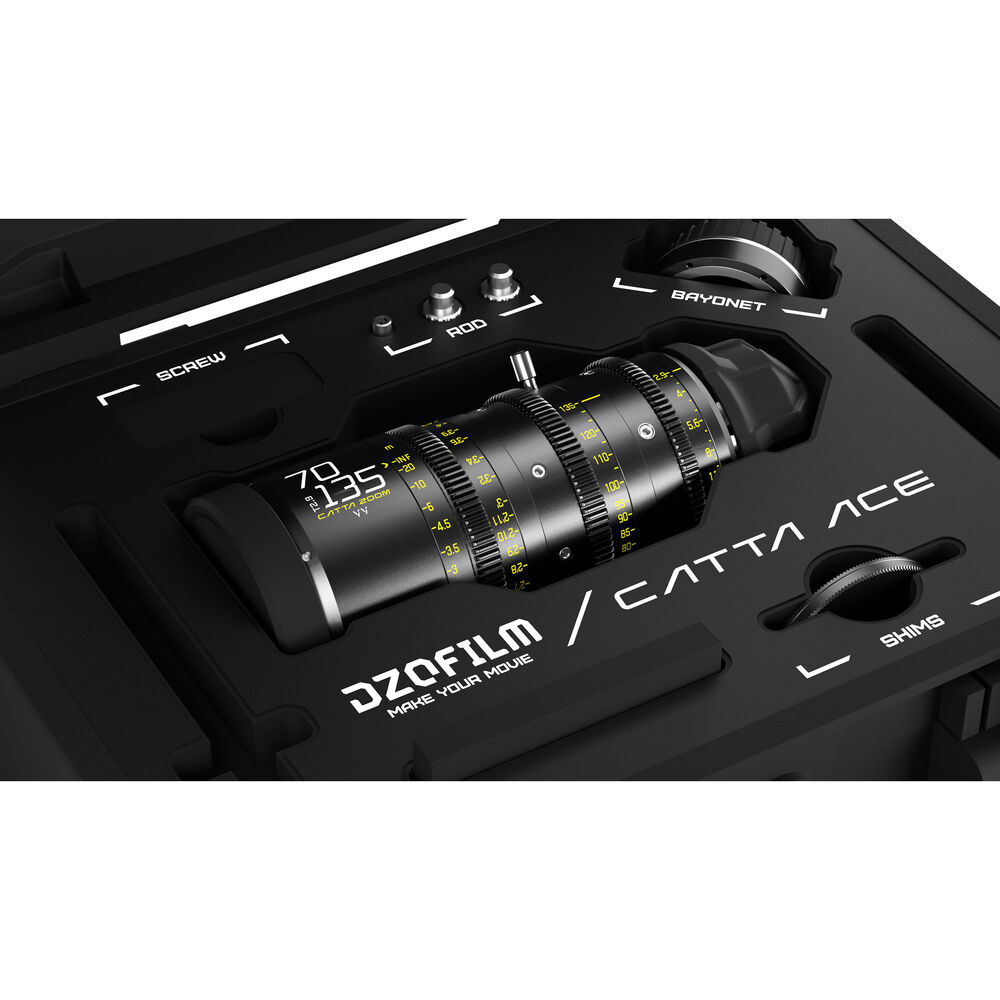

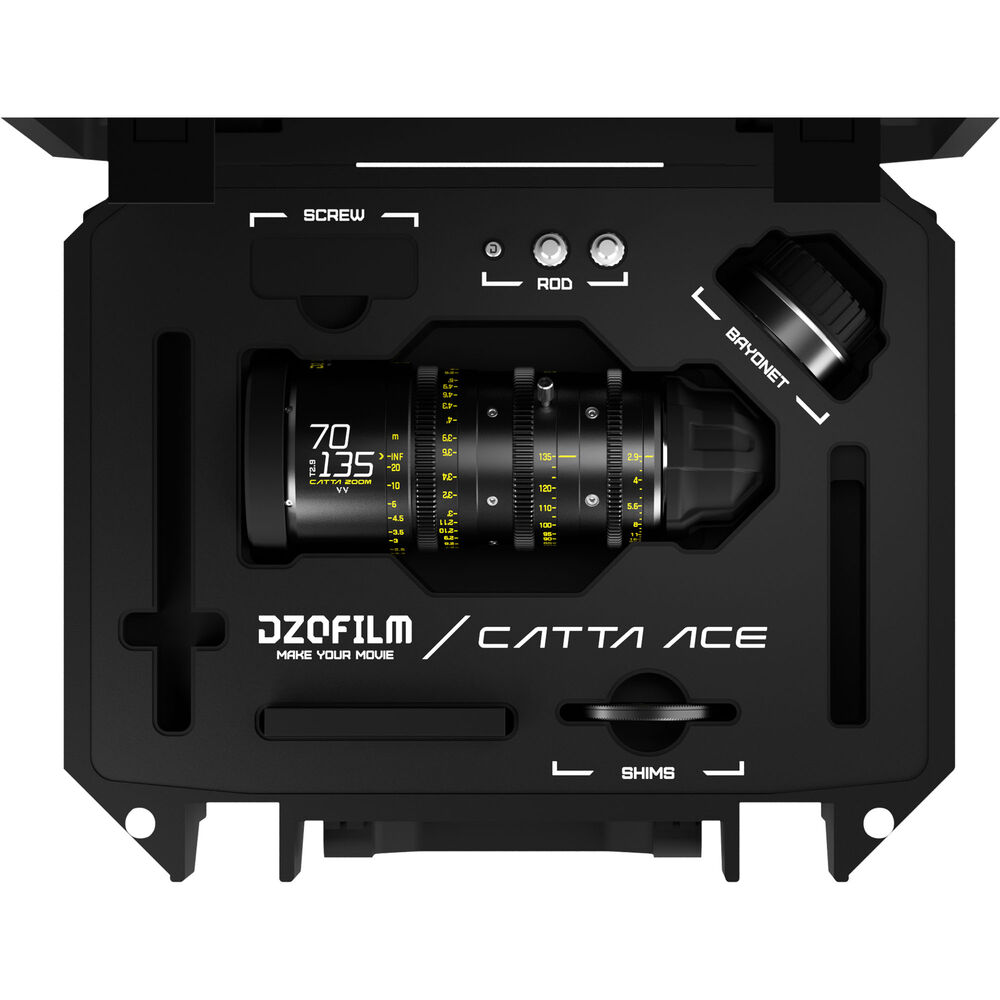

The Catta zoom comes fully equipped with essential accessories: front and rear caps, support base, support rod, and a filter bracket, making it production‑ready straight out of the box.
| Category | Spec | Details |
|---|---|---|
| Focal Length | Range | 70–135mm |
| Lens Mount | Type | ARRI PL |
| Format Coverage | Full Frame | Yes |
| Image Circle | Diameter | 43.5 mm |
| Aperture | Maximum | T2.9 |
| Minimum | T22 | |
| Minimum Focus Distance | From Lens | 29.9" / 76 cm |
| Optical Design | Elements / Groups | 17 Elements in 11 Groups |
| Diaphragm Blades | Count | 16 |
| Gear MOD & Pitch | Focus | 0.8 MOD / 32 Pitch |
| Iris | 0.8 MOD / 32 Pitch | |
| Zoom | 0.8 MOD / 32 Pitch | |
| Front Diameter | — | 80 mm |
| Filter Thread | — | 77 mm |
| Focus Scales | Units | Imperial |
| Focus Rotation | — | 240° |
| Iris Rotation | — | 80° |
| Zoom Rotation | — | 100° |
| Zoom Ratio | — | 1.9x |
| Electronic Communication | — | No |
| Image Stabilization | — | No |
