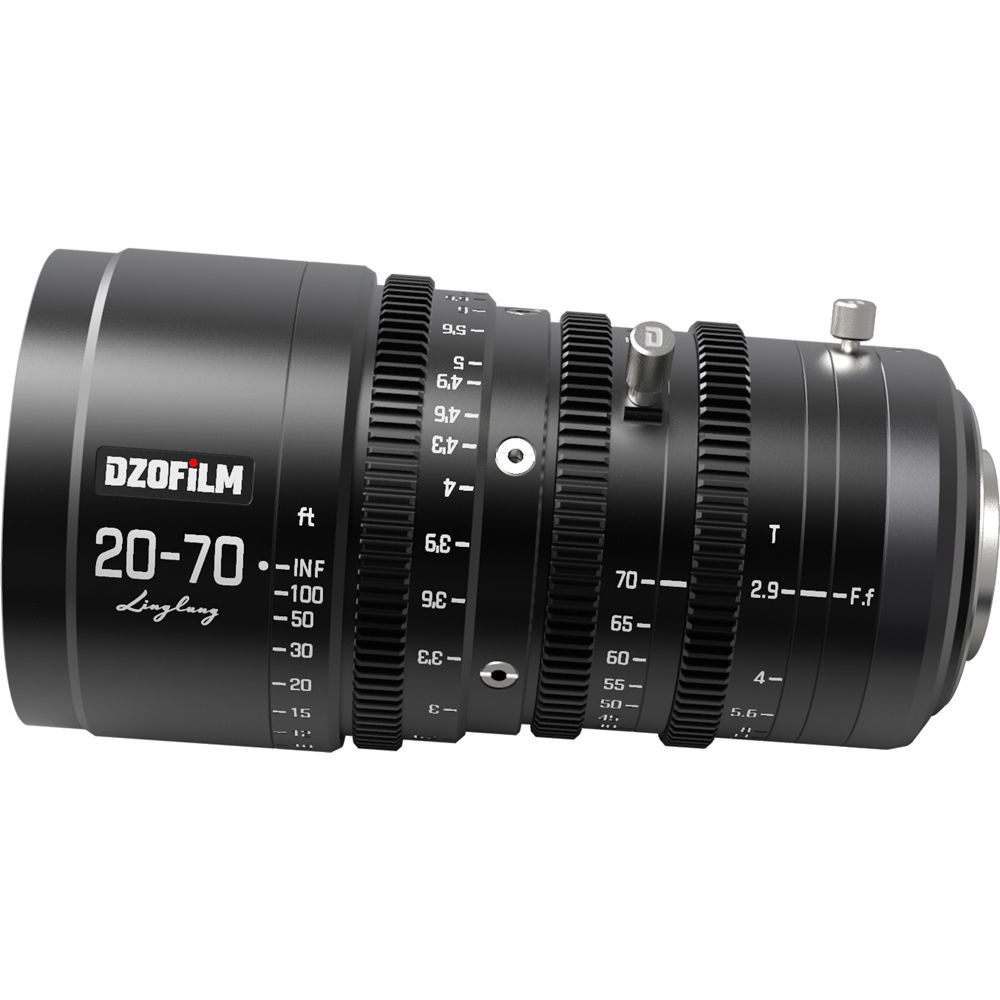

DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens
DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens

DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens

Brand: DZOFILM

MFR: DZO-6226611A

5,880.00 ﾹ

  • Maintains Focus Throughout Zoom Range
  • Near-Zero Breathing
  • 12-Blade Iris
  • 31" Minimum Focus Distance
  • 270° Focus Rotation with 26 Focus Marks
  • Imperial Focus Markings
  • Back Focus Adjustment
  • 80mm Front Diameter
  • All-Metal Housing
Not in stock - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
Quantity

Categories: Digital Cine Lenses , Digital Cine Lenses

A parfocal cine lens, the DZO 20-70mm T2.9 MFT Lensfrom DZOFilm is designed to maintain focus as you zoom in or out. Although parfocal lenses can have some small focus changes, the amount is minimal and you can keep overall focus consistency throughout the zoom range.

In addition to this, the lens has near-zero breathing, ensuring consistency in framing, and it provides rounded highlights thanks to a 12-blade iris. True to its cine design, it has a focus rotation of 270° and offers 26 focus marks along the range. Also, back focus adjustment of 19.2mm in small increments allows you to efficiently switch this lens between different MFT-mount cameras. The lens has a durable all-metal housing.

Key Features

  • Maintains focus throughout zoom range
  • Minimal breathing
  • 12-blade iris; rounded highlights
  • T2.9-T22 aperture
  • 270° focus rotation with 26 focus marks
  • 31" minimum focus distance
  • Imperial focus markings
  • All-metal housing
  • Back focus adjustment for use with different cameras (19.2mm adjustable by +/-0.3mm adjustment)
  • 100° zoom rotation
  • 70° iris rotation
  • 80mm front diameter
  • 0.8 MOD

DZOFilm LingLung 20-70mm T2.9 Specs

Focal Length20 to 70mm
Lens MountMicro Four Thirds
Lens Format CoverageMFT
Image Circle21.6 mm
Maximum ApertureT2.9
Minimum ApertureT22
Diagonal Angle of ViewMFT: 57.6 to 17.9°
Horizontal Angle of ViewMFT: 47.5 to 14.3°
Minimum Focus DistanceFrom : 31.1" / 79 cm
Diaphragm Blades12
Gear MOD & PitchFocus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter80 mm
Filter Thread77 mm
Focus ScalesImperial
Focus Rotation270°
Iris Rotation70°
Zoom Rotation100°
Zoom Ratio3.5x
Image StabilizationNo
Length6.2" / 157.5 mm
Weight2.43 lb / 1.1 kg
