DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)

DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)

Brand: DZOFILM

MFR: DZO-X1828BCS

SKU: SF-2443-Q5RN

19,037.00 ﾹ   22,396.00 ﾹ

  • Full Frame | T8 Maximum Aperture
  • Detachable 90 and 360° Probe Zoom
  • 0.8 MOD FIZ Gears, 300° Focus Rotation
  • 2.1:1 Image Magnification, Macro Views
  • Versatile 73 to 100° Angle of View
  • Minimum Focus: 0.24", 16.3" Length
  • <1.2" Front Outside Diameter
  • ED and HRI Elements Reduce Aberrations
  • Waterproof, Dustproof, and Anti-Fog
  • Focus in Meters, Includes Hard Case

Items Included

  • DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
  • 90° Tube
  • 360° Tube
  • 15mm Follow Focus Rod with Brackets
  • Front Cap
  • Rear Cap
  • Large O-Ring Quick Release Clamp (1.8")
  • 2 x Small O-Ring Quick Release Clamp (1.2")
  • 2 x Shim Set
  • UV Filter (#1)
  • UV Filter (#2)

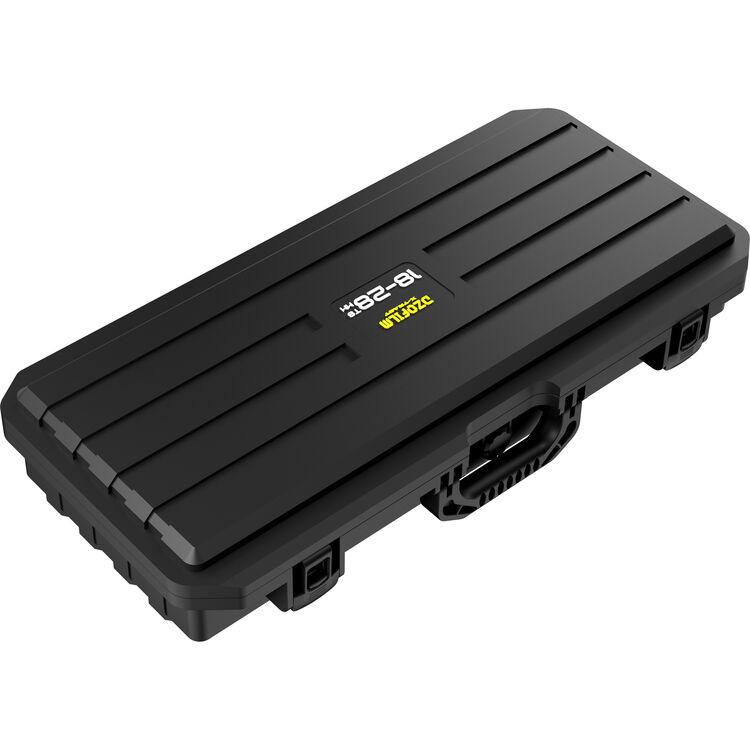

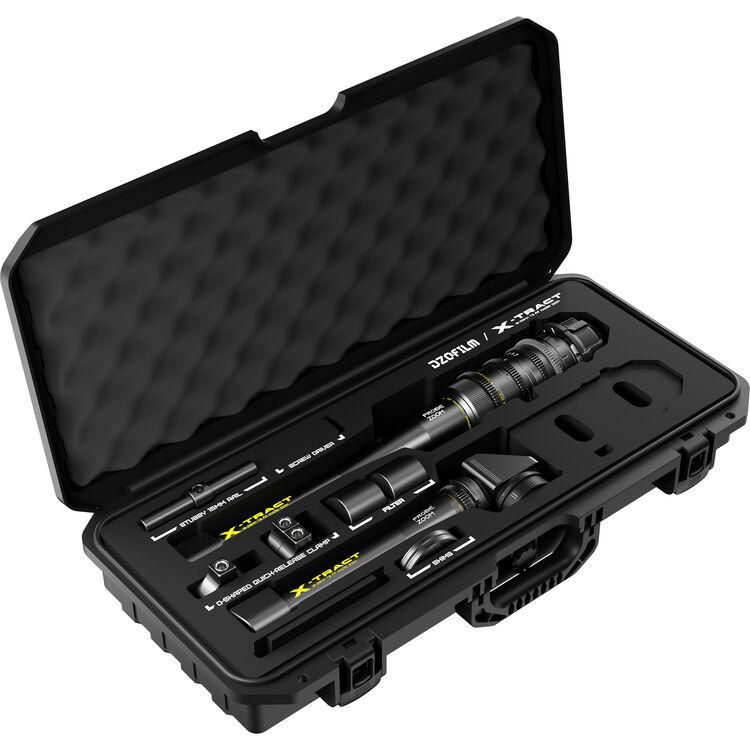

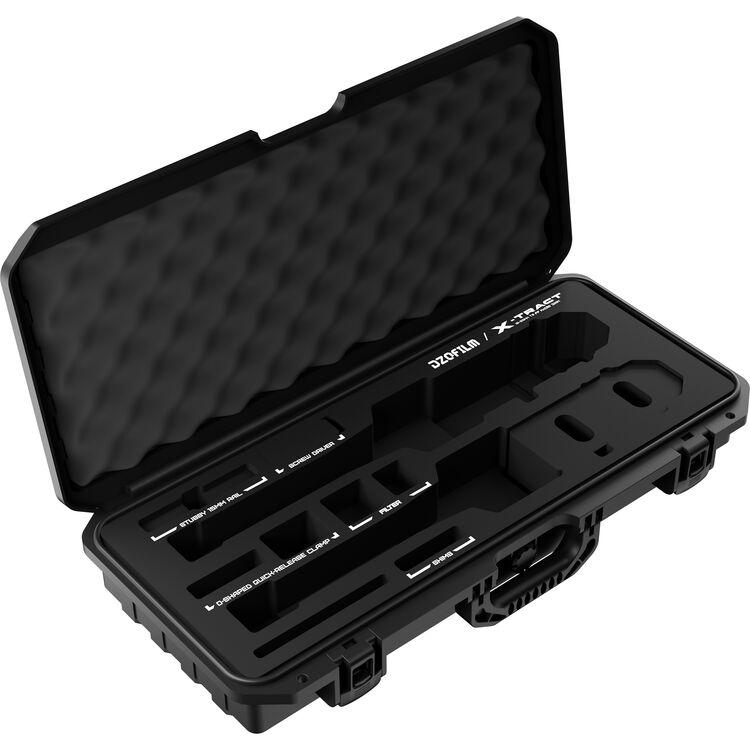

  • Hard Case with Foam Inlay
Not in stock - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
Quantity

Categories: Lenses & Lens Accessories

Detachable 90 and 360° Probe Zoom Macro Lens
Offering a 100 to 73° field of view, the ARRI PL-mount, X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens from DZOFilm brings innovative close-up capture to your productions. This compact probe lens includes detachable 90 and 360° tubes for maximum flexibility. It measures just 16.3" in length and has a front outside diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance.
Wide 18-28mm Zoom
  • This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
  • The wide 100 to 73° field of view supports flexible capture.
90 and 360° View Tubes
  • This probe includes detachable 90 and 360° options that provide the most creative positioning.
  • A rotating ring enables even greater flexibility.
Macro/Close Capture in Narrow Spaces
  • Craft creative macro shots using a maximum magnification ratio of 2.1:1.
  • The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
  • The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.
Low-Distortion, High-Resolution Optics
  • The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
  • Advanced coatings help minimize flaring and reflections.
  • Incorporates seven HRI (high-refractive-index) lens elements, producing a more natural color.
  • ±2% distortion control across the zoom range.
T8 Maximum Aperture
  • The relatively fast T8 maximum aperture is maintained throughout the zoom range.
  • Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.
Waterproof, Cine-Style Design
  • Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
  • A lightweight yet rear-heavy design helps reduce vibrations while shooting.
  • The focus barrel offers a wide 300° rotation for precise focus pulls.
  • Waterproof and dustproof, this probe lens is also scratch and fog resistant.
  • Focus distances are marked in meters.

Focal Length
18 to 28mm
Maximum Aperture
T8
Lens Mount
ARRI PL
Lens Format Coverage
Full-Frame (43.2 mm Image Circle)
Filter Thread
No
Image Stabilization
No
Electronic Communication
No
Focal Length
18 to 28mm
Maximum Aperture
T8
Minimum Aperture
T22
Lens Mount
ARRI PL
Lens Format Coverage
Full-Frame (43.2 mm Image Circle)
Angle of View
Horizontal: 100 to 73°
Focus Scales
Metric
Filter Thread
No
Zoom Ratio
1.56x
Minimum Focus Distance
From Camera Sensor: 1.5' / 45.7 cm
Magnification
2.1:1 Macro Reproduction Ratio
0.47x Magnification
Aperture/Iris Blades
10
Image Stabilization
No
Lens Mounting
1x 1/4"-20 (via Included Support Foot)
3x 3/8"-16 (via Included Support Foot)
Gear Standard
Focus, Iris, Zoom: 0.8 MOD
Gear Rotation
Focus: 300°
Electronic Communication
No
Built-In Light
No
Probe Offset
No
Diameter
Front: 1.2" / 30.5 mm
Length
16.3" / 414 mm
Weight
2.38 lb / 1.08 kg

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom Macro Lens with Case (90 & 360°, ARRI PL, Metric)
  • 90° Tube
  • 360° Tube
  • 15mm Follow Focus Rod with Brackets
  • Front Cap
  • Rear Cap
  • Large O-Ring Quick Release Clamp (1.8")
  • 2 x Small O-Ring Quick Release Clamp (1.2")
  • 2 x Shim Set
  • UV Filter (#1)
  • UV Filter (#2)
  • Hard Case with Foam Inlay

Related products

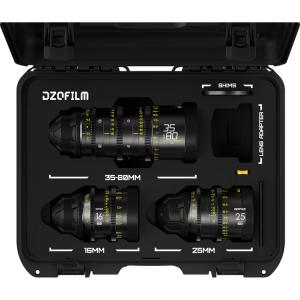

DZOFilm Y24 Educational Catta Ace 35-80mm + VESPID 16 & 25mm Lens Kit (ARRI PL)
