Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)

Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)

Brand: LITEPANELS

MFR: 940-2201

SKU: SF-2443-3BBR

Price Available Upon Request
  • For Studio & Film/TV Production
  • Output: 23,000 Lux at 9.8' (5600K)
  • 2700 to 10,000K CCT; RGB Control
  • 25 x 12.6" Panel; AC/DC Operation
  • CRI 95 | TLCI 97
  • Fan Cooled with Quiet Mode
  • On-Board Controls
  • Optional DMX, Wireless DMX, Bluetooth
  • Includes Standard Yoke
  • Includes Soft and Dome Diffusers

Items Included

  • Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, UK Power Cord)
  • Standard Yoke
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: All LED Lights

Providing high-quality cinematic lighting features in a lightweight and easy-to-use fixture, this Gemini 2x1 Hard RGB LED Panel from Litepanels offers a high light output of 23,000 lux at 9.8' with a color temperature range of 2700 to 10,000K, enabling this panel to accurately match both tungsten and daylight light sources. The 0 to 100% flicker-free dimming lets you adjust the light output, and full plus/minus green color correction control and a high CRI of 95 ensure color accuracy. Full RGBWW color gamut mixing and a built-in HSI color mode enable full-color control over hue, saturation, and intensity. The panel provides a gel mode with up to 300 different colored gels to choose from, and an effects mode with 11 unique special effects. All of these adjustments can be made locally on the unit or remotely via a console, and there's even the option of wireless operation via DMX, RDM, and CRMX protocols.

This version of the Gemini ships with a standard yoke and a UK power cable.

  • Powerful 2x1 LED light panel featuring an extremely high output of 23,000 lux at 9.8'
  • CCT mode for bi-color operation with an adjustment range of 2700 to 10,000K
  • 0 to 100% flicker-free dimming at any frame rate or shutter angle
  • Full plus/minus green color correction and high CRI of 95 ensures color accuracy
  • 6 preset CCT modes with quick select buttons
  • 6 customizable user presets with quick select buttons
  • HSI color mode enables full color control over hue, saturation, and intensity
  • Gel mode with 300 gels to choose from
  • Effects mode provides 11 unique special effects
  • Full RGBWW color gamut mixing
  • Integrated DMX, RDM, and CRMX
  • LCD screen displays vital settings and status
  • Yoke with 5/8" Junior pin connector for easy mounting and positioning
  • Universal multi-voltage power supply operates on current from 100-240 VAC
  • Compatible with optional 26-33 VDC batteries when mains power is unavailable
  • USB port for firmware updates

Light Fixture
Item Type
1x LED Light Panel
Included Filters
Diffusion, Soft Diffusion
Included Storage Case
No
Photometrics
20° at 3200K:
16,722 fc / 180,000 Lux at 3.3' / 1 m*
1858 fc / 20,000 Lux at 9.8' / 3 m
20° at 5600K:
19,230 fc / 207,000 Lux at 3.3' / 1 m*
2136 fc / 23,000 Lux at 9.8' / 3 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2700 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 95
TLCI 97
Dimming
Built-In Dimmer (Continuous)
 • 0 to 100%
Cooling System
Fan
Expected Lamp Life
35,000 Hours
Beam Angle
20° Unmodified
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Wireless CRMX
Wireless DMX
Mobile App Compatible
Yes (Requires Separate Adapter): Android & iOS
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Not Included)

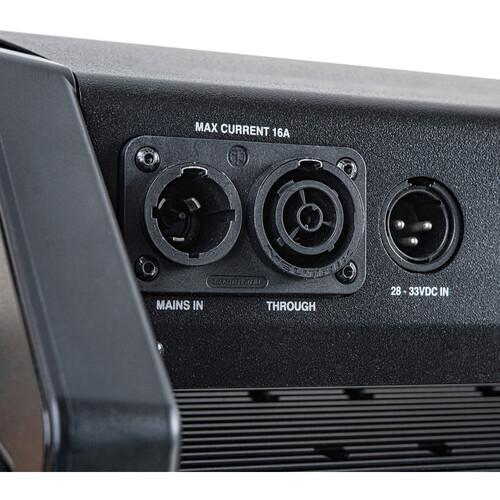

Inputs/Outputs
1x powerCON TRUE1 Power Input
1x powerCON TRUE1 Power Output
1x XLR 3-Pin Battery/Power Input (28 VDC)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x RJ45 DMX Input
1x RJ45 DMX Output
Battery
1x Rechargeable, 28 to 33 VDC (Not Included)
Input Power
28 to 33 VDC
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x Type G Plug to powerCON TRUE1 Cable
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
500 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
General
Display
LCD
Environmental Resistance
Dust-Resistant (IP20)
Storage Conditions
-4 to 113°F / -20 to 45°C
Certifications
CE, FCC, IC, cETL
Materials
Aluminum (Housing)
Dimensions
25 x 12 x 6.9" / 63.5 x 30.5 x 17.5 cm
29.4 x 20.8 x 6.9" / 74.7 x 52.8 x 17.5 cm (Fixture with Yoke)
Weight
25.3 lb / 11.5 kg
