Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)

Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)

Brand: LITEPANELS

MFR: 960-4113

SKU: SF-2443-TJJJ

Price Available Upon Request
  • For Film, Broadcast & Video Production
  • 77,670 Lux at 3.3' (10° at 5600K)
  • Beam Angle: 10-45°
  • Color Temperature Range: 2700-6500K
  • Multi-Voltage AC Operation
  • CRI: 97, TLCI: 97
  • DMX, RDM & Local Control
  • Super-Silent Fan with 3 Speed Presets
  • 0-100% Continuous Dimming
  • Includes 4-Leaf Barndoors & Gel Frame

Items Included

  • Litepanels Studio X4 Bi-Color LED Fresnel Light (Pole-Operated Yoke, EU Power Cable)
  • 4-Leaf Barndoors
  • Gel Frame
  • EU Power Cable
  • Limited 1-Year Manufacturer Warranty
    Registration Extension: 1-Year
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: All LED Lights

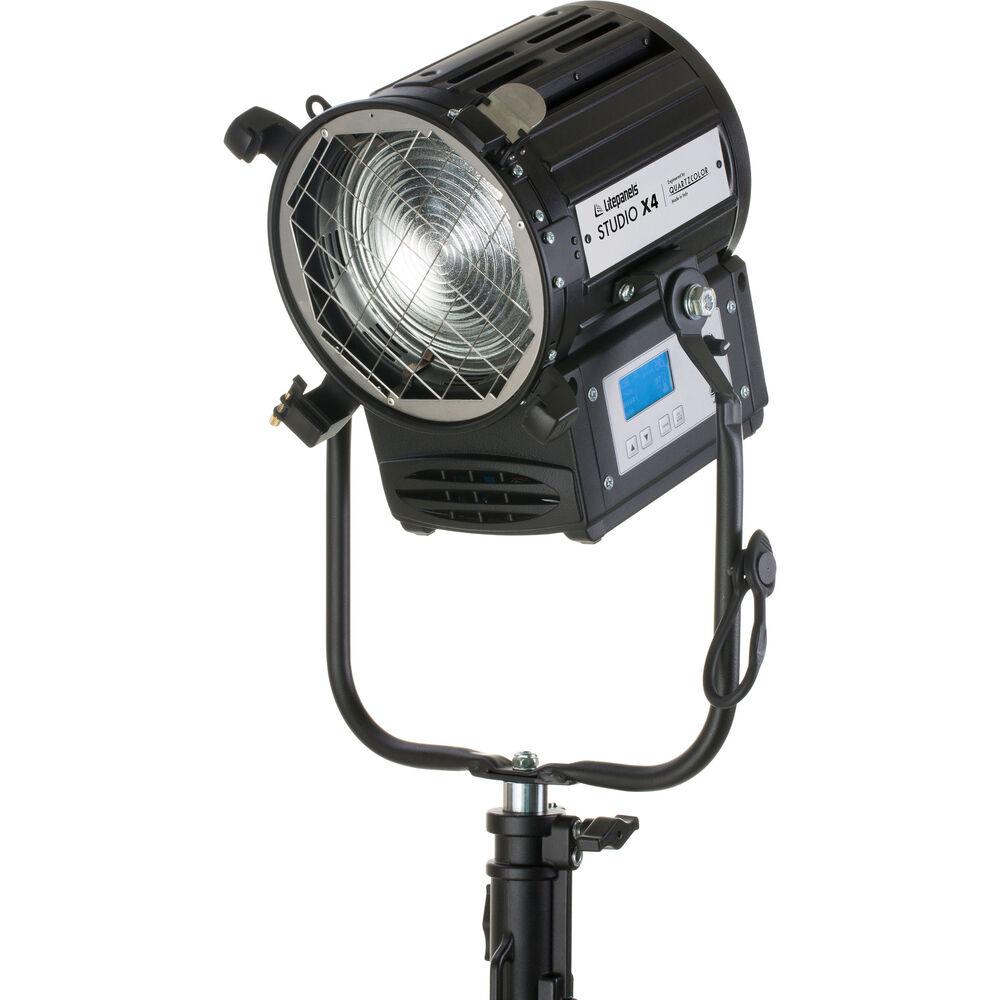

Providing high-quality wraparound illumination, the Studio X4 Bi-Color LED Fresnel Light with EU Power Cable from Litepanels features a 7" Fresnel lens with an adjustable beam angle of 10 to 45° that can be further controlled by the included 4-leaf barndoors. Similar in output to a 650W tungsten Fresnel, this light provides a variable color temperature of 2700 to 6500K and allows 0 to 100% continuous dimming for perfect skin tone rendering. A built-in keypad controller and backlit LCD display enable quick and efficient local control, and the Studio X4 also provides a 5-pin XLR connection for DMX and RDM protocols and operation. Designed for film, broadcast, and video production, this broadcast-quality fixture also features a super-silent fan with three different speed presets for use in sound-sensitive professional environments.

  • 7" Fresnel lens producing even illumination throughout the zoom range
  • 2700 to 6500K variable color temperature range to perfectly match ambient and practical set lighting
  • 10 to 45° beam angle adjustment enabling precise control of beam spread
  • DMX, RDM, and local control offering 0 to 100% continuous dimming
  • Keypad controller with backlit LCD display
  • Super-silent fan with three different speed presets

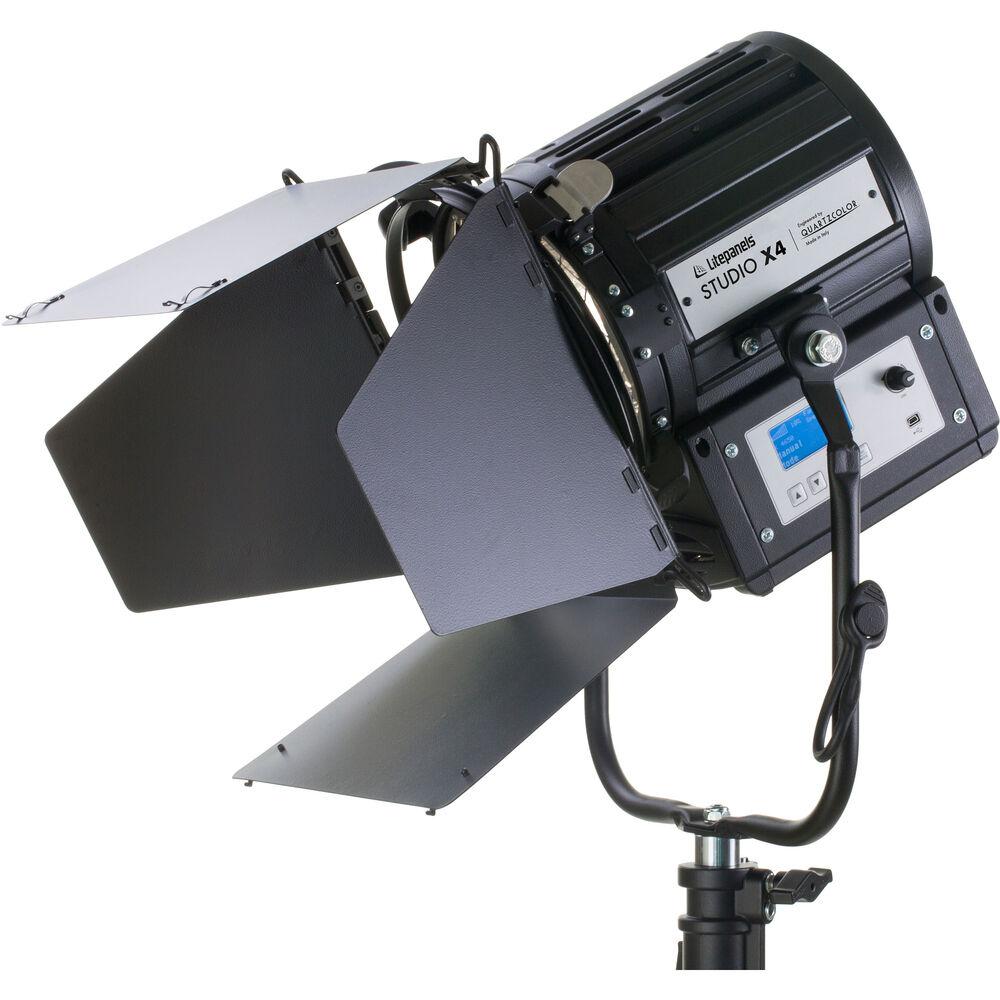

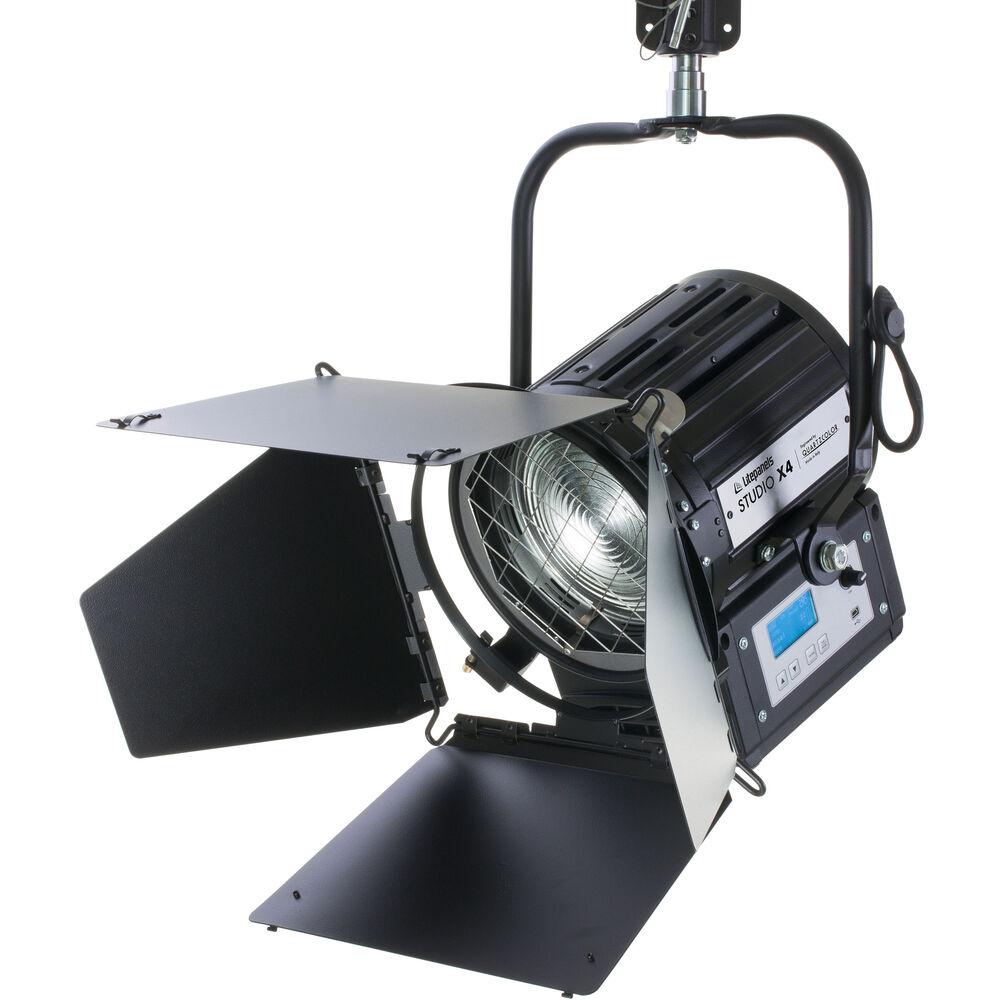

  • 4-leaf barndoors to control light spill and creatively shape light
  • Gel frame for optional gels and diffusion material
  • Advanced thermal management system to ensure 50,000+ hours of LED engine life

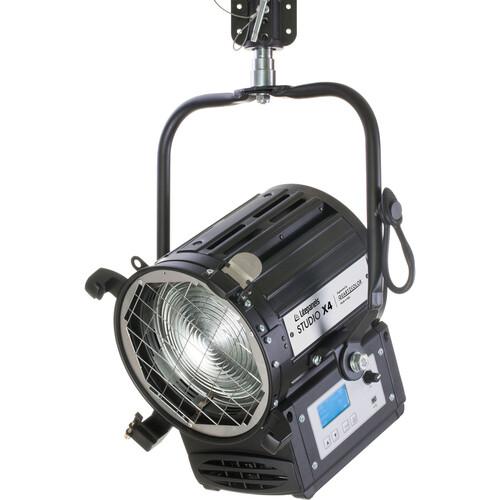

  • Pole-operated yoke for mounting and positioning
  • Mini-USB connection enabling firmware upgrades
  • Similar output to traditional 650W tungsten Fresnel

Light Fixture
Item Type
1x LED Fresnel
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
10° at 3200K:
6036 fc / 64,980 Lux at 3.3' / 1 m*
670 fc / 7220 Lux at 9.8' / 3 m
241 fc / 2599 Lux at 16.4' / 5 m
10° at 5600K:
1203 fc / 77,670 Lux at 3.3' / 1 m*
801 fc / 8630 Lux at 9.8' / 3 m
288 fc / 3107 Lux at 16.4' / 5 m
45° at 3200K:
1028 fc / 11,070 Lux at 3.3' / 1 m*
114 fc / 1230 Lux at 9.8' / 3 m
41 fc / 443 Lux at 16.4' / 5 m
45° at 5600K:
1203 fc / 12,960 Lux at 3.3' / 1 m*
133 fc / 1440 Lux at 9.8' / 3 m
48 fc / 518 Lux at 16.4' / 5 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97
TLCI 97
Dimming
Built-In Dimmer
 • 0 to 100%
Cooling System
Fan
Expected Lamp Life
50,000 Hours
Beam Angle
10 to 45°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Lens Diameter
7" / 17.8 cm
Lens Material
Borosilicate Glass
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x powerCON TRUE1 AC Power Input
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x Mini-USB Female Service Input
Input Power
90 to 260 VAC, 50 / 60 Hz
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
150 W (Maximum)
Mounting
Yoke Type
Pole-Operated Yoke (90° Tilt)
Fixture Mounting
Support Mount
1x 1-1/8" Stud (Via Yoke Mount)
General
Display
LCD
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
12.8 x 11.8" / 32.5 x 30 cm
Weight
22.7 lb / 10.3 kg
