Nanlux Evoke 5C RGB LED Spotlight

Name: Nanlux Evoke 5C RGB LED Spotlight
Brand: Nanlux
SKU: SF-2443-DUBN
Availability: InStock

Brand: Nanlux

MFR: EV5C

SKU: SF-2443-DUBN

Price Available Upon Request

Light with Magnetic Accessories & Case
Output: 496 Lux at 3.3' (Bare, 5600K)
1000-20,000K CCT; Full RGB Color Control
+/- 200 Green/Magenta Tint Adjustment
Nebula C8 Light Engine
Built-In Battery
Onboard, App, DMX/RDM, CRMX; NFC Control
CRI 98 | TLCI 98
Weatherproof IP67 Rating
Includes USB-C Cable

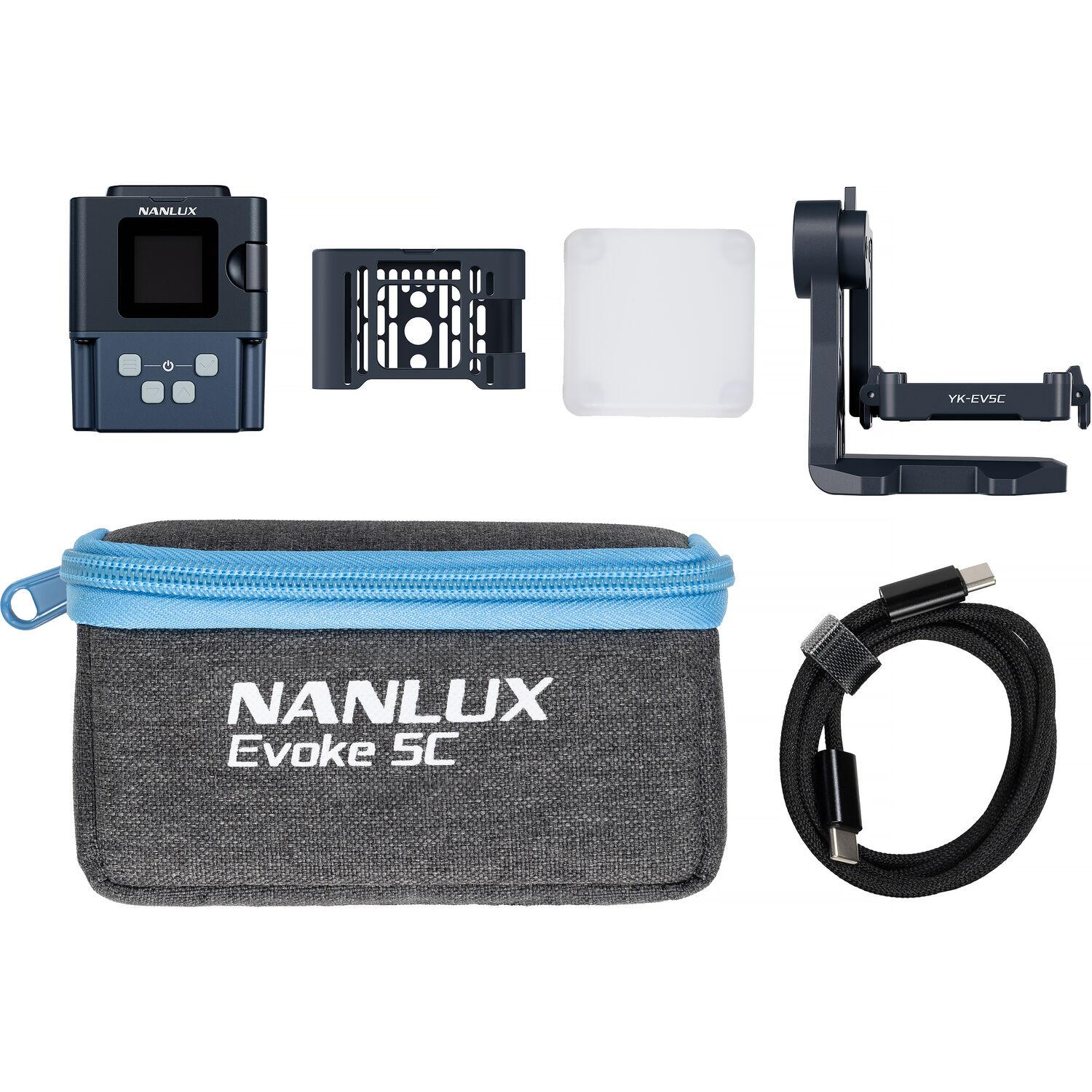

Items Included

Nanlux Evoke 5C RGB LED Spotlight
USB-C Cable (3.3')
Magnetic Diffuser
Magnetic Yoke
Magnetic Thermal Shield
Carry Bag

New Item - Coming Soon

Request Now

Categories: LED Lights

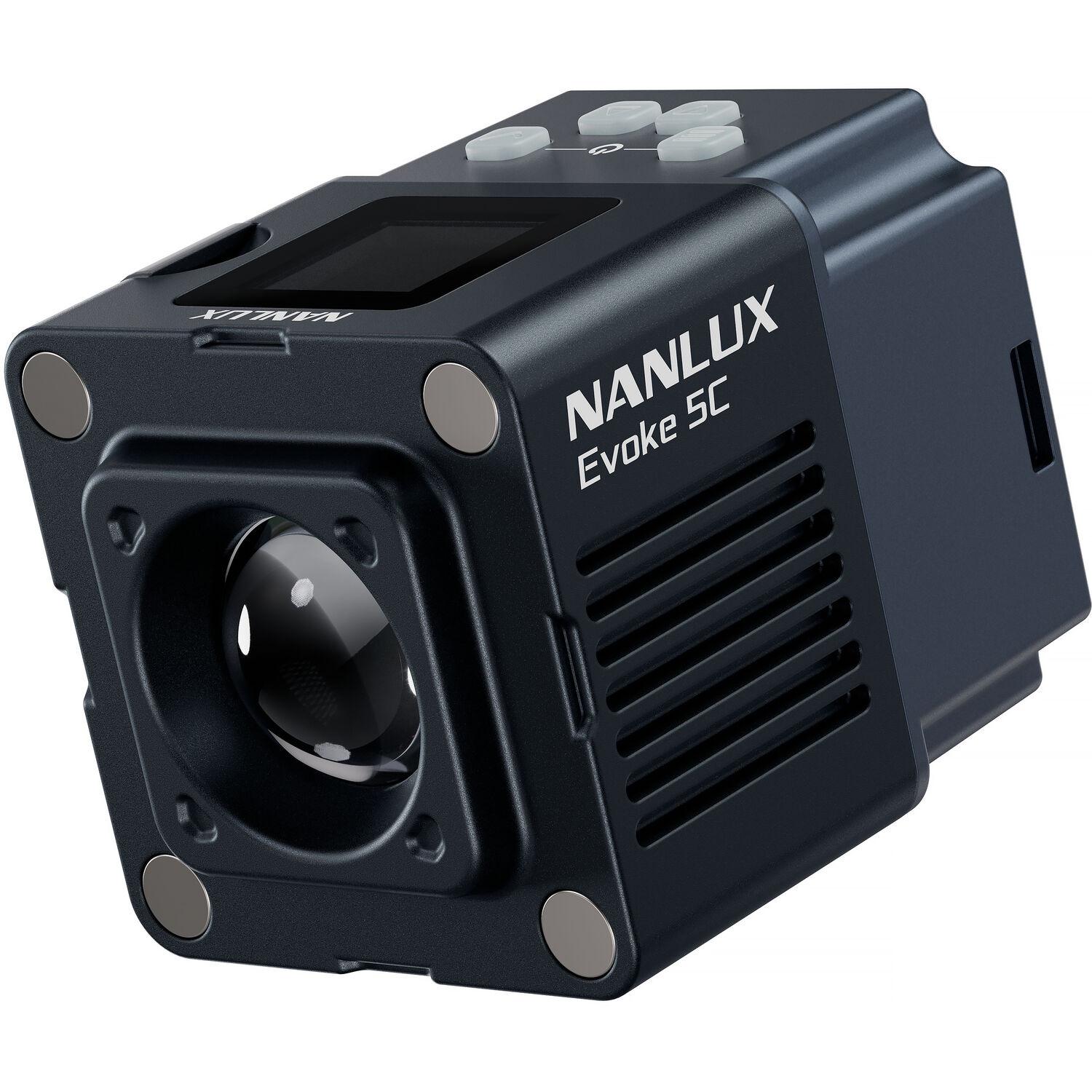

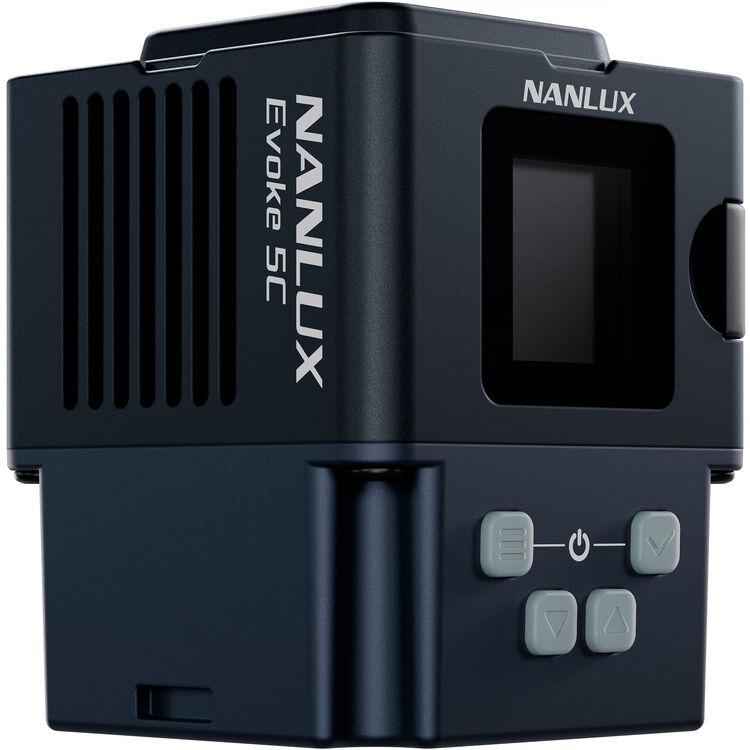

Designed as Nanlux's most compact Evoke light, the Evoke 5C RGB LED Spotlight is a 6W fixture with full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control. Additional benefits are a weatherproof IP67 rating, a built-in battery, and a convenient and versatile magnetic accessory ecosystem. Along with the light, Nanlux includes a 3.3' long USB-C cable and a range of magnetic accessories, such as a diffuser, a yoke, and a thermal shield. A carry bag is also supplied for storage and transportation. Using Nanlux's Nebula C8 technology, the ultracompact Evoke 5C produces red, deep red, amber, lime, green, cyan, blue, and indigo colors via an impressive 2.2 x 1.7 x 1.7" form factor and 5.6 oz lightweight body. All of these features make this a capable light that you can easily modify and take wherever you go.

Small & Bright

Use the Evoke 5C to light up your scenes and objects, enhance fine details, build atmosphere, add highlights, or create precise accent lighting. The ideal compact LED solution for subtle fill light, as well as macro and miniature objects/product photography. Despite its small footprint, the bare Evoke 5C delivers up to 496 lux at 3.3' and 5600K. It can easily be hidden behind in-frame objects to add dimension to a scene, serve as a practical light, or illuminate products.

Full Color Lighting

Just as more powerful lights of the Evoke series, the 5C model enables 0-100% dimming and advanced light mixing technologies, ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. High CRI 98 and TLCI 98 ratings showcase the light's precise color rendering, which translates into pleasing tones for the viewer. Access the fixture's CCT, HSI, RGBW, XY, Gel, and Effect modes for custom lighting options.

Gel Mode & Creative Effects

The light holds 460 LEE and Rosco gels for quick selection, as well as 15 built-in effects for easy lighting simulations. This includes CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding. Users can also find group effects with HUE Loop, CCT Loop, INT Loop, flash, pulse, process, scroll, and driving presets via the app.

Intuitive Control Options

Nanlux offers a generous bounty of methods to control the Evoke 5C, supporting both wired and wireless control for simple or complex sets. Choose from onboard or wireless Nanlink app control via Bluetooth for intuitive management of settings. The screen brightness is adjustable and can be set to automatically turn off after a period of time if needed. Additionally, the 5C also supports DMX/RDM and LumenRadio CRMX (requires an optional DMX adapter cable or CRMX module). NFC control is another addition to this light.

Integrated Battery & Accessories

One of the main highlights of this fixture is its internal battery that provides a runtime of 50 minutes at full output. You can charge it using an optional adapter or power bank with a 5V/2A rating or higher. The Evoke 5C also supports charging via electronic contacts, meaning compatibility with an optional battery grip, magnetic E27 socket adapter, or eight-kit case. The light has a 25° beam angle, and other accessories and a wide variety of modifiers are available separately. Electronic contacts communicate with select modifiers for optimized performance.

All-Weather Protection & More

Its IP67 rating protects the fixture from dust, water, or any rough weather or demanding environments. It has a waterproof design for up to 30 minutes at a depth of 3.3'. The fixture is also magnetically attachable and has a 1/4"-20 mount for wide mounting compatibility. Use it handheld or mounted with its 1/4"-20 mount with anti-twist design. If the light runs for long periods of time, Nanlux's included thermal shield keeps it cool to the touch. Firmware updates are available for the light and select accessories, such as the optional battery grip and CRMX module.

Light Fixture

Item Type	1x LED Spot Light
Included Light Modifier	1x Diffuser
Included Storage Case	Yes
Photometrics	3200K: 41 fc / 448 Lux at 3.3' / 1 m (Unmodified) 509 fc / 5480 Lux at 1' / 0.3 m (Unmodified) 170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified) 5600K: 46 fc / 496 Lux at 3.3' / 1 m (Unmodified) 554 fc / 5970 Lux at 1' / 0.3 m (Unmodified) 188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified) 3200K: 1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)* 20 fc / 220 Lux at 1' / 0.3 m (with Diffuser) 6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser) 5600K: 1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)* 22 fc / 242 Lux at 1' / 0.3 m (with Diffuser) 6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser) *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	1000 to 20,000K +/- 200K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 98 TLCI 98 SSI 78 at 5600K SSI 86 at 3200K TM-30 Rf 96 TM-30 Rg 100
Dimming	App-Controlled / Built-In Dimmer / DMX / RDM • 0 to 100%
Beam Angle	25°
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth CRMX *Adapter Required (Not Included)
Mobile App Compatible	Yes: Android & iOS App Name: Nanlink Functionality: Remote Control

Power & I/O

Power Source	Battery (Built-In)
Inputs/Outputs	1x USB-C Female Power/DMX Input *Adapter Required (Not Included) (5 VDC at 2 A)
Battery	1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In) • Up to 50-Minute Runtime at Maximum Brightness • Up to 156-Minute Runtime at Minimum Brightness
Battery Charging	1x Charging Cable (Included)
Input Power	5 VDC at 2 A
Included Adapter / Cable	1x USB-C Male to USB-C Male Cable (14.8' / 4.5 m)
Power Pass-Thru	No
Power Consumption	6 W

Mounting

Fixture Mounting	1x 1/4"-20 Female Thread Magnetic
Included Adapter	1x Swivel Mount: 1/4"-20 Female Thread to Proprietary

General

Display	Yes
Environmental Resistance	Dust/Weather/Water-Resistant (IP67)
Operating Conditions	-4 to 104°F / -20 to 40°C
Certifications	BIS, CE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA
Dimensions	2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture) 5.31 x 2.95 x 1.97" / 13.49 x 7.49 x 5 cm (Included Storage Case)
Weight	5.6 oz / 160 g (Fixture)

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Your rating:

Review:

Upload photos

You can upload up to 6 photos, each photo maximum size is 2 MB.

Looks like there are no reviews yet.

Shipping worldwide

Free 7-day return if eligible, so easy

Supplier give bills for this product.

Pay online or when receiving goods

Items Included

Nanlux Evoke 5C RGB LED Spotlight
USB-C Cable (3.3')
Magnetic Diffuser
Magnetic Yoke
Magnetic Thermal Shield
Carry Bag

Nanlux Evoke 5C RGB LED Spotlight (8-Light Kit)

(0)

Request Now

Nanlux Evoke 5C RGB LED Spotlight Kit

(0)

Request Now

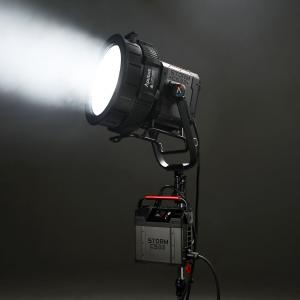

Aputure STORM CS32 LED COB LIGHT
