Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit
Nanlux Evoke 5C RGB LED Spotlight Kit

Nanlux Evoke 5C RGB LED Spotlight Kit

Brand: Nanlux

MFR: EV5CKIT

SKU: SF-2443-QFBH

Price Available Upon Request
  • Light with Fresnel, Battery Grip & Case
  • Output: 496 Lux at 3.3' (Bare, 5600K)
  • 1000-20,000K CCT; Full RGB Color Control
  • +/- 200 Green/Magenta Tint Adjustment
  • Nebula C8 Light Engine
  • Onboard, App, DMX/RDM, CRMX; NFC Control
  • CRI 98 | TLCI 98
  • Weatherproof IP67 Rating
  • Includes Magnetic Accessories
  • Includes USB-C Cable

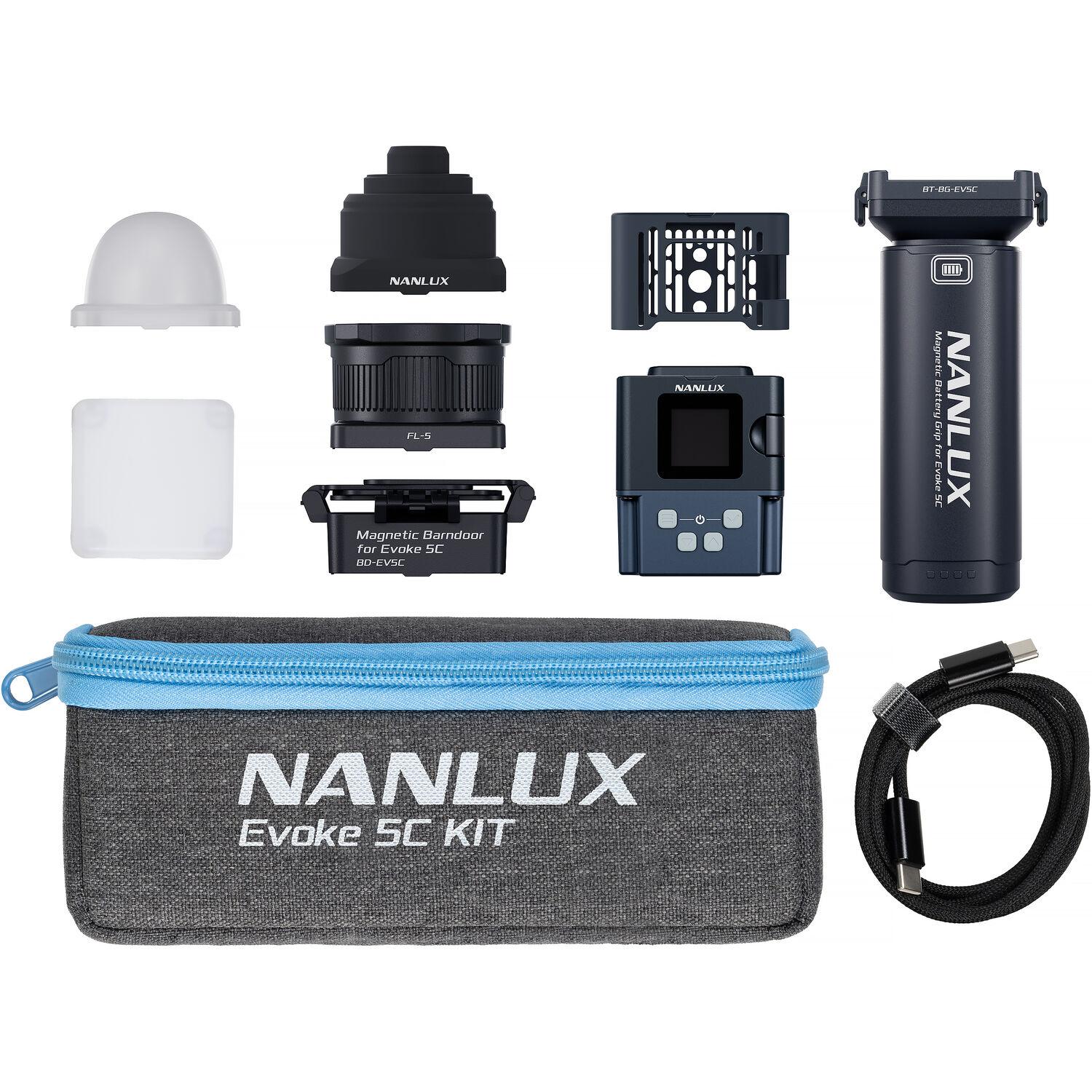

Items Included

  • Nanlux Evoke 5C RGB LED Spotlight Kit
  • USB-C Cable (3.3')
  • Magnetic Fresnel Lens
  • Magnetic Battery Grip
  • Magnetic Thermal Shield
  • Magnetic Diffuser
  • Magnetic Soft Dome
  • Magnetic Barndoors
  • Magnetic Snoot
  • Carry Bag
New Item - Coming Soon
Request Now

Categories: LED Lights

Handy & Versatile
Designed as Nanlux's most compact Evoke light, the Evoke 5C RGB LED Spotlight Kit packs a 6W fixture with full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control. The kit also includes a magnetic Fresnel lens and a magnetic battery grip for convenience. Additional benefits are a weatherproof IP67 rating and a magnetic accessory ecosystem. Along with the light, Nanlux includes a 3.3' long USB-C cable and a wide range of magnetic accessories, such as barndoors, a diffuser, a soft dome, a snoot, and a thermal shield. A carry bag is also supplied for storage and transportation. Using Nanlux's Nebula C8 technology, the ultracompact Evoke 5C produces red, deep red, amber, lime, green, cyan, blue, and indigo colors via an impressive 2.2 x 1.7 x 1.7" form factor and 5.6 oz lightweight body. All of these features make this a capable light that you can easily modify and take wherever you go.
Use the Evoke 5C to light up your scenes and objects, enhance fine details, build atmosphere, add highlights, or create precise accent lighting. The ideal compact LED solution for subtle fill light, as well as macro and miniature objects/product photography. Despite its small footprint, the bare Evoke 5C delivers up to 496 lux at 3.3' and 5600K or 830 lux using the included Fresnel lens at the same distance, CCT, and 25°. It can easily be hidden behind in-frame objects to add dimension to a scene, serve as a practical light, or illuminate products.
Magnetic Modifiers

Included with the Evoke 5C are a Fresnel lens and a set of magnetic accessories, including modifiers and a magnetic battery grip. Effortlessly attach or detach the accessories thanks to their magnetic design.

  • The Fresnel lens increases the output.
  • Barndoors direct and restrict the spread of light.
  • The diffuser and dome are included for softness.
  • A snoot enables selective lighting.
  • Full Color Lighting
    Just as more powerful lights of the Evoke series, the 5C model enables 0-100% dimming and advanced light mixing technologies, ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. High CRI 98 and TLCI 98 ratings showcase the light's precise color rendering, which translates into pleasing tones for the viewer. Access the fixture's CCT, HSI, HSIW, RGBW, XY, Gel, and Effect modes for custom lighting options.
  • Gel Mode & Creative Effects
    The light holds 460 LEE and Rosco gels for quick selection, as well as 15 built-in effects for easy lighting simulations. This includes CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.
    Intuitive Control Options
    Nanlux offers a generous bounty of methods to control the Evoke 5C, supporting both wired and wireless control for simple or complex sets. Choose from onboard control or the Nanlink app 2.0 via Bluetooth. The screen brightness is adjustable and can be set to automatically turn off after a period of time if needed. Additionally, the 5C also supports DMX/RDM and LumenRadio CRMX (requires an optional DMX adapter cable or CRMX module). NFC pairing is another addition to this light.
    Battery Power & Accessories
    • One of the main highlights of this fixture is its internal battery that provides a runtime of 50 minutes at full output.
    • You can charge it using an optional adapter or power bank with a 5V/2A rating or higher.
    • The Evoke 5C also supports charging via electronic contacts. Here, a battery grip is supplied for increased runtime of 4.7 hours at 100% brightness.
    • The light has a 25° beam angle, and other accessories and a variety of modifiers are available separately (optional yoke, E27 socket adapter, and more). Electronic contacts communicate with select modifiers for optimized performance.
    All-Weather Protection & More
    Its IP67 rating protects the fixture from dust, water, or any rough weather or demanding environments. It has a waterproof design for up to 30 minutes at a depth of 3.3' and an optional IP68 underwater housing is available to work at a depth of 98.4'. The fixture is also magnetically attachable and has a 1/4"-20 mount for wide mounting compatibility. Use it handheld or mounted with its 1/4"-20 mount with anti-twist design. If the light runs for long periods of time, Nanlux's included thermal shield keeps it cool to the touch. Firmware updates are available for the light and select accessories, such as the battery grip and optional CRMX module.
    Portability
    This kit is a convenient, lightweight, and portable lighting solution that packs essential accessories to cover most shooting scenarios. Use the Evoke 5C as a spotlight, soft light, and achieve precise beam angle control. The simple, yet versatile included case allows you to pack, transport, or attach the entire kit to your belt or a larger gear bag.





Light Fixture
Item Type
1x LED Spot Light
Included Light Modifier
1x Diffuser
1x Dome
1x Lens
1x Barndoors
1x Snoot
Included Storage Case
Yes
Photometrics
3200K:
41 fc / 448 Lux at 3.3' / 1 m (Unmodified)
509 fc / 5480 Lux at 1' / 0.3 m (Unmodified)
170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified)
5600K:
46 fc / 496 Lux at 3.3' / 1 m (Unmodified)
554 fc / 5970 Lux at 1' / 0.3 m (Unmodified)
188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified)
3200K:
1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)*
20 fc / 220 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser)
5600K:
1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)*
22 fc / 242 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
1000 to 20,000K +/- 200K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 98
TLCI 98
SSI 78 at 5600K
SSI 86 at 3200K
TM-30 Rf 96
TM-30 Rg 100
Dimming
App-Controlled / Built-In Dimmer / DMX / RDM
 • 0 to 100%
Beam Angle
25°
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Connectivity
Wireless Remote Control Type
Bluetooth
CRMX *Adapter Required (Not Included)
Mobile App Compatible
Yes: Android & iOS
App Name: Nanlink
Functionality: Remote Control
Power & I/O
Power Source
Battery (Built-In)
Inputs/Outputs
1x USB-C Female Power/DMX Input
*Adapter Required (Not Included) (5 VDC at 2 A)
Battery
1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In)
 • Up to 50-Minute Runtime at Maximum Brightness
 • Up to 156-Minute Runtime at Minimum Brightness
Battery Charging
1x Charging Cable (Included)
Input Power
5 VDC at 2 A
Included Adapter / Cable
1x USB-C Male to USB-C Male Cable (14.8' / 4.5 m)
Inline Switch
No
Power Pass-Thru
No
Power Consumption
6 W
Mounting
Included Light Stand / Mount
1x Handgrip
Fixture Mounting
1x 1/4"-20 Female Thread
Magnetic
Included Adapter
1x Swivel Mount: 1/4"-20 Female Thread to Proprietary
General
Display
Yes
Environmental Resistance
Dust/Weather/Water-Resistant (IP67)
Operating Conditions
-4 to 104°F / -20 to 40°C
Certifications
BIS, CE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA
Dimensions
2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture)
5.31 x 2.95 x 1.97" / 13.49 x 7.49 x 5 cm (Included Storage Case)
Weight
5.6 oz / 160 g (Fixture)
