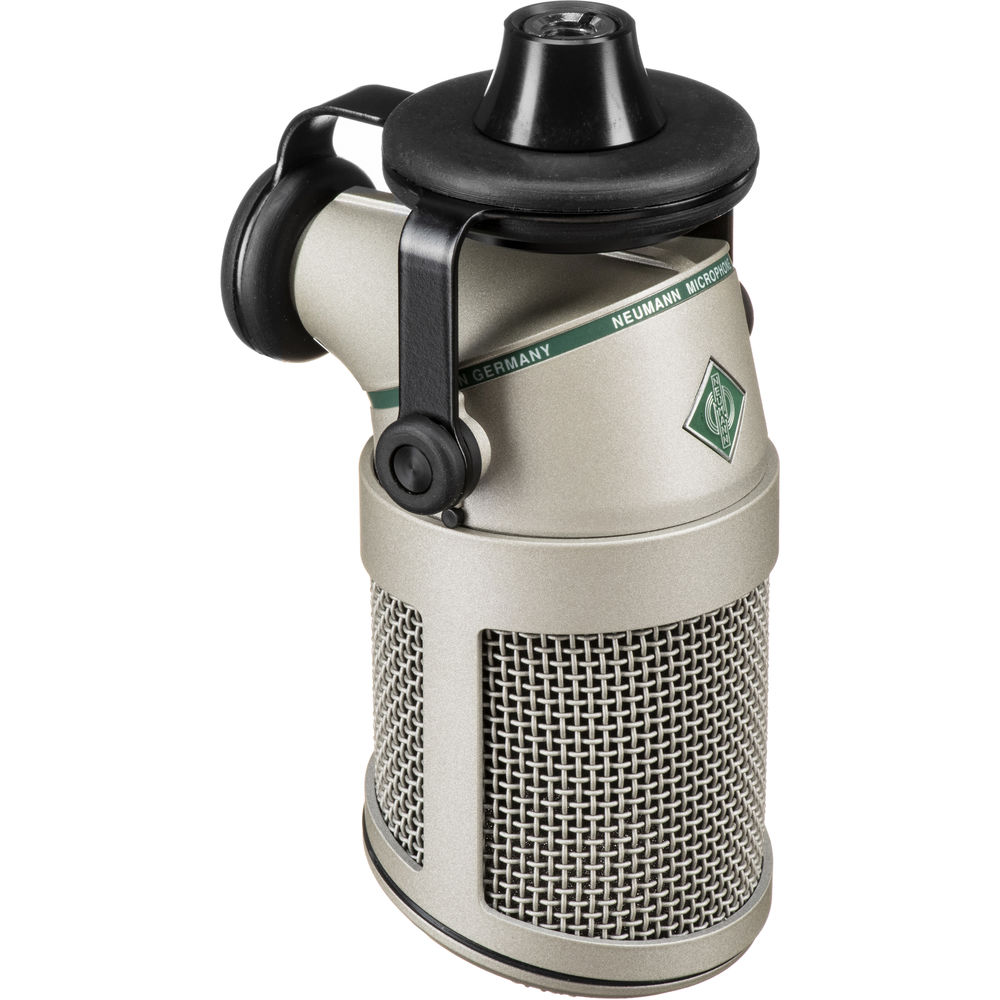

The BCM 705 Dynamic Broadcast Microphone from Neumann is a professional, dynamic broadcast microphone. The BCM 705's housing and head grille are identical to those of the BCM 104. The dynamic capsule features a hypercardioid directional characteristic, specifically designed for speech reproduction at close range. Multi-level isolation from structure-borne noise and an elastic mount ensure operation free of interference, even in a lively studio environment. The microphone head grille twists off easily for quick cleaning.
The frequency response has a light treble boost, in the region from 2 kHz to 9 kHz, aiding the speech intelligibility. The bass frequency response is designed to compensate for the overemphasis of the bass caused by the proximity effect.
A pop screen not only prevents the occurrence of plosive pop noises in vocal recordings, but also efficiently prevents unwanted particles from settling on the diaphragm.

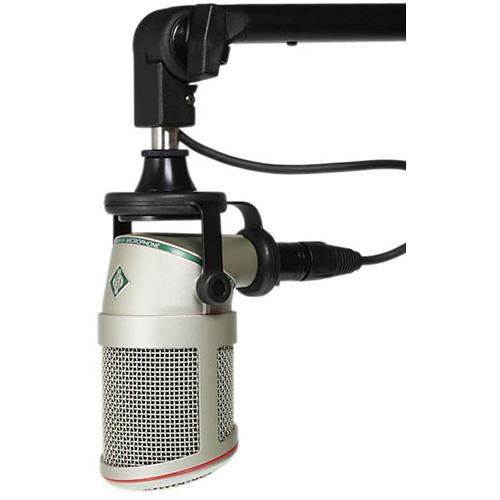

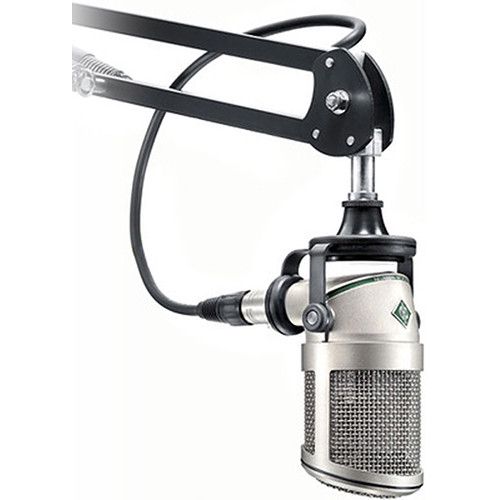

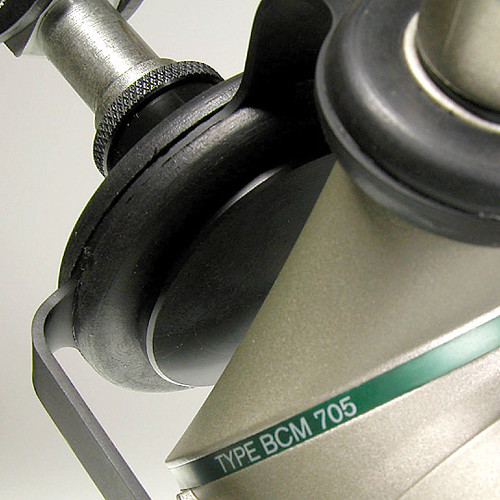

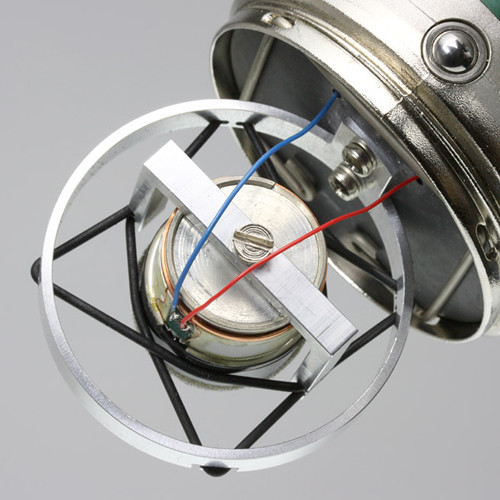

The preferred mode of operation is to suspend the BCM 705 from a standard studio boom arm. A thread adapter to fit different connector threads is included. In order to provide protection from structure-borne noise, both the capsule and the microphone in its mount are elastically suspended.
This microphone is part of the B&H Virtual Mic Locker, an online tool to help our valued customers determine the sonic differences between popular microphones for podcasting and voice over work. Each microphone was recorded using a Grace Design M103 preamp into a Presonus Quantum 2626 interface.
Features
Microphone
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Element Type | Dynamic |
| Polar Pattern | Hypercardioid |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Sensitivity | 1.7 mV/Pa at 1 kHz into 10 Kilohms |
| Signal-to-Noise Ratio | 62 dB CCIR 76 dB A-Weighted |
Physical
| Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |
| Included Filters | No |
Packaging Info
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 8.3 x 4.85 x 4.85" |
