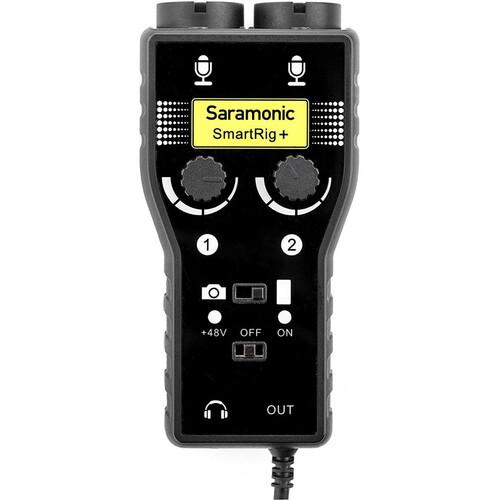

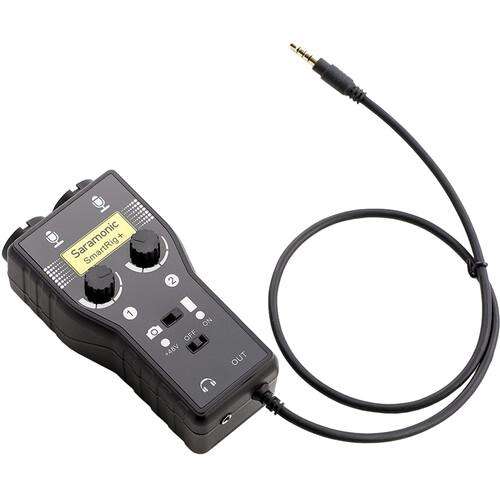

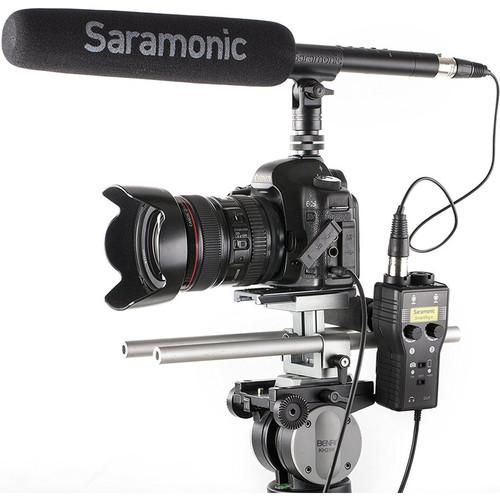

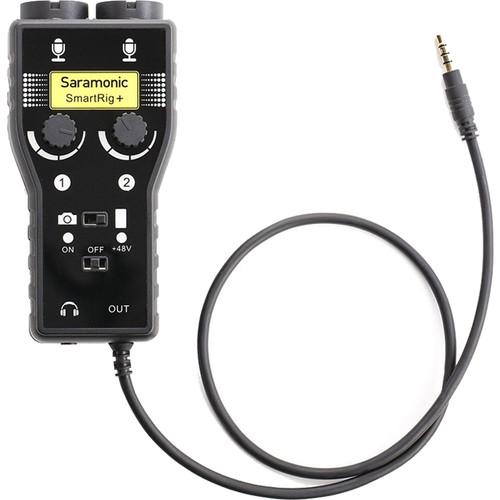

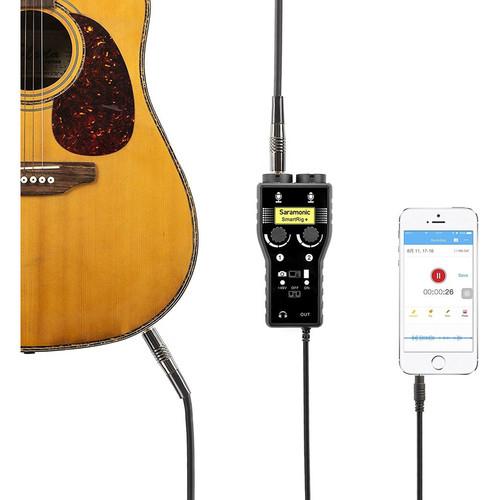

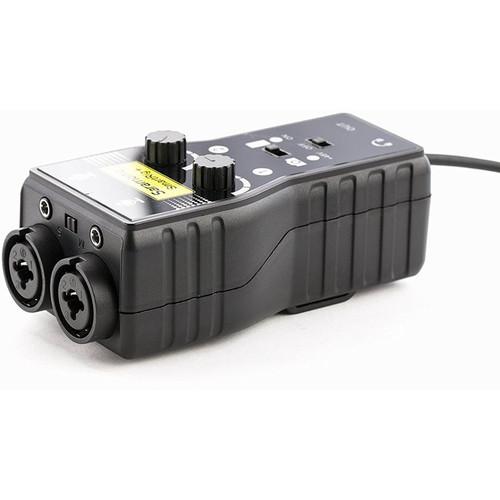

The SmartRig+ 2-Channel XLR Microphone Audio Mixer by Saramonic is a compact and portable audio interface designed for professional-quality recording. It allows you to connect microphones, guitars, and other instruments directly to smartphones, tablets, DSLR cameras, and video cameras. With two independent input channels, you can connect multiple microphones or instruments simultaneously and adjust their gain individually. The interface features two combo XLR/1/4" inputs and two 1/8" inputs, providing flexible connectivity for different recording setups. It also supports switchable mono and stereo output modes for convenient audio recording and monitoring.
| Specification | Details |
|---|---|
| Form Factor | Desktop |
| I/O Channels | 2 Inputs / 1 Output |
| Microphone Inputs | 2 |
| Analog Audio I/O | 2 × Combo XLR/1/4" TRS Mic/Line/Hi-Z Inputs; 2 × 3.5 mm TRS Line Inputs; 1 × 3.5 mm TRRS Line Output; 1 × 3.5 mm TRS Headphone Output |
| Digital Audio I/O | None |
| Host Connection | 3.5 mm TRRS |
| Power Source | Battery |
| Specification | Details |
|---|---|
| Form Factor | Desktop |
| Display | 1 × Monochrome LCD |
| I/O Channels | 2 Inputs / 1 Output |
| Analog Outputs | 1 |
| Microphone Inputs | 2 |
| Built-In Microphone | No |
| Input Level Control | 2 × Knobs |
| Specification | Details |
|---|---|
| Pad | No |
| Gain/Trim Range | +23 dBu |
| High-Pass Filter | No |
| Specification | Details |
|---|---|
| Analog Audio I/O | 2 × Combo XLR/1/4" TRS Mic/Line/Hi-Z Inputs; 2 × 3.5 mm TRS Line Inputs; 1 × 3.5 mm TRRS Line Output; 1 × 3.5 mm TRS Headphone Output |
| Phantom Power | 48V on 2 Channels |
| Digital Audio I/O | None |
| Host Connection | 3.5 mm TRRS |
| USB Protocol | None |
| Wireless | No |
| Specification | Details |
|---|---|
| Frequency Response | 20 Hz – 20 kHz |
| Maximum Output Level | 2 Vrms |
| Signal-to-Noise Ratio | 80 dB (-30 dBu Input, 1 kHz) |
| THD | < 0.01% (-30 dBu Input, 1 kHz) |
| Specification | Details |
|---|---|
| Operating System | Android / iOS |
| Included Software | None |
| Compatible Devices | iPhone, iPad, iPod Touch, Android Smartphones |
| Specification | Details |
|---|---|
| Power Requirement | Battery |
| Battery Type | 1 × 9V |
| Specification | Details |
|---|---|
| Dimensions | 4.7 × 1.6 × 1.6 in / 120 × 40 × 40 mm |
| Weight | 4.6 oz / 130 g |
| Specification | Details |
|---|---|
| Package Weight | 0.505 lb |
| Box Dimensions (L × W × H) | 7.25 × 3.8 × 2.75 in |
