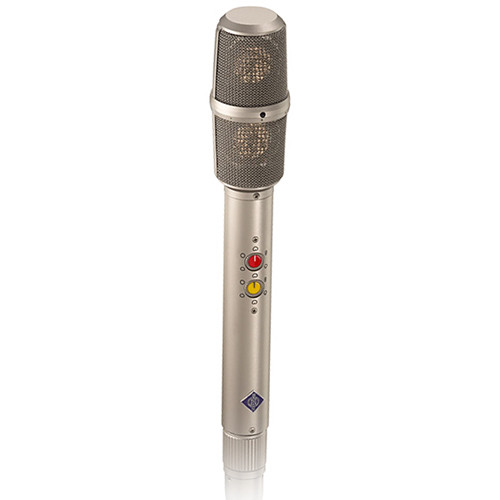

The USM 69 i Variable Pattern Stereo Microphone is a dual capsule stereo microphone with two K67 multi-pattern capsules and independent amplifier stages operating independently from each other. The capsules are stacked and rotated at a 270 degree angle for M/S and X/Y style stereo capturing.
Each capsule features individually switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns for the ultimate in flexible audio capturing. The USM 69 i features independent output stages allowing the capsules to function as individual mono microphones for audio backup capturing applications. The USM 69 i is a powerful stereo microphone for crucial studio recording of vocals and instruments.
Stereo M/S and X/Y Capturing
The USM 69 i features two independent capsules and amplifier stages. The capsules are stacked in a 270 degree angle for close proximity X/Y and M/S style capturing of vocals and instruments.
Mono Operation
Independent amplifier stages allows for independent mono operation for audio backup capturing.
Flexible Polar Patterns
Each capsule features switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns.
Excellent Audio Quality
The USM 69 i delivers Neumann's pristine audio quality and low noise floor, and is an ideal choice for ultra-critical studio vocal/instrument recording.
Microphone
| Form Factor | Handheld |
| Intended Sound Sources | Vocals, Speech/Voice Over |
| Sound Field | Mono, Stereo |
| Operating Principle | Pressure Gradient |
| Capsule | 2 x Condenser |
| Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid |
| Pattern Selection | Switched (Adjustable on Mic) |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Indicators | None |
| Windscreen | Metal Mesh (Included) |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 132 dB SPL |
| Impedance | 150 Ohms |
| Load Impedance | 1 Kilohms |
| Sensitivity | 13 mV/Pa |
| Output Level | 3 dBu |
| Signal-to-Noise Ratio | 70 dB CCIR 81 dB A-Weighted |
| Equivalent Noise Level | 24 dB CCIR 13 dB A-Weighted |
Connectivity
| Headphone Connector | None |
Power
| Operating Voltage | 48 V ± 4 V |
| Operating Current Consumption | 0.7 mA |
Physical
| Color | Nickel |
| Mounting | None |
| Mounting Thread Size | Not Specified by Manufacturer |
| Included Case | Hard Case |
| Included Filters | None |
| Dimensions | ø: 1.9 x L: 11.5" / ø: 48 x L: 293 mm |
| Weight | 18 oz / 510 g |
