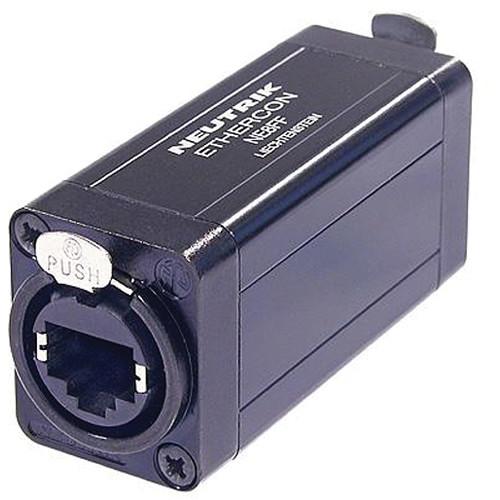

Neutrik etherCON RJ45 Feed-Through Coupler for Cable Extensions
Categories: Networking Accessories
The etherCON RJ45 Feed-Through Coupler for Cable Extensions from Neutrik helps connect two cables together to extend the overall application. It features a secure latch lock system. The coupler can be used with all RJ45 plugs, including the NE8MC RJ45 cable connector.
| Product Type | Female adapter |
| Electrical | |
| Contact Resistance | < 10 m Ω (inner) |
| Dielectric Strength | 1 kV DC |
| Frequency Range | 1 - 100 MHz |
| Insulation Resistance | > 0.5 G Ω |
| Rated Current Per Contact | 1.5 A |
| Rated Voltage | 50 V |
| Standard Compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
| Insertion Force | ≤ 20 N |
| Withdrawal Force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Locking Device | Latch lock |
| Materials | |
| Contact Plating | 0.2 µm Gold over Nickel plating |
| Contacts | Bronze |
| Insert | PBTP 15% GR |
| Shell | Black plated |
| Strain Relief | Tin plated |
| Environmental | |
| Flammability | UL 94 HB |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Package Weight | 0.16 lb |
| Box Dimensions (LxWxH) | 5.6 x 4.05 x 1.2" |
