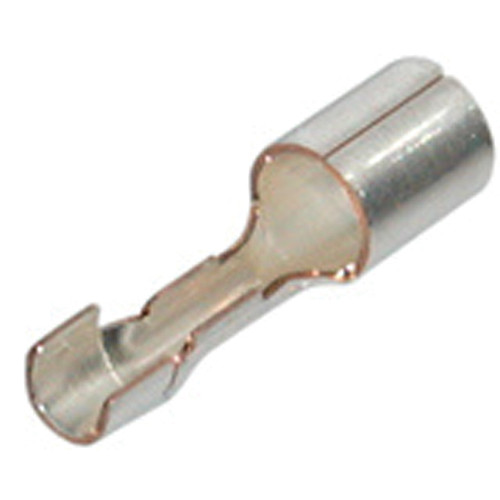

The HA-3MXX Replacement Crimp Contacts from Neutrik come in a pack of 50. These contacts are designed for use with the NC3MXX-HA Cable Connector and the NC3MD-LX-HA Receptacle.
Product
| Gender | Male |
Electrical
| Contact Resistance | ≤5 mΩ (inner) |
| Rated Current Per Contact | 1 A |
| Voltage | Rated: 50 V |
Mechanical
| Crimp Mass | B-crimp acc. IEC 60352-2 |
| Wire Size | 0.22 to 0.34 mm² 24 to 22 AWG |
| Wiring | Crimp contacts |
Material
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
Environmental
| Standard Compliance | IEC 61076-2-103 |
Packaging Info
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 7 x 4 x 0.02" |
