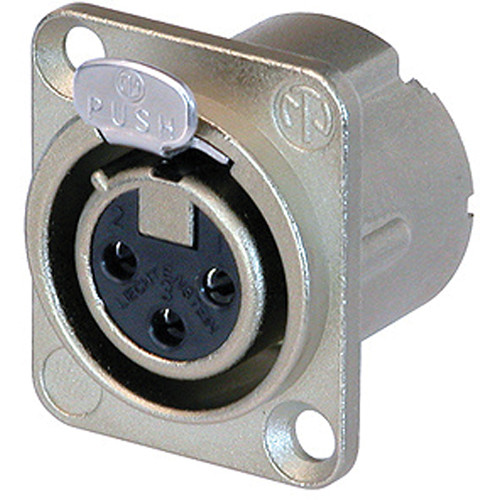

Neutrik NC3FD-LX 3-Pole Female XLR Receptacle
Categories: Audio Connectors
Designed to mate with the Neutrik EMC XLR cable connector, this NC3FD-LX 3-Pole Female Receptacle from the DLX series is a D-style, 3-pole XLR-female receptacle sporting a nickel housing and silver contacts. Its all-metal housing and duplex ground contact offers RF protection and electromagnetic shielding, while its cage-type female contact facilitates conductivity without causing excess wear on any mated male contact. An incorporated solder barrier ensures that solder won't run into the contact mating area. With its D-style housing, it's compatible with industry-standard D-mounting dimensions.
| Electrical | |
| Capacitance | Between Contacts: ≤4 pF |
| Contact Resistance | Inner: ≤5 MOhms |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | Initial: >10 GOhms |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Mechanical | |
| Insertion Force | ≤20 N |
| Withdrawal Force | ≤20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 0.1 in² / 2.5 mm² 14 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Chassis Shape | D |
| Material | |
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Steel Ck67 |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Nickel |
| Environmental | |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F / -30 to 80°C |
| Diameter | 0.9" / 23.6 mm |
| Dimensions | 1.2 x 1.4 x 1.3" / 31 x 26 x 32.7 mm |
Packaging Info
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 1.2 x 1 x 0.9" |
