Brand: NEUTRIK
MFR: NC3MD-L-BAG-1

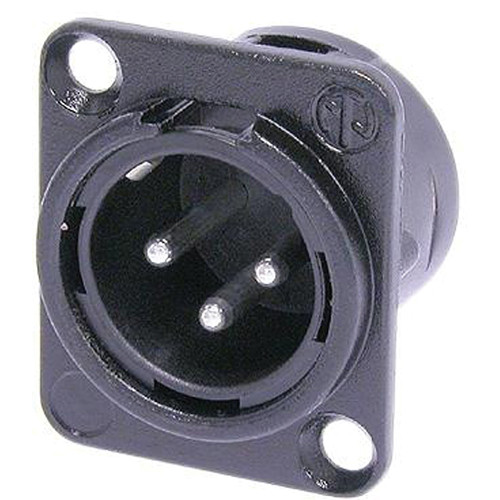

Neutrik NC3MD-L-BAG-1 3-Pole Male XLR Receptacle
Categories: Audio Connectors
Sporting a black metal housing, the Neutrik NC3MD-L-BAG-1 is a 3-pole male XLR receptacle designed specifically for the kinds of wall panels often utilized in studios. It features silver contacts, solder cups, a standardized D-sized 24mm panel cutout, and a zinc die-cast shell.
| Electrical | |
| Capacitance | Between Contacts: ≤4 pF |
| Contact Resistance | Inner: ≤5 MOhms |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | Initial: >2 GOhms |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Mechanical | |
| Insertion Force | ≤20 N |
| Withdrawal Force | ≤20 N |
| Lifetime | >1,000 mating cycles |
| Wiring | Solder contacts |
| Mounting Direction | Front |
| Locking Device | Latch lock |
| Chassis Shape | D |
Material
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Stahl Ck67 |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
Environmental
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Diameter | 0.93" (23.6 mm) |
| Dimensions | 1.22 x 1.02" (31 x 26 mm) |
Packaging Info
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 1 x 1 x 0.75" |
