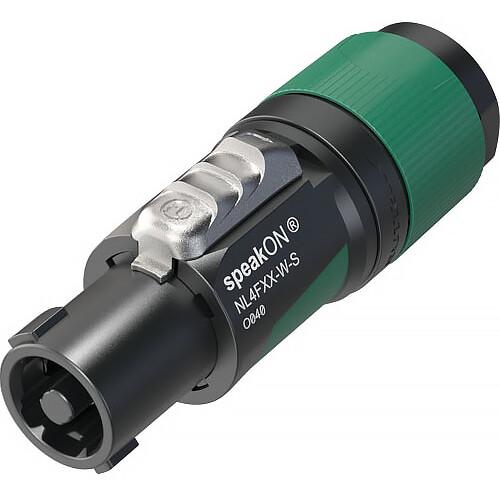

Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)

Name: Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)
Brand: NEUTRIK
SKU: SF-2443-7VDA
Availability: InStock

Brand: NEUTRIK

MFR: NL4FXX-W-S

SKU: SF-2443-7VDA

Price Available Upon Request

NL4 speakON Connector
Easy Assembly
Screw Terminal Assembly
Chuck-Type Strain Relief
Cable Diameter: 0.2 to 0.5"
Current Rating 37A RMS Continuous
Reliable and Long-Lasting Material

Items Included

Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Audio Connectors

Save money by making your own pro-audio speaker cables with the green Neutrik NL4FXX-W-S, a four-pole speakON connector for professional audio applications. The connector is extremely robust and features a reliable locking system. Each pole utilizes a screw-type terminal including stranded wire protection.

Benefits

Up to 37 A rms current rating
Unique Neutrik locking bushing and strain relief for cable diameters 0.2 to 0.5"
IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Superior NEUTRIK quality standard, extremely robust and reliable
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Easy and reliable twist lock system
Ergonomic design with slip-proof two-component molded housing
Improved kink protection by two-component bushing

General

Compatibility	Not Specified by Manufacturer
Electrical	Contact Resistance: ≤ 2 Megaohm Dielectric Strength: 2.8 kVac Insulation Resistance: > 10 Gigohm (Initially) Electrical Contacts: 4 Rating Europe: IEC 61984: 37 A 250 VAC Rating USA: UL1977: 35 A 250 VAC Rating Canada: CSA C22.2 No.182.3: 24 A 250 VAC
Specifications	Mechanical Cable Diameter: 0.2 to 0.5" / 6 to 12 mm Lifetime: Typically 5000 Mating Cycles Wire Size (mm²): 1.5 - 4 mm² Wire Size (AWG): 17 - 11 AWG Locking Device:Twist Lock Termination: Screw Type Terminals IP 20

Physical

Color	Black / Green
Material of Construction	Copper Alloy Contacts, Zinc Diecast Lock, Polyamide Shell and Insert, Polypropylene Bushing, Polyketone Strain Relief
Environmental Resistance	No
Operating Conditions	-27 to 176°F / -33 to 80°C
