Brand: NEUTRIK
MFR: NL4MPXX-UC

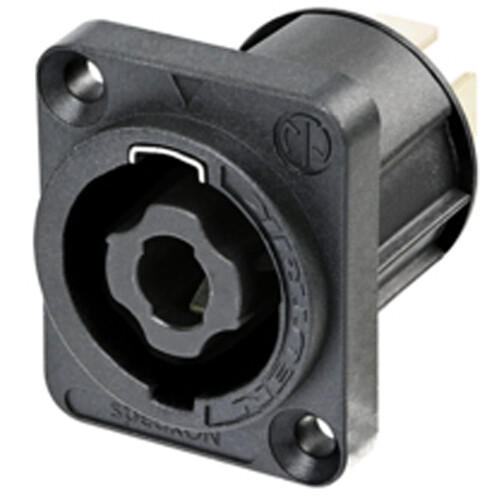

Neutrik NL4MPXX-UC 4-Pole Male speakON Chassis Connector
Categories: Audio Connectors
The NL4MPXX-UC 4-Pole Male speakON Chassis Connector from Neutrik is a durable, mountable connector designed to be installed in a loudspeaker or amplifier chassis. This chassis connector features two countersunk thru holes for easy mounting via two machine screws, a robust polyamide shell with copper alloy contacts, glass reinforced V-0 materials for flame resistance, and a precise keyway for secure mating with the chassis locking area. The connector is rated for 30 amps RMS of continuous current and features an airtight design that is ideal for speaker applications.
General
| Compatibility | Not Specified by Manufacturer |
Environmental
| Certifications | IEC 61984, IEC 6236/-1 *as per Manufacturer |
| Operating Temperature | 2 to 112°F / -30 to 80°C |
Physical
| Mounting | Front: 2 x Countersunk Machine Screws |
| Color | Black |
| Material of Construction | Polyamide (PA 66), Copper Alloy |
| Dimensions | 1.4 x 1.2 x 1" / 36.2 x 30.9 x 25.9 mm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 2.9 x 1.45 x 1.05" |
