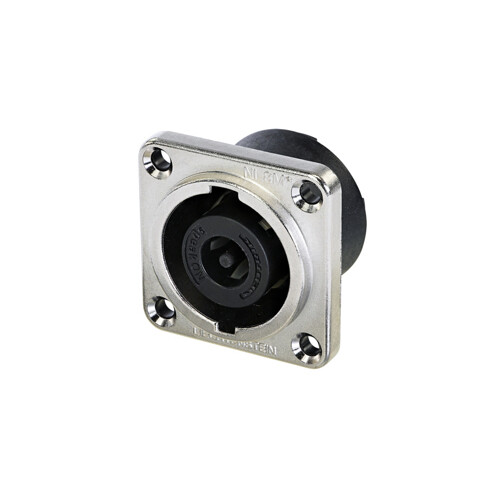

Neutrik NL8MPRXX speakON 8-Pole Male Chassis Connector

Name: Neutrik NL8MPRXX speakON 8-Pole Male Chassis Connector
Brand: NEUTRIK
SKU: 7513
Availability: InStock

Brand: NEUTRIK

MFR: NL8MPRXX

Price Available Upon Request

8-Pole speakON Panel-Mount Connector
For Loudspeaker/Amp Interconnections
Metal Locking System
Current Rating of 30A RMS
Glass-Reinforced for Durability
Metal G-Sized Flange
Countersunk Through-Holes
Airtight Design

Items Included

Neutrik NL8MPRXX speakON 8-Pole Male Chassis Connector

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Audio Connectors

Install your own speakON chassis connector with the Neutrik NL8MPRXX, an 8-pole speakON panel-mount male connector intended for use with loudspeaker and amplifier interconnections. It features a metal locking system, and only makes contact once fully clicked into place. This receptacle has a current rating of 30A, and features glass-reinforced materials to maintain durability over time. This particular model offers a metal G-sized flange as well as countersunk through-holes and 3/16" flat tabs. Its design, when fully locked, is airtight.

Benefits

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Current rating 30A RMS
Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
Precise keyway for secure mating
Airtight design—optimized for speaker applications

General

Compatibility

Not Specified by Manufacturer

Environmental

Operating Temperature

-22 to 176°F / -30 to 80°C

Physical
