Brand: NEUTRIK
MFR: NP2RX-AU-SILENT

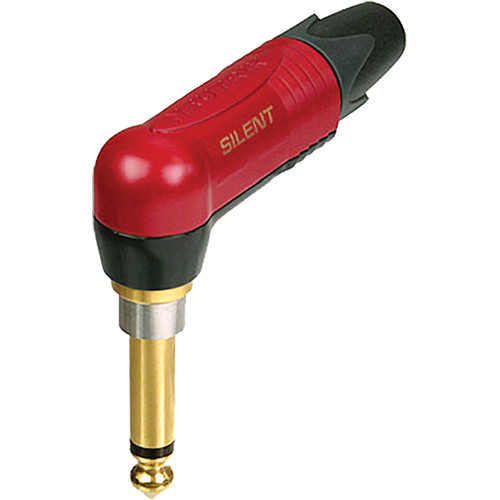

Neutrik NP2RX-AU-SILENT 2-Pole Right-Angle 1/4" Professional Phone Plug
Categories: Audio Connectors

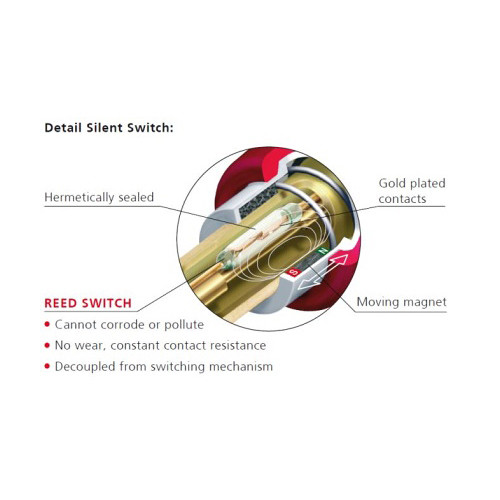

The Neutrik NP2RX-AU-SILENT 2-Pole Right-Angle 1/4" Professional Phone Plug automatically mutes (shorts) an instrument cable to avoid pops and squeals when changing the instrument under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10,000 mating cycles. This plug features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.
| Connection Type | Plug |
| Gender | Male |
| Electrical | |
| Contact Resistance | Depends on mating connector mΩ (inner) |
| Dielectric Strength | 1 kVDC |
| Insulation Resistance | >2 GΩ (initial) |
| Rated Current Per Contact | Depends on mating connector A |
| Rated Voltage | 50 V |
| Mechanical | |
| Cable O.D. | 0.15 to 0.27" (4 to 7 mm) |
| Lifetime | >1000 mating cycles |
| Wire Size | 1 mm², 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact Plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Partly red coated, black chromium plated |
| Strain Relief | Polyacetal (POM) |
| Standard Compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -4 to 149˚F (-20 to 65 °C) |
| Dimensions | 2.4 x 2.18" (61.3 x 55.5 mm) Plug Diameter : 0.25" (6.3 mm) |
Packaging Info
| Package Weight | 0.075 lb |
| Box Dimensions (LxWxH) | 2.9 x 1.85 x 0.65" |
