Name: Proaim 3-Axis Motorized Dutch/Roll/Pan/Tilt Head
Brand: Proaim
SKU: SF-2443-NPCB
Availability: InStock

Brand: Proaim

MFR: PT-SPIN-3

SKU: SF-2443-NPCB

Price Available Upon Request

33 lb Load Capacity
360° Pan, Tilt, and Roll
4.5°/sec Minimum Speed
72°/sec Maximum Pan Speed
36°/sec Maximum Tilt Speed
45°/sec Maximum Roll Speed

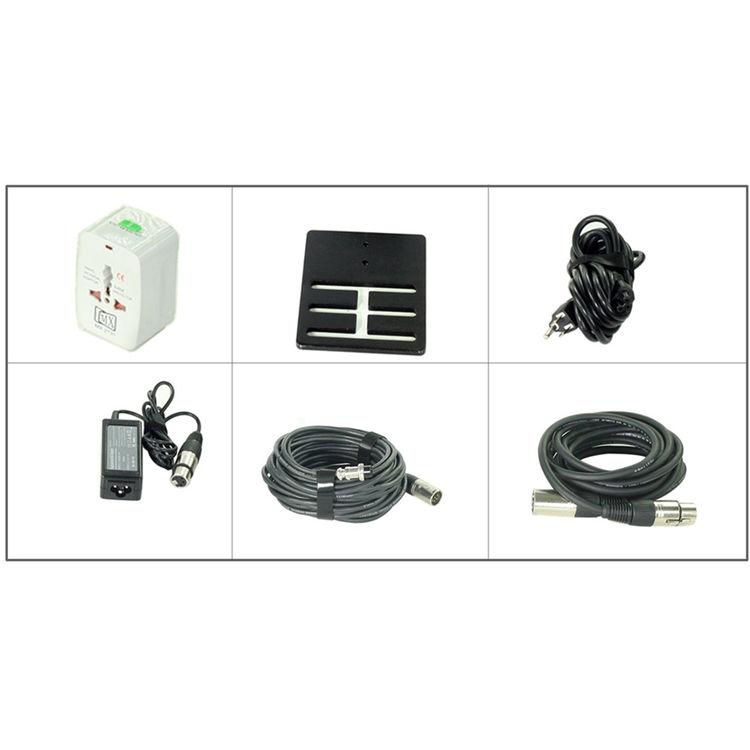

Items Included

Proaim 3-Axis Motorized Dutch/Roll/Pan/Tilt Head
Joystick Control Unit
AC to 12 VDC Adapter
US Power Cord
Worldwide Power Adapter
4-Pin XLR Cord (9.8')
Control Cable (49')
Camera Balance Plate
1/4"-20 Camera Tie-Down Screw
Storage Bag

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Cranes & Jibs

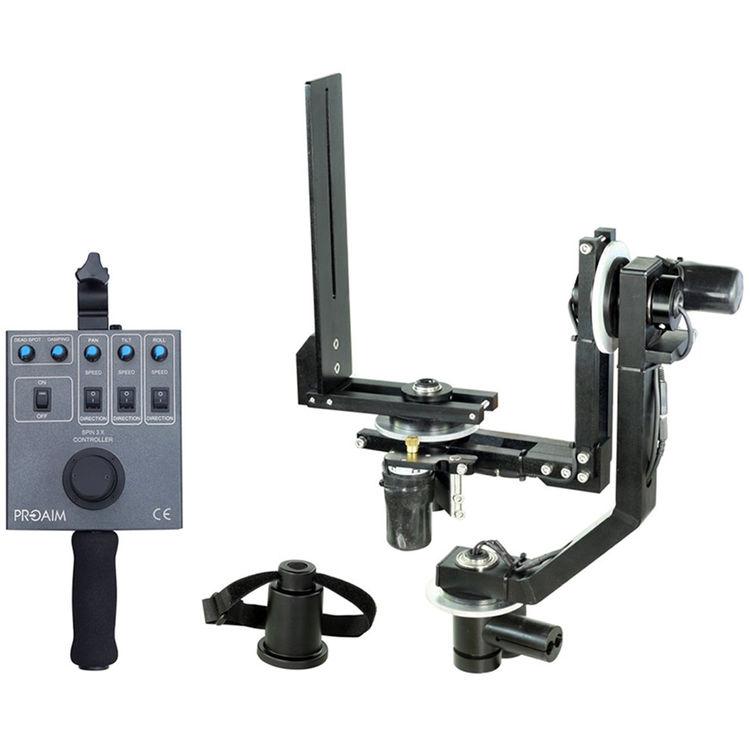

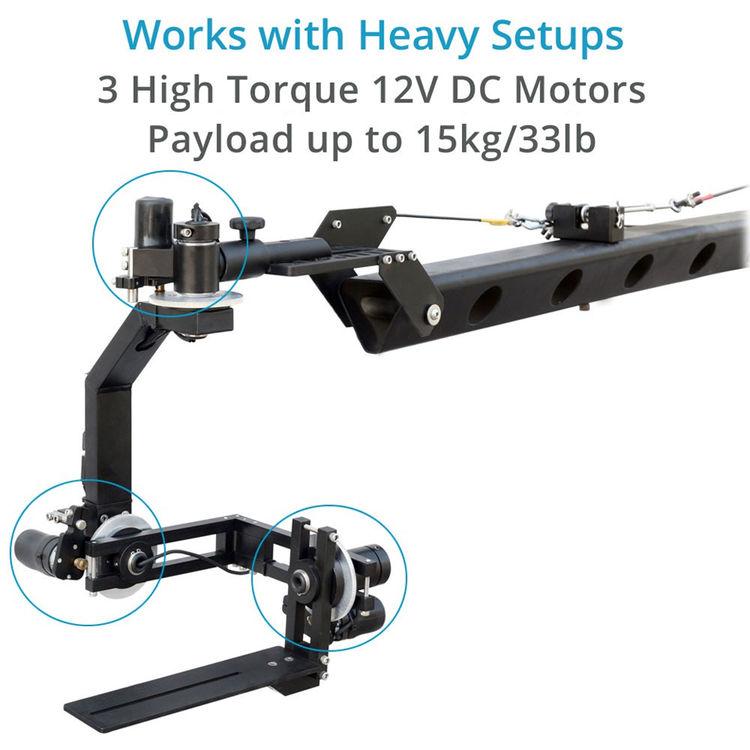

The Proaim 3-Axis Motorized Dutch/Roll/Pan/Tilt Head is a motorized pan/tilt/roll remote head for jibs and cranes than runs on 12 VDC from either a battery pack or the included AC power supply. It can safely handle camera packages weighing up to 33 lb when the camera is balanced on the camera plate. It is capable of 360° pans, tilts, and rolls, allowing you to create exciting cinematic camera moves., panning and tilting throughout 360° in each axis. The head has variable pan and tilt speeds, with a minimum speed of 4.5° per second on each axis for slow and languid moves.

For faster camera moves, the head can complete a complete pan rotation in a mere 5 seconds, a complete tilt rotation in 10 seconds, and a roll of your properly balanced and secured camera in 8 seconds. The motor cabling travels inside the bearings, so you don't have to worry about your cables twisting and binding. Included with the head are the joystick controller, a 9.8' long 4-pin XLR power cable for working from batteries (not included), a 12 VDC power supply, and a worldwide AC power converter. The included control cable is 49' long, allowing you to work on a wide variety of jibs and cranes. The head comes in a soft-sided carry bag.

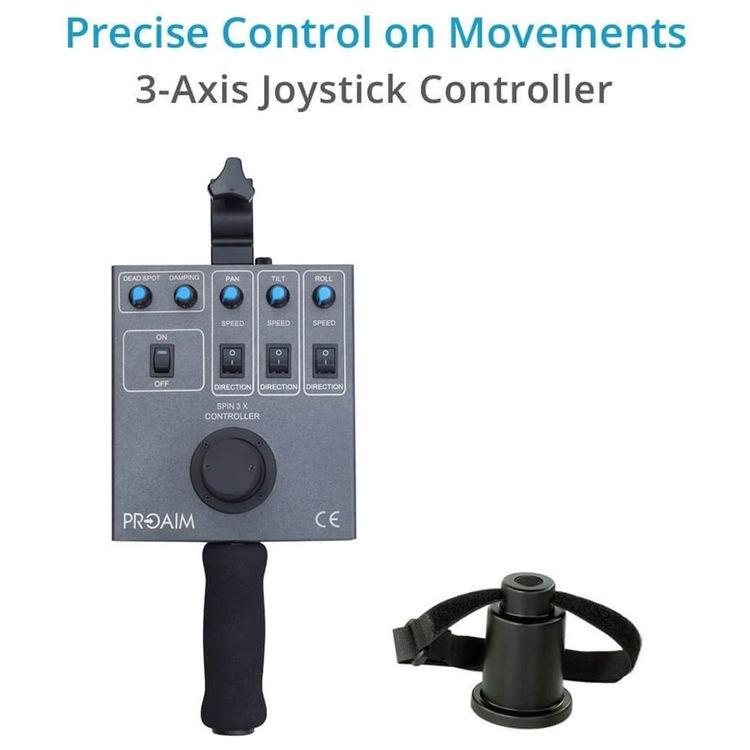

The joystick has a proportionate response, meaning the further from rest that you push it the faster the head will move in that axis

The controller has knobs that allow you to adjust the speed of the motors as well as the dead spot, and damping controls for feathered starts and stops

Switches on the joystick controller allow you to change the direction of the motors

The camera plate has adjustment slots that let you balance the camera for maximum operation with minimum strain on the system

Compatibility

Load Capacity

33 lb / 15 kg

Controller

Controller Style	Wired Controller
Display	No
Inputs/Outputs	Power: 1 x XLR 6-Pin Input

Head

Rotation Range	Yaw (Pan): 360° Roll: 360° Pitch (Tilt): 360°
Follow Speed	Pan: 4.5 to 72°/s Tilt: 4.5 to 36°/s Roll: 4.5 to 45°/s

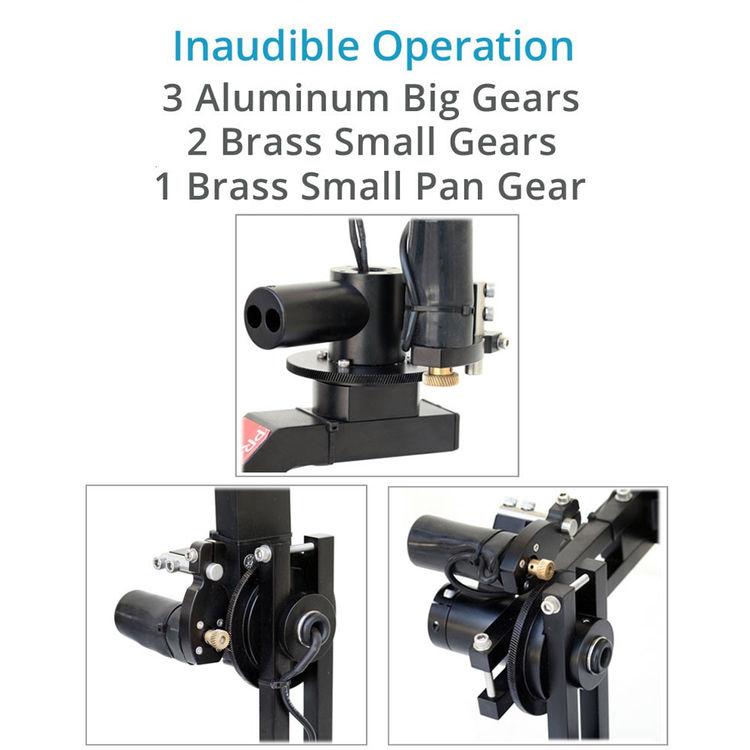

Gears	1 x Brass (0.87" / 2.2 cm) 2 x Brass (0.55" / 1.4 cm) 3 x Silver (3.94" / 10 cm)
Motor Power Input	Type: XLR 4-Pin Voltage: 12 VDC
Materials	Aluminum
Dimensions	Height (Minimum): 23.5" / 59.69 cm Height (Fully Extended): 25" / 63.5 cm Plate: 12 x 3 x " / 30.48 x 7.62 x cm
Weight	12.6 lb / 5.7 kg
