Categories: Cranes & Jibs

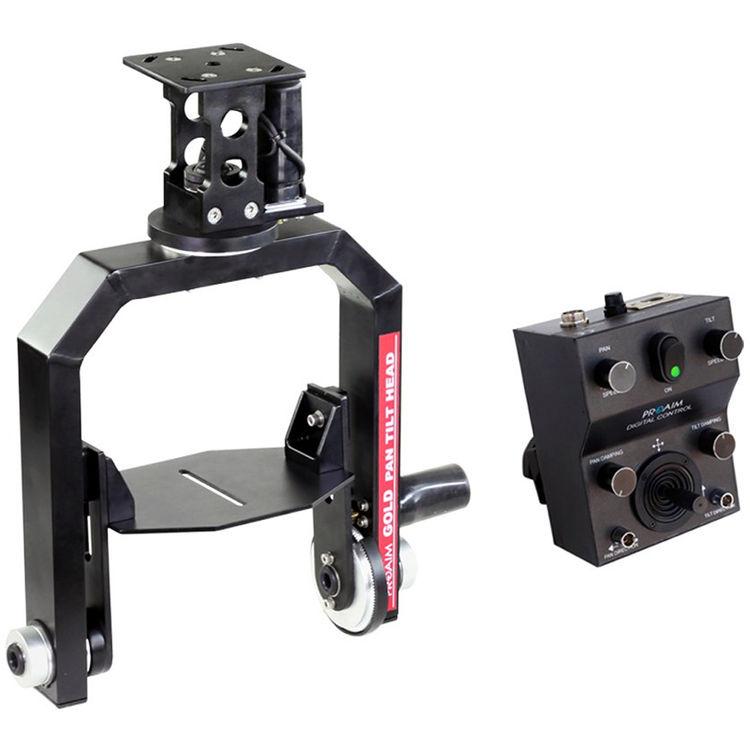

The Proaim Gold Pan/Tilt Head with 12V Joystick Control Box Is a motorized pan/tilt remote head for jibs and cranes. It can safely handle camera packages weighing up to 16.5 pounds, is capable of panning throughout 360°, and depending on camera configuration, it can also move 360° through the tilt axis.

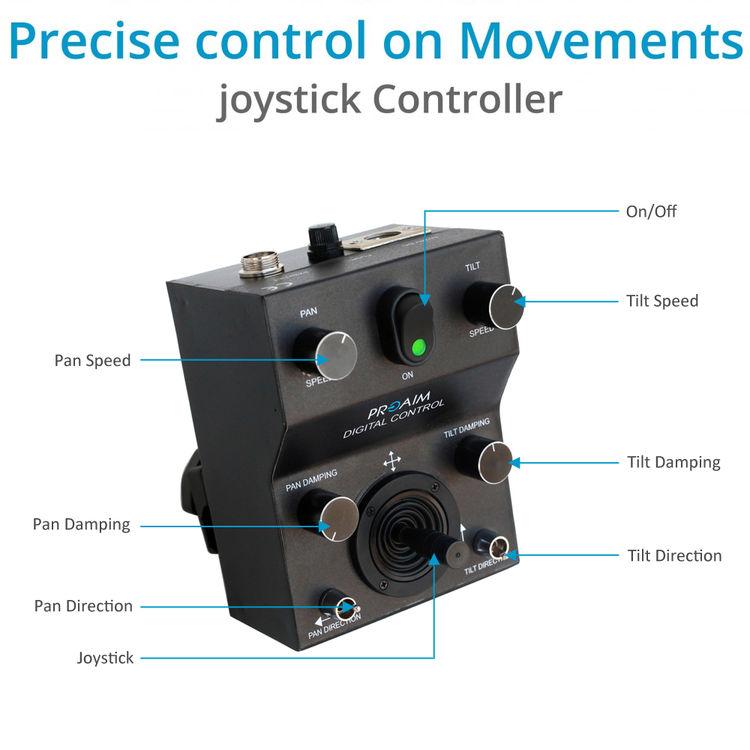

The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and languid pans and tilts. When more alacrity is necessary, the head has a maximum pan/tilt speed of 51° per second. Included with the head are the joystick controller, a short 4-pin XLR power cable for working from batteries, a 12V power supply, and a worldwide AC power converter. The included control cable is 49' long, allowing you to work on a wide variety of jibs and cranes.
| Load Capacity | 16.5 lb / 7.5 kg |
| Controller Style | Wired Controller |
| Rotation Range | Yaw (Pan): 360° Pitch (Tilt): 360° |
| Follow Speed | Pan/Tilt: 6 to 51°/s |

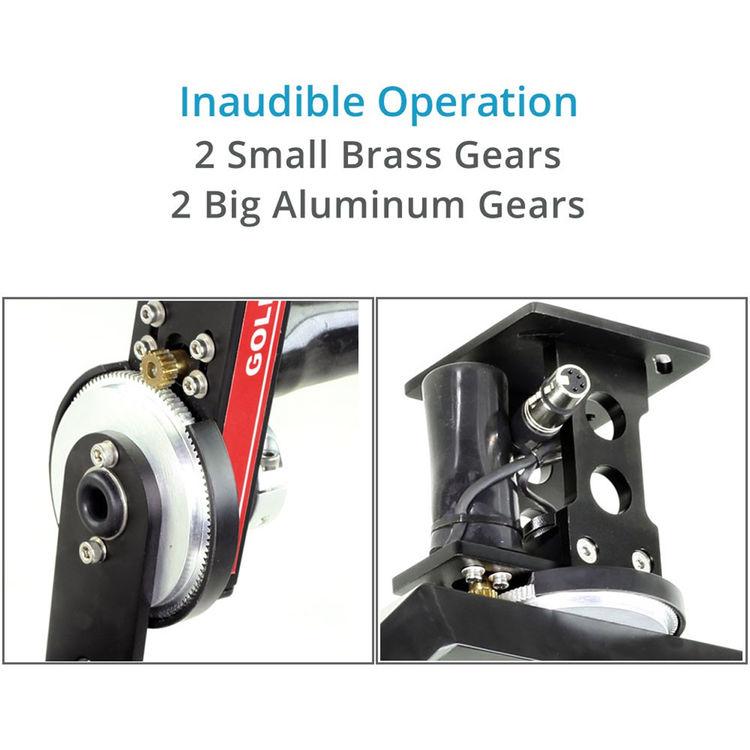

| Gears | 2 x Brass (0.51" / 13 mm) 2 x Aluminum (3.46" / 88 mm) |
| Motor Power Input | Type: XLR 4-Pin Voltage: 12 VDC |
| Materials | Aluminum |

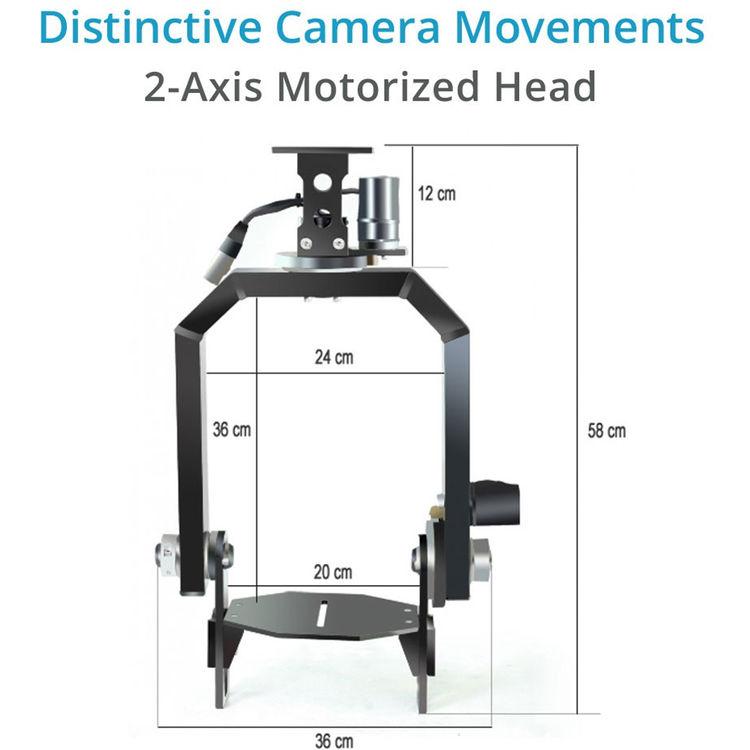

| Dimensions | Height (Minimum): 18" / 45.72 cm Height (Fully Extended): 23" / 58.42 cm |
| Weight | 8.6 lb / 3.9 kg |
| Package Weight | 19.39 lb |
| Box Dimensions (LxWxH) | 20 x 16.6 x 8.4" |
