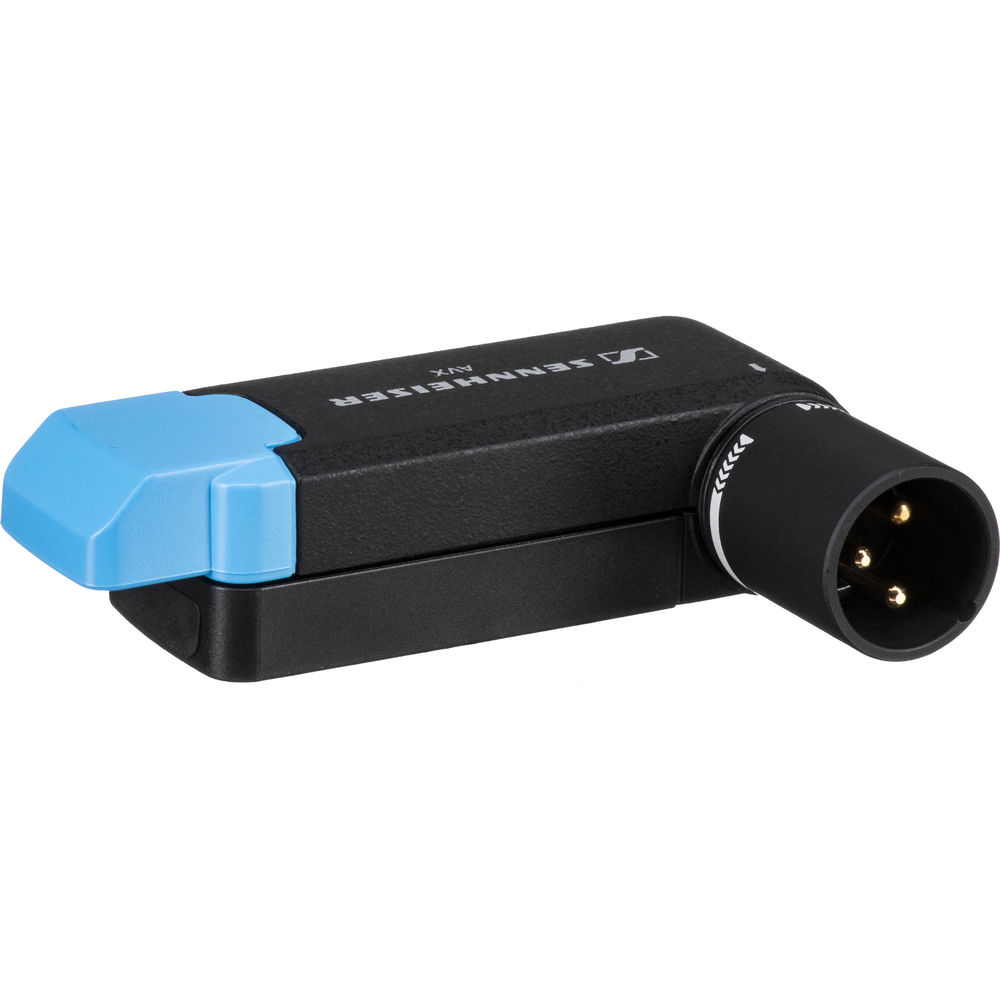

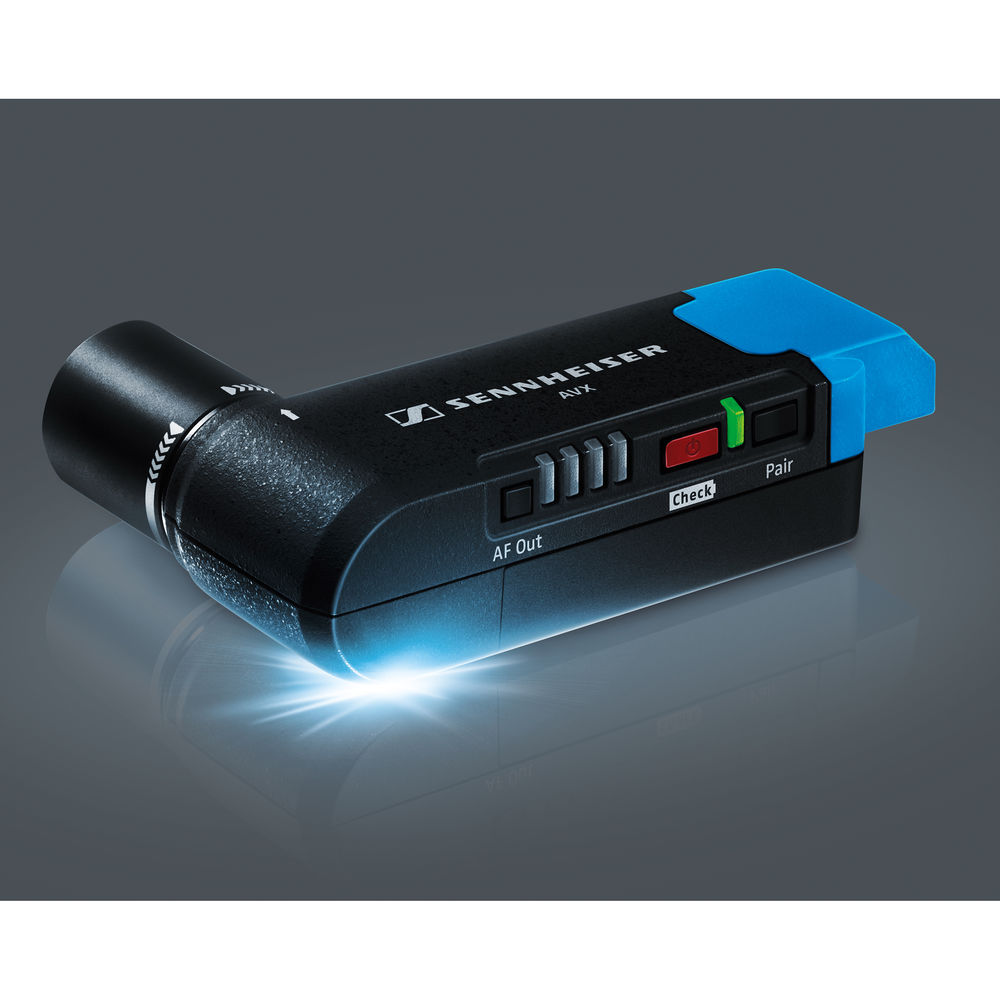

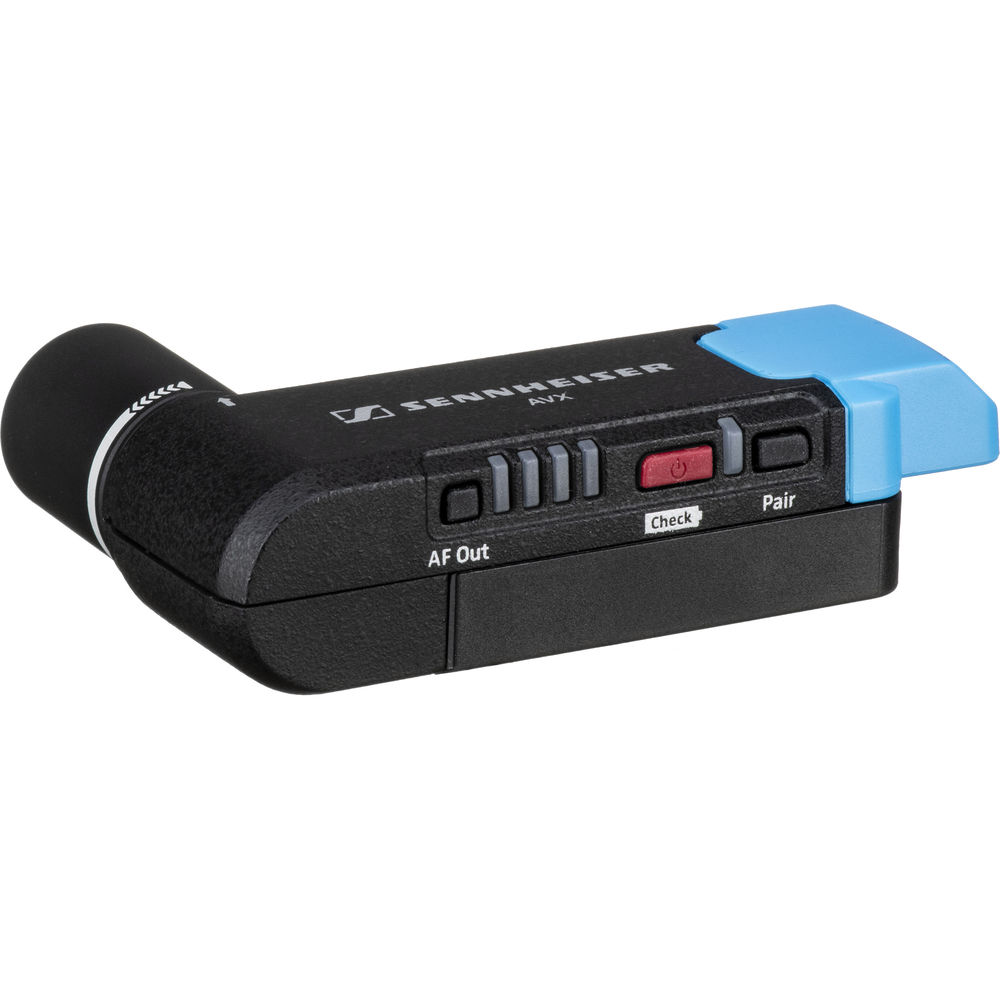

Developed in collaboration with experts for Video and Electronic News Gathering (ENG) applications, the Sennheiser AVX EKP Camera Mount Digital Pluggable Receiver features a power amp that connects to the camera's XLR microphone input without affecting other microphone inputs. Camera Accessories. The receiver can rotate clockwise and counterclockwise. It snaps into place with a non-rigid design.
The entire
digital receiver is self-configuring, making installation simple and easy, while the link protection system helps ensure good transmission. To save battery power, the unit will automatically turn on and off by detecting the +48V phantom power of the camera.
It also automatically adjusts the sensitivity of the camera without having to adjust the volume of the wireless microphone.
The
receiver comes with a standard operating system that includes a BA 20 power pack, light stand and XLR to 3.5mm adapter for DSLR, belt clip and USB cable.
Optimized Dynamic Range
Manages overload and distortions
Plug and Record
Enables fast setup
Link Protection
Maintains reliable transmission
Plugs Directly Into XLR Audio Input
Eliminates loose dangling cables for a more streamlined setup
Ultracompact Receiver
Offers less weight with better space savings
Switches On/Off by P48 Phantom Power
Maximizes operation time
Auto Frequency Management
Streamlines and simplifies the setup process
AES 256 Encryption
Protects the system from signal interception by unauthorized parties
License Free Operation
Provides a convenient wireless transmission solution
Metal Housing
Enables daily use for professional applications
| Wireless Technology | Digital |
| Diversity | TDMA |
| RF Frequency Band | 1920 to 1930 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Transmitters per Band | 8 |
| Latency | 19 ms |
| Modulation | GFSK |
| SNR | >90 dBA |
| THD | 0.1 % |
Receiver
| Receiver Type | Plug-In |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output |
| Gain Range | -30 to 0 dB |
| Frequency Response | 20 Hz to 20 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | Micro-USB Female (Charging) |
| Standalone Audio Interface Capable | No |
| Approximate RF Sensitivity | -90 dBm |
| RF Output Power | 30 mW |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 1 x Sennheiser Battery Pack (Included) |
| Approx. Battery Life | 4 Hours |
| Housing | Metal |
| Weight | 3.1 oz / 87 g |
Packaging Info
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 12.7 x 6.75 x 3.05" |
