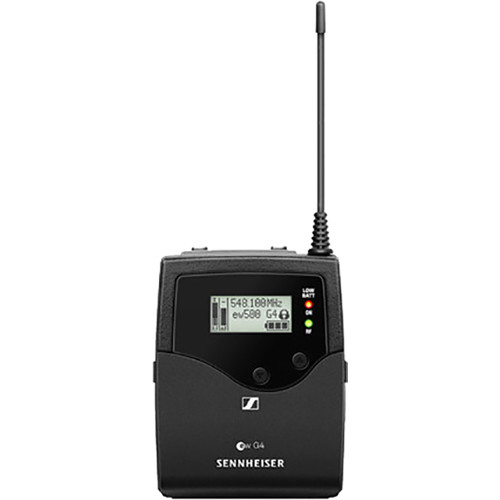

The black EK 500 G4 Pro Wireless Camera-Mount Receiver from Sennheiser operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately) as part of a wireless RF transmission system for live stage, theater, film, video, and presentation applications.
The camera-mount receiver—with adaptive diversity technology—features 2880 frequencies and is tunable in 25 MHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user-programmable frequencies. This receiver is built with a menu-driven backlit LCD display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more.
Also, the receiver is configured and synchronized with the transmitter via an integrated infrared interface, or it can be programmed in the receiver menu. Power is supplied to the receiver by two included 1.5V AA size batteries. Finally, the EK 500 G4 receiver is built with a rugged metal housing. A 3.5mm cable, XLR to 3.5mm cable, and a CA 2 camera adapter are also included.
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 256 |
| Diversity | Smart Diversity |
| RF Frequency Band | GW1: 558 to 608 MHz |
| RF Bandwidth | 50 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 32 |
| Timecode Support | No |
| Modulation | Wideband FM |
| SNR | >110 dBA |
| THD | ≤0.9 % |
Receiver
| Receiver Type | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 1 x Flexible Whip, Fixed (Top-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Phantom Power Protection | None |
| Network I/O | None |
| Network Protocols | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Approximate RF Sensitivity | 52 dB / 1.6 µV |
| RF Output Power | 10 / 30 / 50 mW |
| Squelch | 5 to 25 dBμV |
| Adjacent Channel Isolation | >65 dB |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 8 Hour |
| Display & Indicators | 1 x LED (Battery Status, Channel) 1 x LED (Battery Status) 1 x LED (RF Level) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm |
| Weight | 4.6 oz / 130 g |
Packaging Info
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 13.8 x 3.2 x 2.9" |
