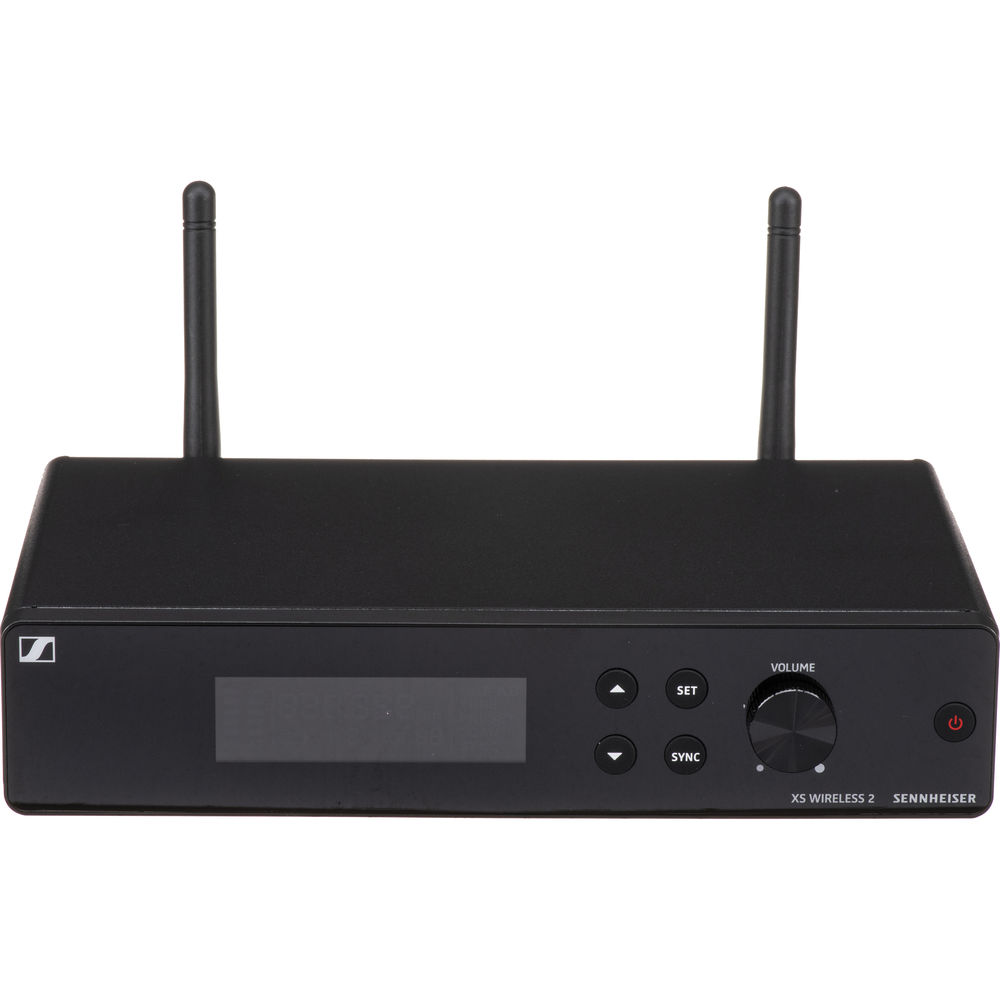

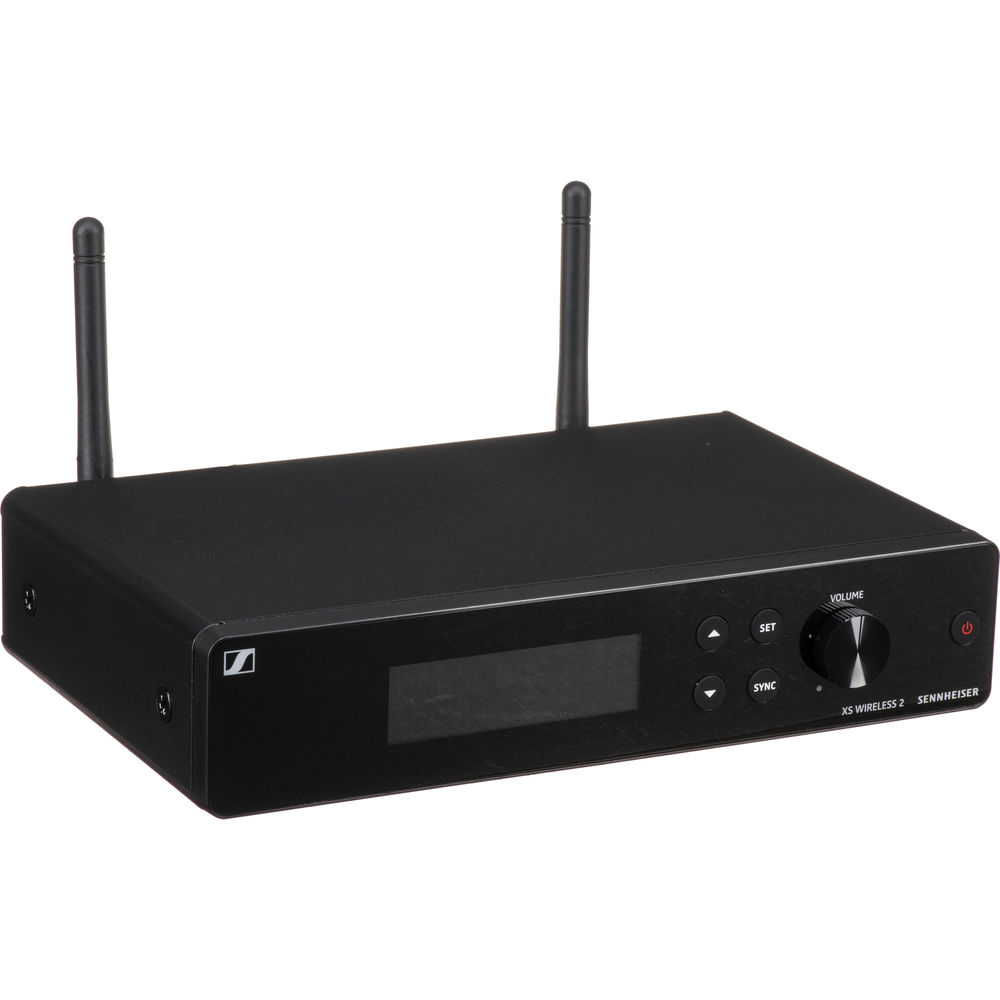

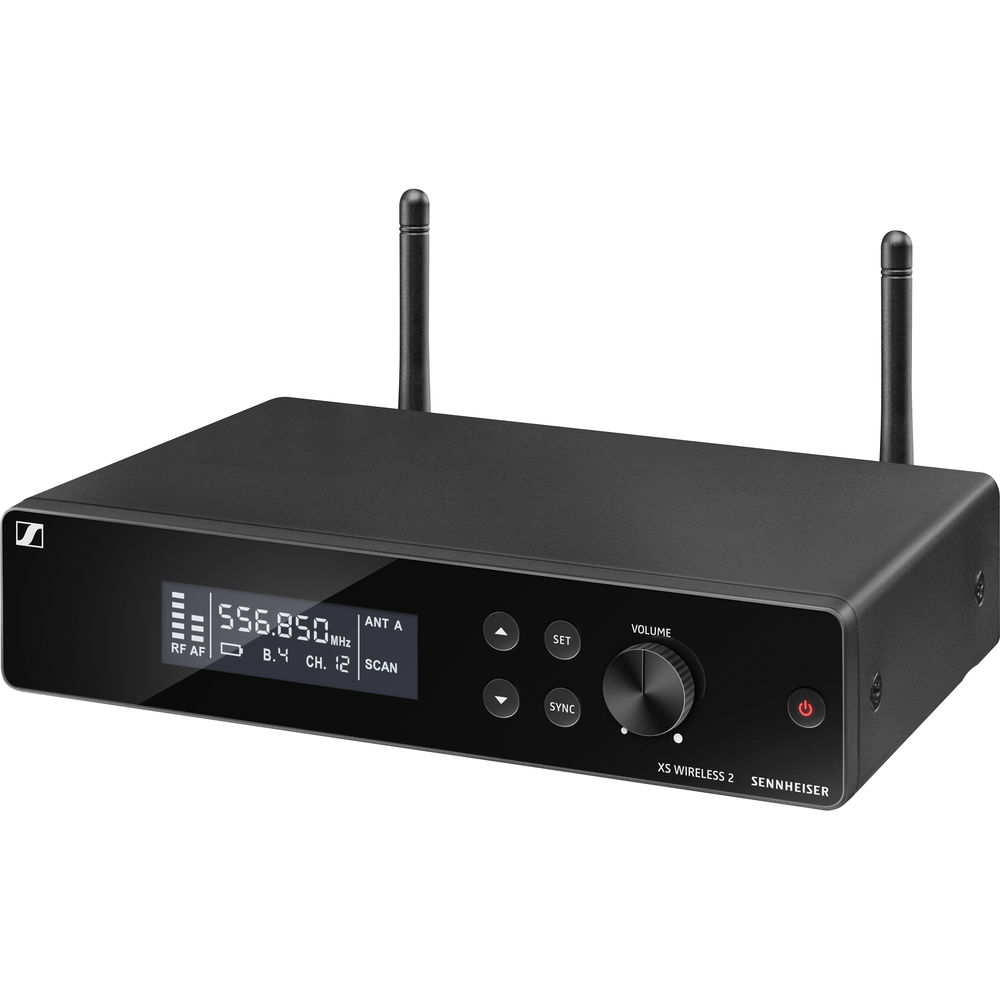

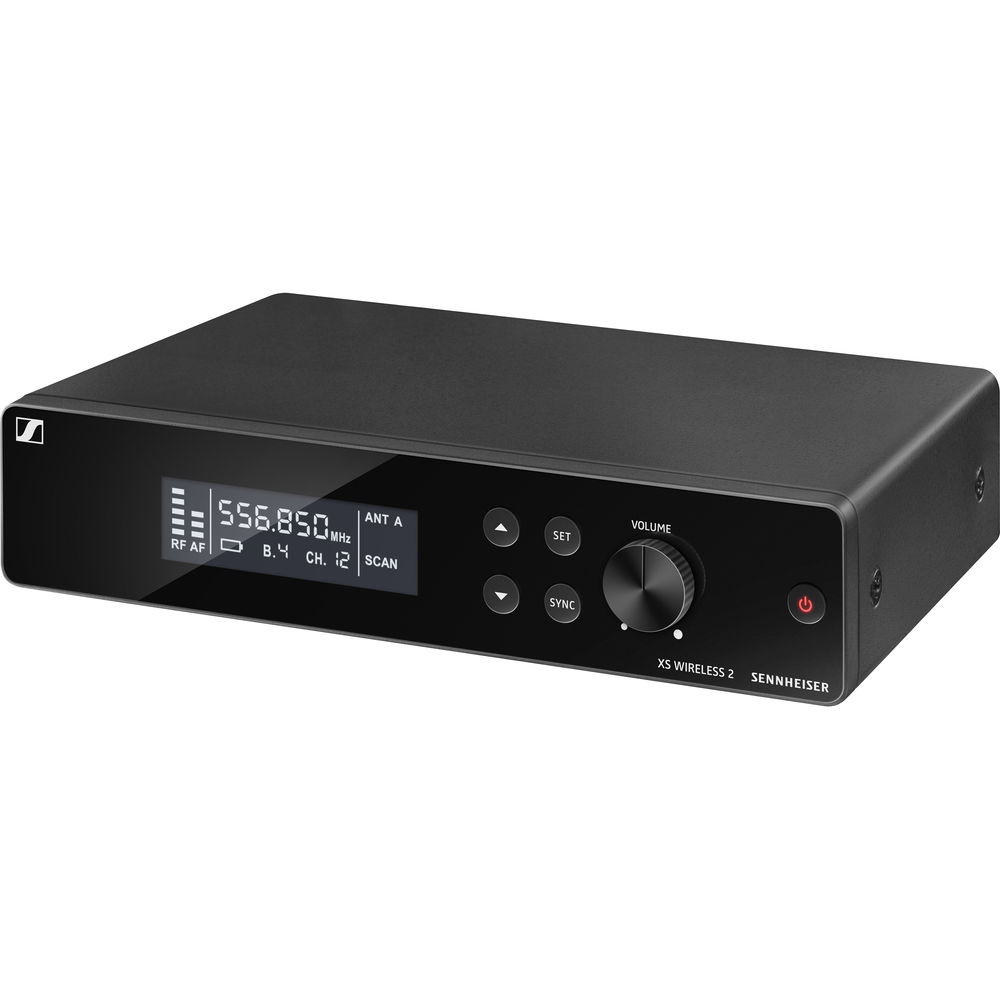

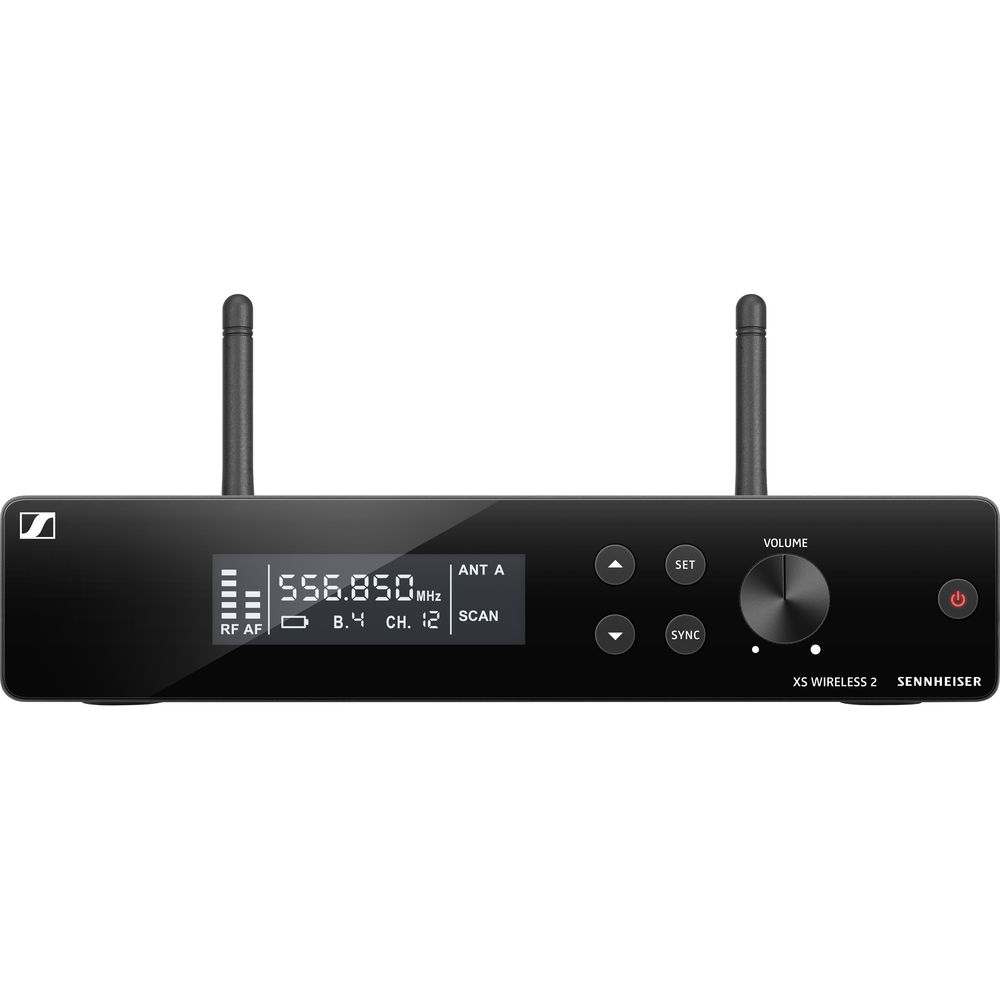

The EM-XSW 2 True Diversity Receiver from Sennheiser is an all-in-one series receiver for music, theater, and speech. It can be used when paired with a transmitter and microphone (sold separately) to capture audio for live sound applications. In addition, the series features automatic frequency selection that is simple to operate.
Featuring a metal receiver housing, detachable external antennas, and true diversity reception, the EM-XSW 2 receiver has 8 banks with 12 channels, and provides a detailed display with 960 user tuning frequencies. The receiver is offered with easy-to-use scanning and synchronization functions. Thanks to this intuitive operation, you'll almost forget it's wireless.
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 960 |
| Diversity | True Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | 24 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Modulation | FM |
Receiver
| Receiver Type | Tabletop |
| Antenna | 2 x External, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |

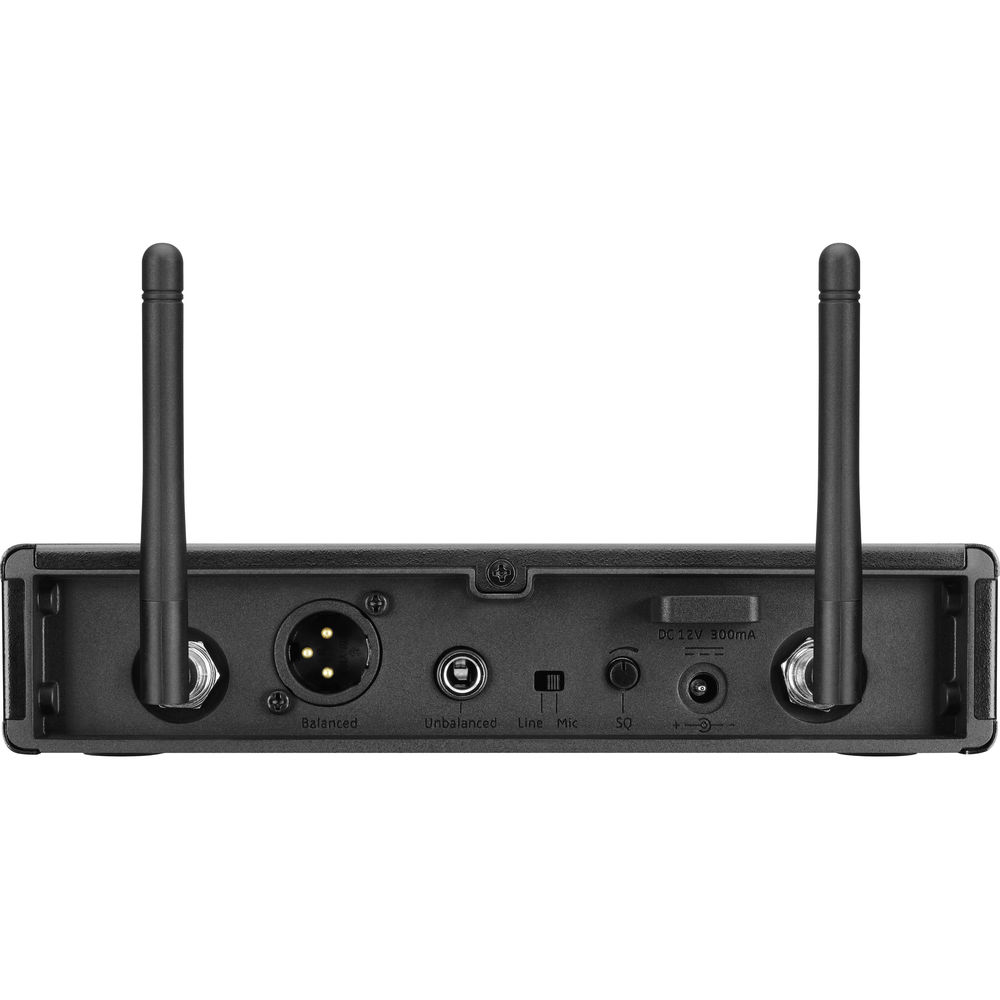

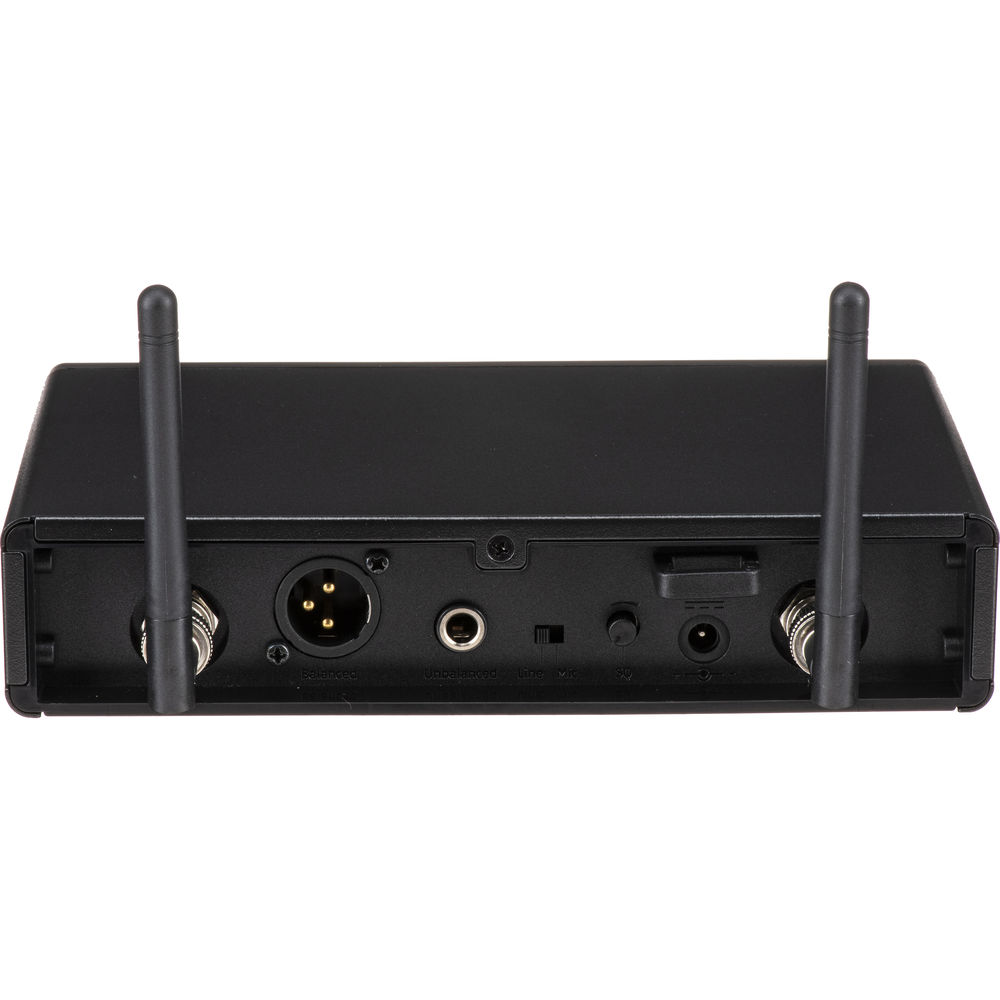

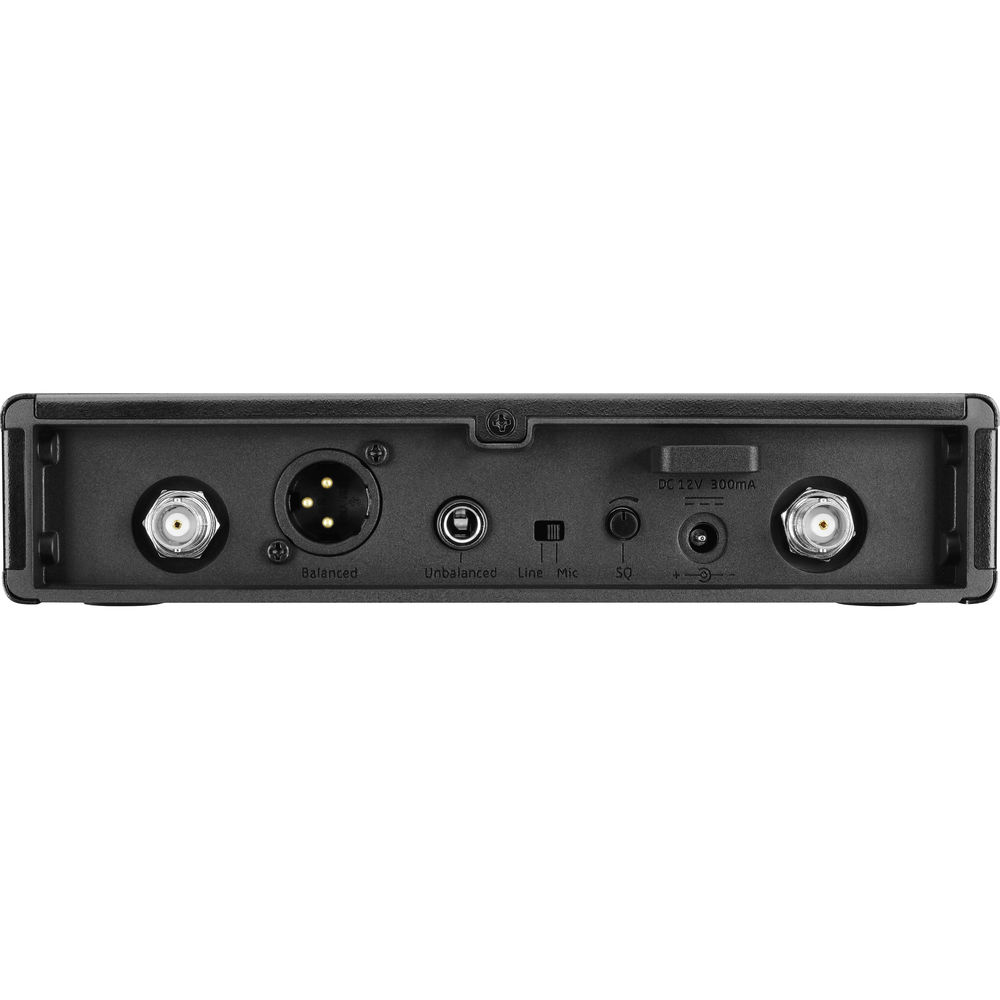

| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
| Gain Range | 40 dB (5 dB Steps) |
| Frequency Response | 50 Hz to 16 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| RF Principle | Double Superheterodyne |
| Approximate RF Sensitivity | 3 µV |
| Squelch | Adjustable, 3 to 28 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Housing | Metal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Dimensions | 7.9 x 1.7 x 5" / 200.7 x 43.2 x 127 mm |
| Weight | 24 oz / 680 g |
Packaging Info
| Package Weight | 2.9 lb |
| Box Dimensions (LxWxH) | 10.8 x 9.9 x 3.4" |
