Categories: Accessories

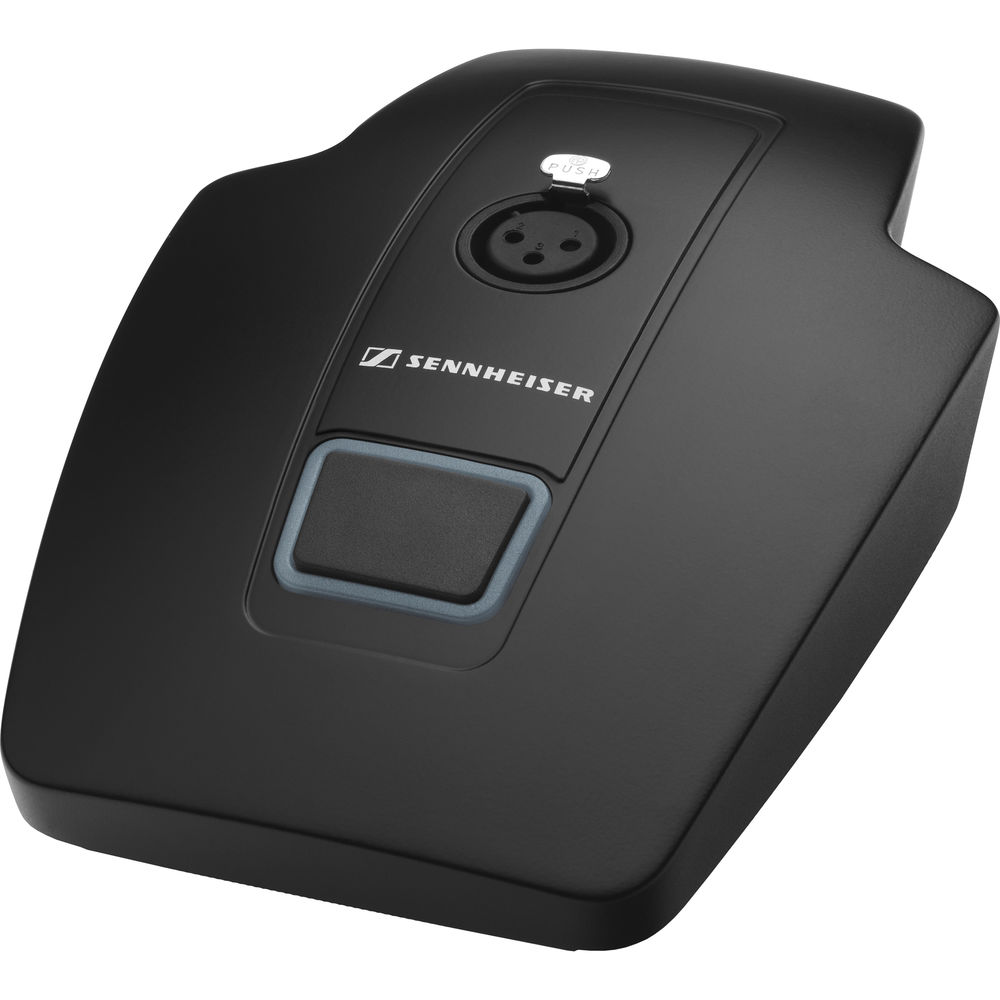

The black MAT 133-S Table Stand with Programmable Mic Button is for connecting and operating XLR gooseneck microphones. It is used in audio applications such as in lectures, boardrooms meeting rooms, and more. The MAT 133-S is built rugged and provides a XLR-3F microphone input and a XLR-3M microphone output. It features a bi-color LED for status indication and programmable button for On, On/Off, PTT, and PTM modes. This table stand uses 24 to 48V phantom power. The MAT 133-S stand is compatible with the MEG and MZH series goosenecks microphones.
| Connector | Mic In: XLR-3F Mic Out: XLR-3M Logic: Clip Contact for Logic, Pin Assignment: Trigger Signal at Logic Connector: Logic in (external LED control), ground, logic out (switch signal) |
| Phantom Power Requirement | P 24 to P 48 |
| Operating Temperature | 14 to 122° F (-10 to 50° C) |
| Current Consumption | 3.7 mA |
| Output Voltage | Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V Logic in: High level input voltage > 2.0 V, low level input voltage < 0.8 V |
| LED Status Indicator | Light Ring: Red / Green |
| Dimensions | 4.72 x 6.69 x 1.69" (11.99 x 16.99 x 4.29 cm) |
| Weight | 2.67 lb (1211.09 g) |
Packaging Info
| Package Weight | 3.5 lb |
| Box Dimensions (LxWxH) | 9.95 x 8.75 x 3.9" |
