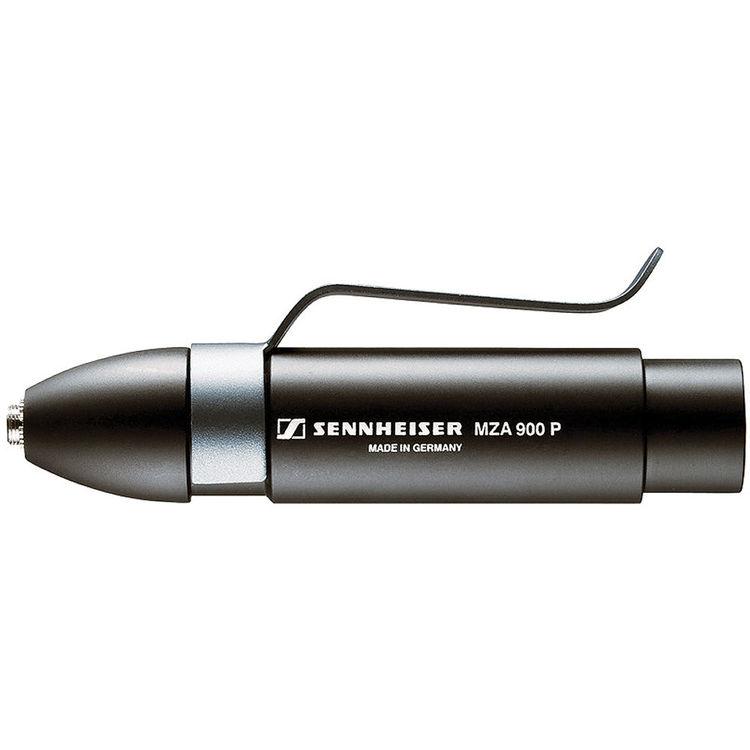

The Sennheiser MZA900P-4 In-Line Preamplifier is an in-line power supply and preamplifier designed for use with prepolarized condenser microphones featuring a lockable 3-pin LEMO connector. The MZA900P-4 effectively converts 48V phantom power and establishes a 3-pin XLR connection for the Sennheiser 2000, 3000 & 5000 series compatible microphones.
| Frequency Response | 20Hz - 20kHz |
| Gain | 0/-12 dB |
| Output Voltage | 1.8V (P48), 0.6V (P12) @ 0 dB gain |
| Output Impedance | 100 Ohm Min. terminating impedance: 5 kΩ (P12 - P48) @ 0 dB gain; 2 kΩ (P12 - P48) @ -12 dB gain |
| Phantom Power | P12 - P48, 10 - 52V, 2.6 - 2.8mA |
| Operating Temperature | -4 - 140°F (-20 - 60°C) |
| Dimensions | 0.86 x 3.93" (22 x 100mm) (Diameter x Length) |
| Weight | 2.1 oz (60 g) |
| Package Weight | 0.3 lb |
| Box Dimensions (LxWxH) | 6 x 4.4 x 1.5" |
