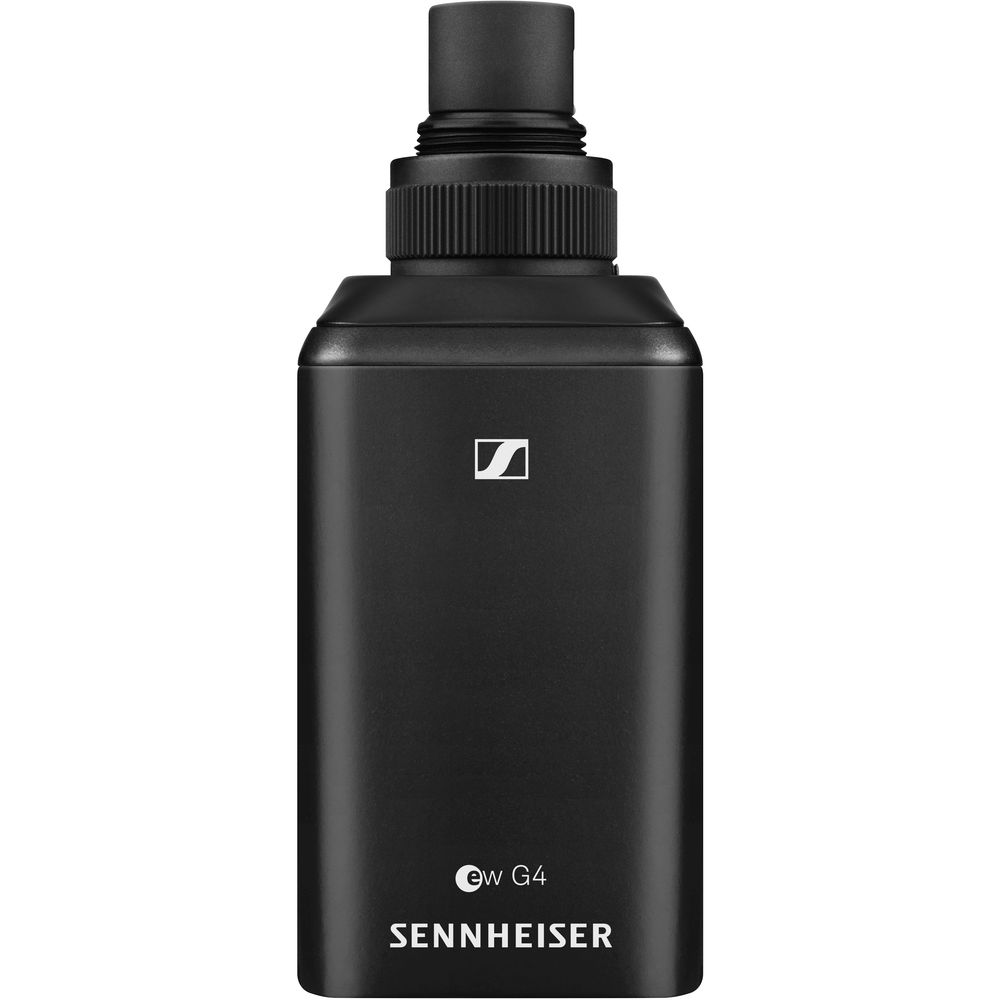

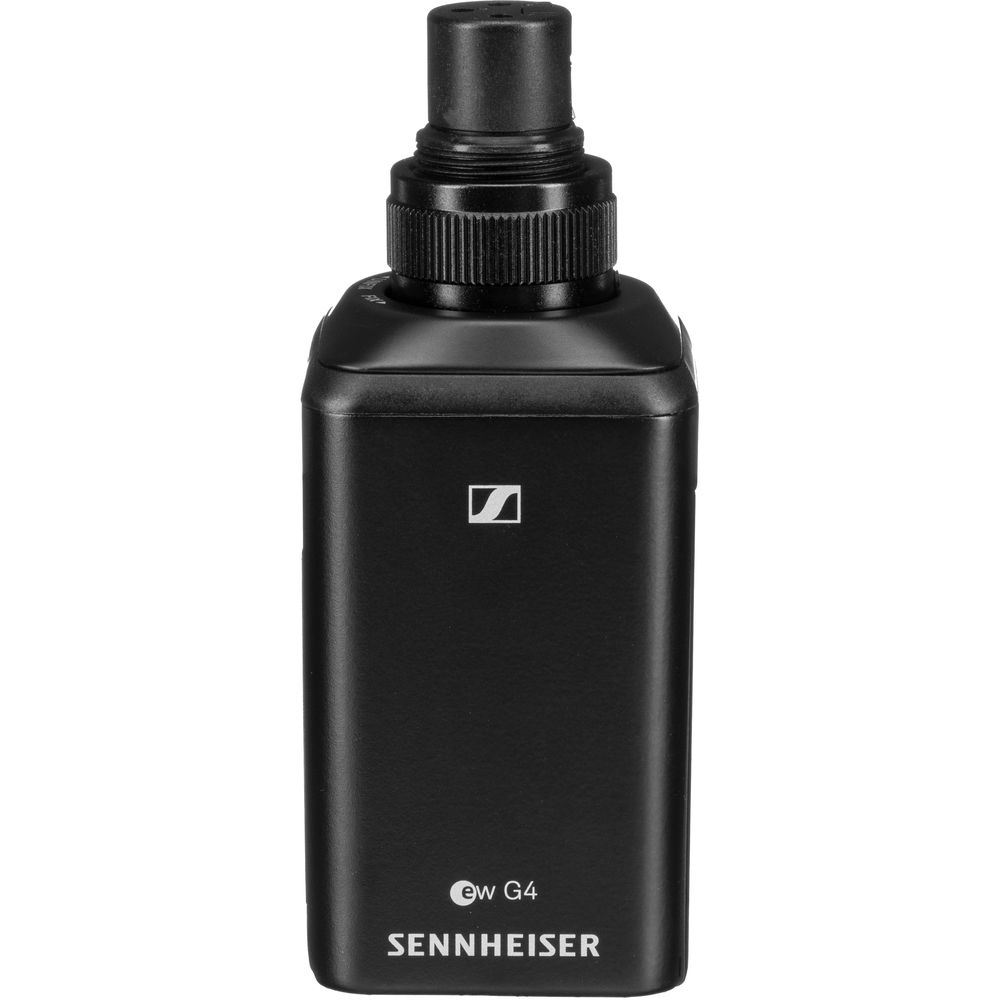

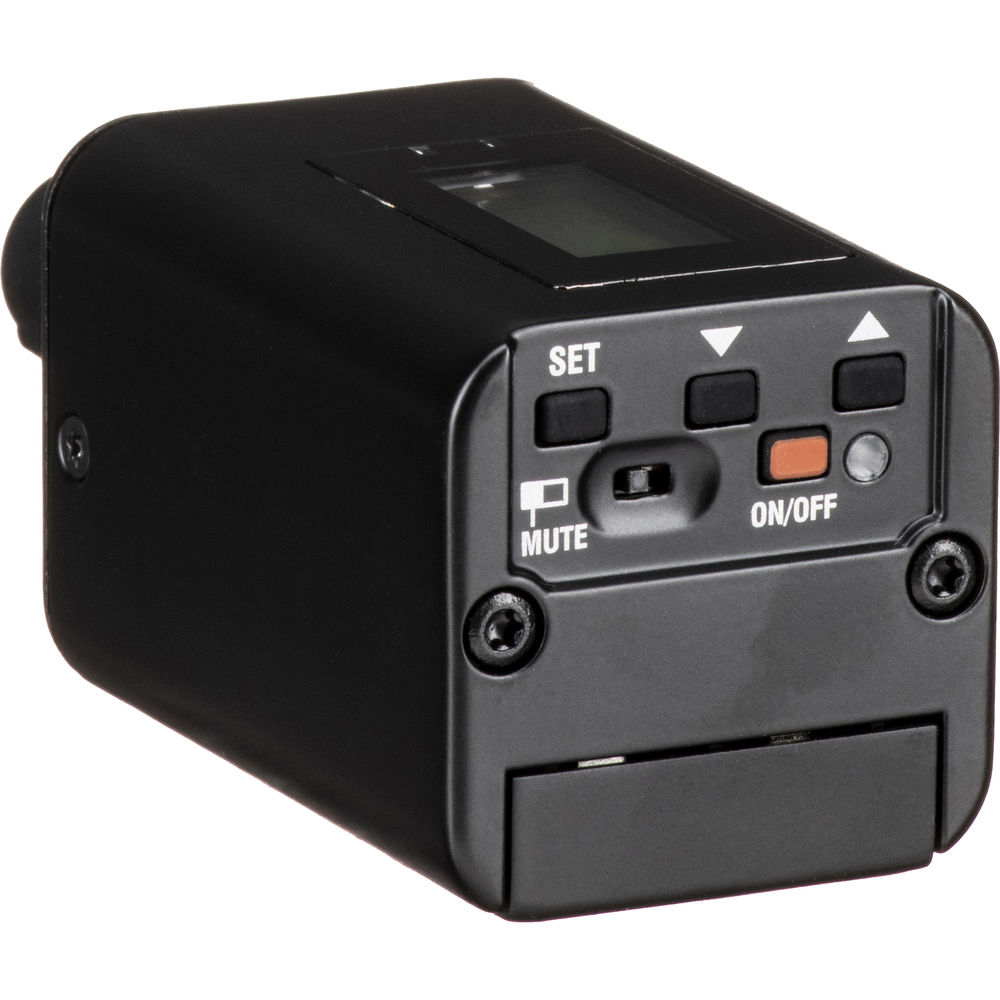

Sennheiser's SKP 500 G4 Pro wireless plug-in transmitter is the latest member of the evolutionary wireless transmitter series. It operates in the UHF frequency range and can be used with an integrated receiver and electronic or condenser handheld microphone (sold separately) as part of wireless RF transmission for stage, drama, film and exhibition.
The

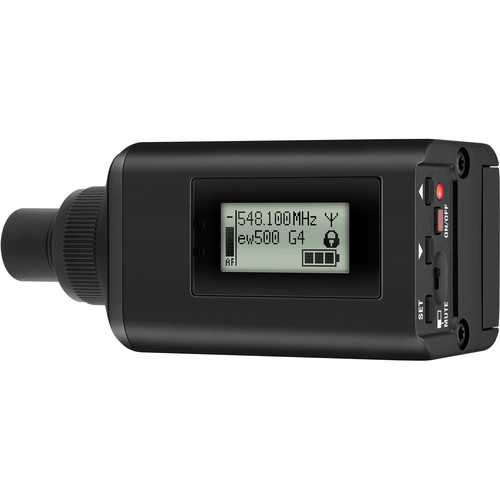

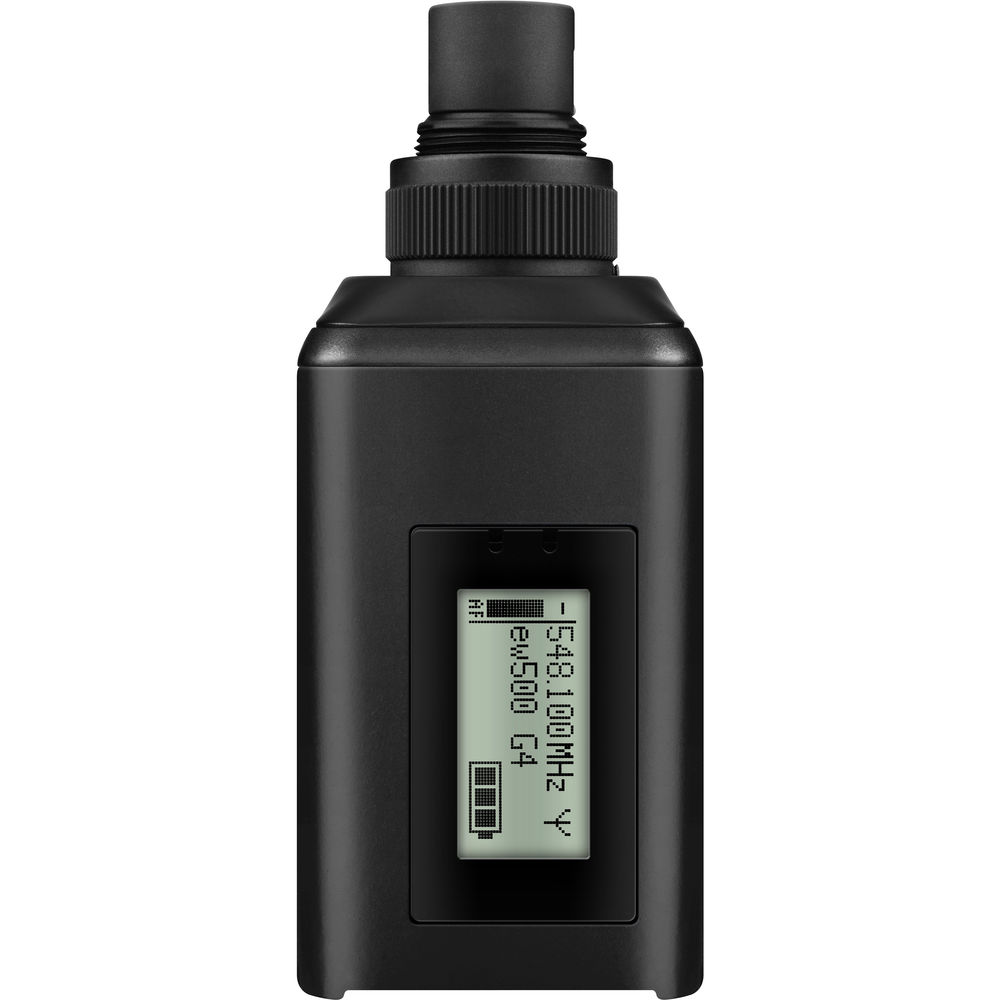

plug-in transmitter features switchable 48V phantom power, 3520 frequencies adjustable in 25 MHz steps, 20 fixed frequency banks, 32 frequency presets, and 6 user accounts (up to 32 users selected programmed frequency). The transmitter's menu-driven backlit display shows current frequency, bank frequency and phone number, AF level indicator, meter indicator, status indicator, transmission, non-functionality, battery status, and more.
In addition, the plug-in transmitter integrates the Sennheiser HDX compression system, a deactivated pilot tone squelch and is equipped with a frequency of 80 Hz to 18 kHz.
Finally, the transmitter is powered by a 1.5 V AA battery or an optional Sennheiser BA 2015 rechargeable battery. Comes with a belt clip bag. This product is also compatible with the Auray UPOH-B Universal Plug-In Transmitter Case.
| Wireless Technology | Analog UHF |
| RF Frequency Band | AW+: 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Built-In Recorder | No |
| Timecode Support | No |
| Encryption | None |
| Modulation | Wideband FM |
| SNR | ≥120 dBA |
| THD | <0.9 % |
Transmitter
| Transmitter Type | Plug-On |
| RF Output Power | Up to 50 mW (Switchable) |
| Audio I/O | 1 x XLR 3-Pin Female Unbalanced Input (Lockable) |
| Included Cable Connector | None |
| Phantom Power | +48 V |
| Pad | None |
| Muting | None |
| Audio Input Level | 6 V RMS (Max) |
| Auto-Level Control | Yes |
| Gain Range | 48 dB (6 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 18,000 Hz |
| Sync Method | IR |
| Antenna | 1 x Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Battery Pack (Not Included) |
| Approx. Battery Life | 8 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Group, Power, Sync) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 4.1 x 1.7 x 1.7" / 105 x 43 x 43 mm |
| Weight | 6.9 oz / 195 g |
Packaging Info
| Package Weight | 0.99 lb |
| Box Dimensions (LxWxH) | 13.8 x 3.15 x 2.9" |
