Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver (UHF: 470 to 663 MHz, 1G4: 1435 to 1525 MHz)

Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver (UHF: 470 to 663 MHz, 1G4: 1435 to 1525 MHz)

Name: Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver (UHF: 470 to 663 MHz, 1G4: 1435 to 1525 MHz)
Brand: SENNHEISER
SKU: SF-2443-7RYW
Availability: InStock

Brand: SENNHEISER

MFR: Spectera Base Station

SKU: SF-2443-7RYW

Price Available Upon Request

High-End Productions, Touring Bands
Mic/Line Reception with IEM Transmission
64-Channel (32-In/32-Out), 1 RU Base
Ultrawide UHF + 1.4 GHz Tuning Range
WMAS 6/8 MHz Carrier Technology
11 Audio Link Modes, 48 and 96 kHz Audio
Redundant Power, Dante, MADI (Optional)
4 Redundant Antenna Ports
AES 256 Encryption (Audio and Control)
Control/Monitoring via LinkDesk Software

Items Included

Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver (UHF: 470 to 663 MHz, 1G4: 1435 to 1525 MHz)
3 x Mains Cable (EU, UK, and US Plugs)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Receivers

64 Channels of Wireless Mic/Line and IEM/IFB Audio in a Single 1 RU Rack Unit

Part of the Spectera wireless ecosystem for large events, high-end productions, rental houses, large-scale installs, and touring bands, the Sennheiser Spectera Base Station (UHF: 470 to 663 MHz, 1G4: 1435 to 1525 MHz) is a wideband, bidirectional wireless transceiver, providing audio professionals with up to 64 channels (32-in/32-out) of simultaneous mic/line transmission and IEM/IFB reception in a single 1 RU unit. The Base Station utilizes up to two WMAS wideband RF carriers (6/8 MHz) to accommodate all of the unit’s wireless transmission. It features built-in redundancy where it matters most: redundant power supplies, redundant Dante, optional redundant MADI audio I/O, and the ability to connect multiple antennas for redundancy, additional zone coverage, or additional spectrum capacity. Spectera's 11 Audio Link modes give you unprecedented control over latency, audio quality, and operating range—for each link. Spectera's bidirectional bodypacks (available separately) manage both in-ear monitor and mic/line signals simultaneously.

Note: The Base Station must be activated with a free-of-charge License for the zone of certified country. The license activation of the Base Station takes place through the LinkDesk software. A Spectera system is operational only after the Base Station has been activated with a license.

Up to 64 Channels in a Single Rack Unit

Spectera’s simultaneous 32-in / 32-out I/O enables advanced flexibility for wireless mic, instruments, and in-ear monitoring applications in a single system.
Configurations are completely flexible and can include up to 32 mic/line channels and 16 stereo IEMs serving your talent on stage or 32 interruptible foldback (IFB) across your crew.
With fully bidirectional communication between base station and hybrid mic/line transmitter/IEM receiver SEK bodypacks, you can set up a wireless mic system, a wireless IEM system, or both, all managed through one rack-mounted device and the LinkDesk desktop software for Mac and Windows.
This relieves technicians from managing huge racks of transmitters and receivers, piles of bodypacks, endless cabling, and painstaking load ins and load outs.

Enhanced Dropout Resistance

Utilizing Sennheiser's Wireless Multi-Channel Audio Systems (WMAS) technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz), Spectera is vastly more resistant to dropouts from RF fading than traditional narrowband systems.
WMAS technology accommodates an entire production in a single wideband RF carrier.

Robust Redundancy for Uncompromising Reliability

Pro audio engineers will appreciate the robust redundancy built into the Spectera Base Station. This single rack unit device sports redundant AC power input, redundant Dante connectivity, and options for up to four antennas, which beyond redundancy, also allows for extended zone coverage and additional spectrum capacity.
Each base station can also support optional redundant MADI output modules (up to 2) with coaxial BNC and optical options available. This makes Spectera ideal for mission-critical applications with zero tolerance for failure.

11 Audio Links with Three Levels of Audio Quality

Three levels of audio quality up to 24-bit/96 kHz. On all modes, I/O can run at 48 or 96 kHz, independent on each interface.

Opus: high-quality digital audio even at the lowest setting.
SeDac: professional audio quality meeting or exceeding traditional systems.
PCM: fully uncompressed studio-quality audio.

Intuitive Workflow via LinkDesk Software

Intuitive workflow, plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac, and intuitive desktop application for full system control, setup, monitor, and control.

Assistive behavior in setting up the system.
Continuous RF spectrum scan.
License activation and Smart notifications.

Key Features

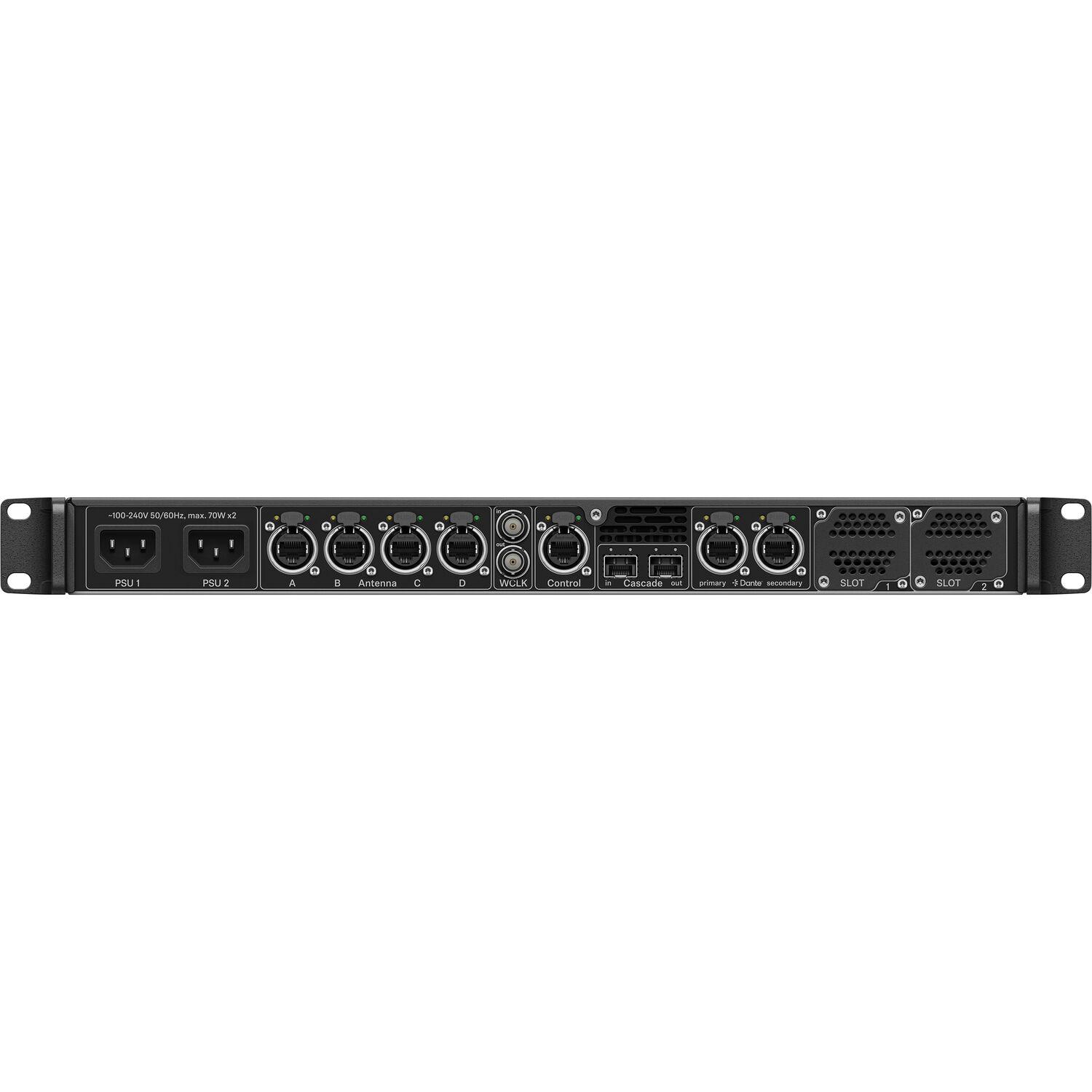

19’’ 1 RU Base Station with redundant power supplies.
Provides up to 64 channels (32-in / 32-out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)—country specific per region license.
4 Ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage.
Redundant Dante audio interface.
Two optional slots for redundant MADI (OM or BNC).
Sample rates of 48 and 96 kHz (24-bit).
Individual sample rate converters for all audio interfaces.
Wordclock I/O BNC.
Synchronized clock for all audio over RF allows 3D recordings and playback.
Adjustable RF power from 10 to 100mW (country specific).
RJ45 network interface for full remote control with secured interface.
11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM.
Secure transmission of confidential content using AES-256 encryption.
Ready for expansion via Cascade port.
Selective headphone output with volume control on front panel.
OLED display, jog wheel navigation, and rugged metal housing.
This base station comes with a license to operate in the USA - Zone 02: UHF (470 to 608, 657 to 663 MHz)

System

Wireless Technology	Analog UHF
Diversity	Non-Diversity
RF Frequency Band	470 to 608 MHz / 630 to 698 MHz
Number of RF Channel Frequencies	32
Max Operating Range	Not Specified by Manufacturer
Max Transmitters per Band	128
Encryption	AES 256
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No

Receiver

Receiver Type	1x Rackmount (19")
Mounting Options	Rackmount (with Included Hardware, 1 U)
Antenna	4x Removable
Number of Audio Channels	32
Audio I/O	1x 1/4" TRS Headphone Output
Slot-Mount I/O Adapters	No
Network I/O	2x RJ45 (Dante)
Word Clock I/O	1x BNC Input 1x BNC Output
USB/Lightning Connectivity	No
Frequency Response	20 Hz to 20 kHz
Display	OLED
Power Requirements	AC Input

Transmitters

Included Transmitters

No Transmitters Included

Microphones

Microphone Type

No Microphone Included

Power

Included Charging Case	No
Input Power	100 to 240 VAC, 50 / 60 Hz

Physical

Environmental Resistance	No
Housing	Metal
Dimensions	19 x 14.7 x 1.7" / 483 x 373 x 44 mm
Weight	13.9 lb / 6.3 kg

Packaging Info

Package Weight	17.9 lb
Box Dimensions (LxWxH)	21.3 x 17.5 x 7"
