Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)

Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)

Name: Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)
Brand: SENNHEISER
SKU: 6256
Availability: InStock

Brand: SENNHEISER

MFR: XSW-D MINI JACK TX

Price Available Upon Request

For Use with XSW-D Wireless Mic System
3.5mm Locking Microphone Input Connector
For Lavalier and Headset Mics
Easy to Use, Plug & Play Operation
Lightweight Miniature Housing
USB-Rechargeable 5-Hour Battery
Includes USB Charging Cable
5 Systems at Once Max, Up to 250' Range

Items Included

Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)

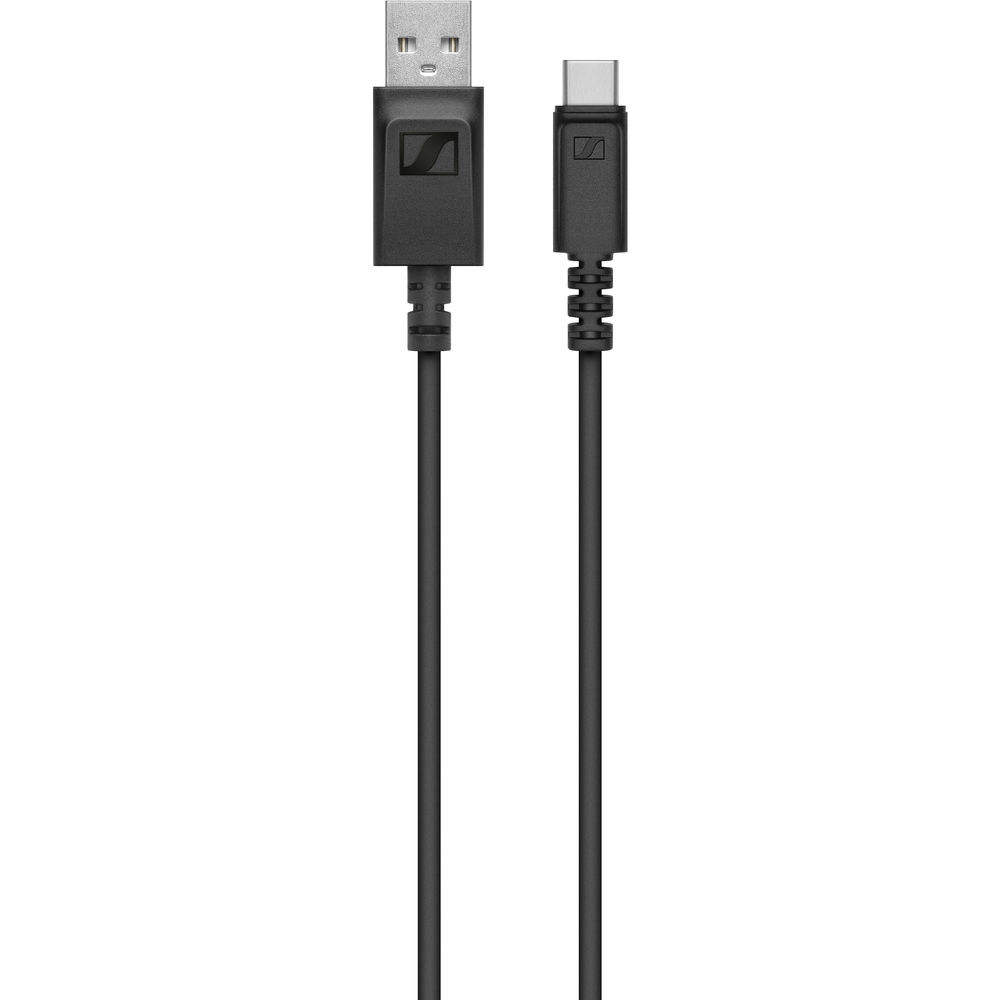

USB Type-A to USB Type-C Charging Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Transmitter

The XSW-D MINI JACK TX waistband transmitter is part of the Sennheiser XSW-D digital wireless system and is available separately or as a spare if you plan to add a transmitter to your body.

XSW-D MINI JACK TX has a 3.5mm locking microphone-in connector for attaching Sennheiser or Sennheiser via lavalier or headset microphones. This lightweight and compact transmitter can be easily stored in your pocket or neatly wrapped around your waist with a belt (sold separately). Note that it is designed to transmit signals only from the microphone (not the mixer or recorder).
The XSW-D packs premium Sennheiser wireless connectivity into a compact, plug-and-play, one-button digital system that anyone can use. Plug in, plug in and get started, speeding up your workflow so you can focus on creating.

Plug In, Turn On: It Works

The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.

(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)

Step Up to Sennheiser Sound Quality

Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.

Easy 2.4 GHz Digital Wireless

Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.

License-Free Operation Worldwide

Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
Simply let the system pick a channel for you, and you're ready to get started—whether you're working at home or anywhere in the world.

Other Features

Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of shooting time
Conveniently recharge battery via USB while in operation or during breaks throughout the day
Up to five systems can be operated simultaneously in the same environment
Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
Mute from either transmitter or receiver
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

Wireless Technology	Digital 2.4 GHz
RF Frequency Band	2400 to 2483.5 MHz
Max Operating Range	250' / 76.2 m (Line of Sight)
Latency	< 4 ms
Encryption	None
Modulation	GFSK

Transmitter

Transmitter Type	Bodypack
RF Output Power	10 mW
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting	Off/On Switch
Audio Input Level	1.2 dBu (Mic Level)
Frequency Response	80 Hz to 18 kHz
Antenna	1 x Internal
Power Requirements	Battery, Bus Power (USB)
Battery Type	1 x Built-In Rechargeable(Not Replaceable)
Internal Battery Capacity	850 mAh
Battery Charging Time	3 Hours
Approx. Battery Life	5 Hours (Lithium Rechargeable)
Battery Cycle Count	Up to 1000 Cycles
USB/Lightning I/O	1 x USB-C (Bus Power, Charging)
Housing	Plastic
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	95%
Dimensions	1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm
