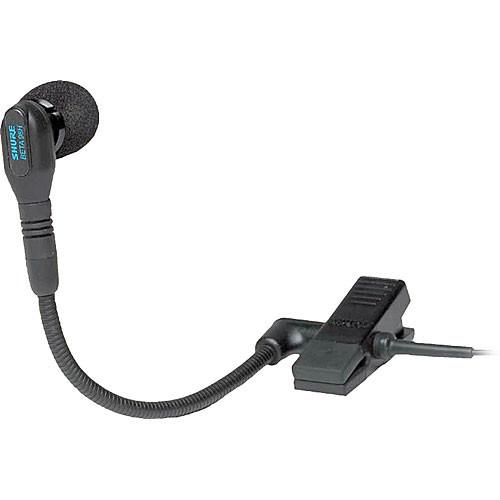

The Shure Beta 98H/C is a miniature condenser instrument microphone with an in-line preamplifier designed to clearly capture the sounds of today's professional horn and woodwind players. The mic features a clamping mechanism that attaches to the bell of a wind instrument or the rim of a percussion instrument, while an integrated gooseneck and ratcheting swivel joint ensure secure, optimal positioning. Once the position is determined, the gooseneck angle brace ensures that the Beta 98H/C will stay in place during even the most active performances.
The cardioid pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise. With a high maximum sound pressure level (SPL) up to 132 dB, the Beta 98H/C is ready to handle the demands of brass and woodwind instruments and is a strong performer for percussion applications. The 10' XLR cable features a wired, in-line, transformerless preamplifier circuit designed to deliver a linear response across the mic's full frequency range. The microphone requires 11 to 52V phantom power for operation.
| Microphone Type | Instrument-Mount |
| Polar Pattern | Cardioid |
| Element Type | Electret Condenser |
| Sound Field | Mono |
| Orientation | N/A to Clip-On Instrument Mics |
| Controls | No |
| Pad | No |
| Circuitry | Solid-State |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL | 155 dB (1-Kilohm Load) |
| Sensitivity | -56 dBV/Pa |
| Dynamic Range | 132 dB (1 kHz, 1-Kilohm Load) |
| Equivalent Noise Level | 31 dB |
| Analog Output Connector | 1x TA4F/Mini-XLR 4-Pin Female (on Mic) 1x XLR 3-Pin (on Preamp) |
| Cable Length | 10' / 3 m |
| Power Sources | Phantom Power |
| Operating Voltage | 11 to 52 V (Phantom Power) |
| Color | Black |
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 10.079 x 4.961 x 3.465" |
