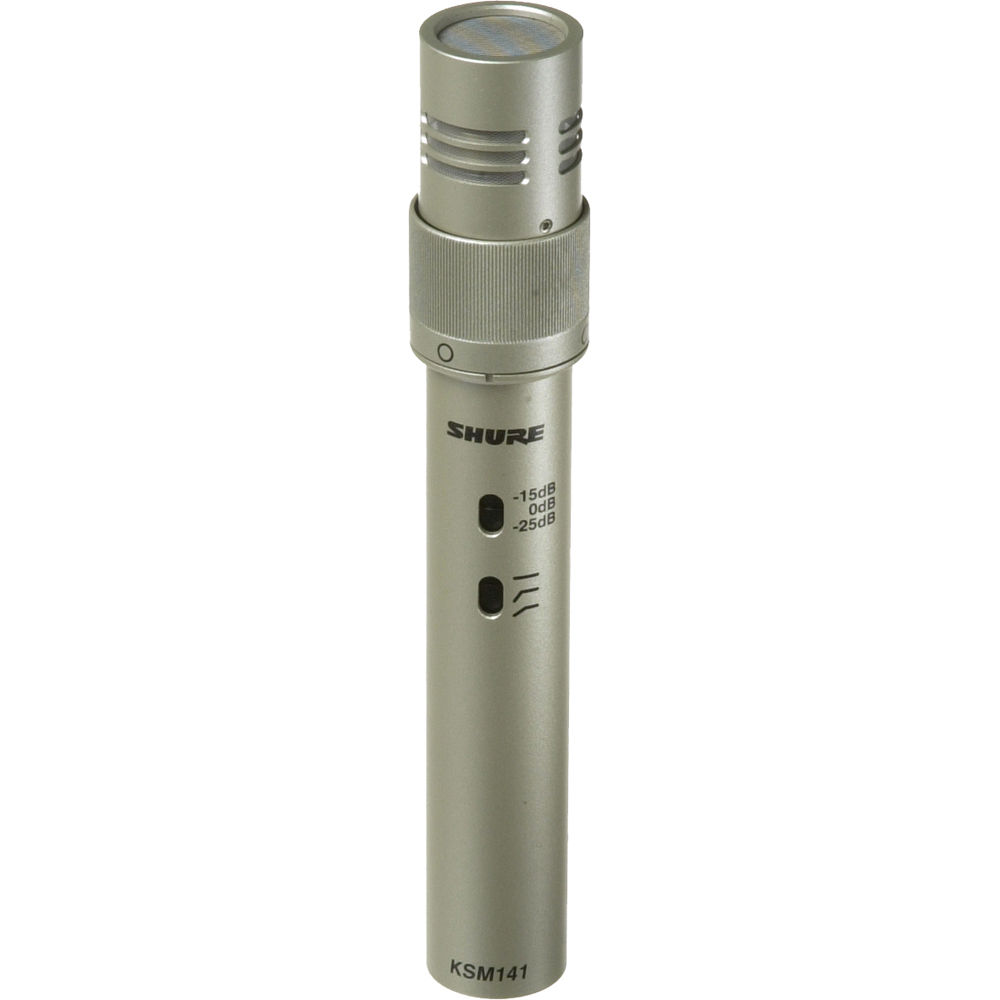

The KSM141/SL from Shure is a switchable-polar-pattern condenser studio microphone designed for instrument recording and sound reinforcement. The capsule's pattern is switchable between omnidirectional and cardioid pick up. Omnidirectional offers a more generous pickup area while cardioid offers attenuation of noise and ambiance at the off-axis sections of the microphone. In addition, the microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible solution for a variety of applications. The KSM141/SL's element features a permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response. The transformerless Class-A output circuitry provides a noise-free-output signal path while maintaining high gain levels.
There is a 3-position low-frequency roll-off switch, eliminating low-frequency rumble noise and counteracting proximity effect. The KSM141/SL handles high sound-pressure levels and features a 3-position pad switch providing attenuation at 0, 15, 25 dB. This allows for confident miking of instruments high in transient response such as drums, percussion, and brass. The microphone is also suitable for recording piano, strings, guitar, and woodwinds. The KSM141/SL ships with a case, a microphone clip, and a foam windscreen.
Switchable Patterns
The KSM141/SL features switchable polar patterns. Omnidirectional offers a generous pickup pattern suitable for recording ambiance, vocal groups etc. The cardioid pattern is tighter and provides effective rejection of off-axis signal.
Class-A Transformerless Circuitry
The transformerless, Class-A output circuitry provides a noise free output signal path while maintaining high gain levels.
3-Position Low-Frequency Roll-Off Switch
The KSM141/SL provides flexible low-frequency attenuation, eliminating low-frequency noise and rumble.
3-Position Pad Switch
The 0, 15, and 25 dB Pad switch adds greater SPL-handling allowing the microphone to withstand high audio levels without distortion.
Wide Frequency Response
The microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications.
Microphone
| Capsule | Condenser |
| Polar Pattern | Cardioid, Omnidirectional |
| Pattern Selection | Switched |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 145 dB SPL |
| Impedance | 150 Ohms |
| Sensitivity | -37 dB at 1 kHz |
| Dynamic Range | 131 dB |
| Signal-to-Noise Ratio | 80 dB |
| Equivalent Noise Level | 14 dB A-Weighted |
Power
| Operating Voltage | 48 V ± 4 V |
| Operating Current Consumption | 4.65 mA |
Physical
| Dimensions | ø: 0.8 x L: 5.75" / ø: 20.32 x L: 146.05 mm |
| Weight | 5.5 oz / 156 g |
Packaging Info
| Package Weight | 2.025 lb |
| Box Dimensions (LxWxH) | 12.1 x 9.15 x 3.15" |
