Categories: Microphones
The PGADRUMKIT7 from Shure is a 7-piece professional-quality drum microphone kit designed to capture sound for close-mic kick drum, snare, and tom performance sets. It can be used in audio applications for live stage, theater, houses of worship, and more.

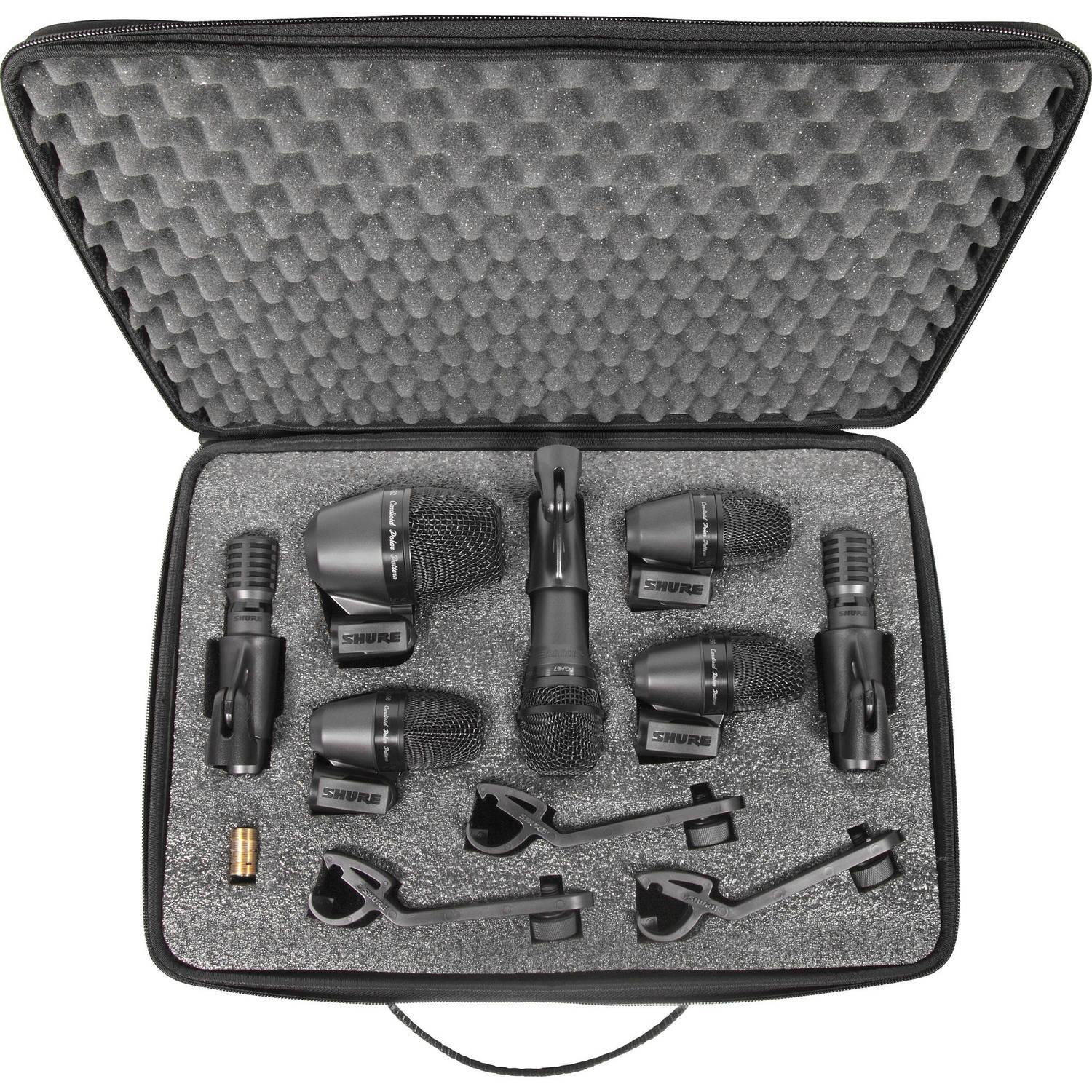

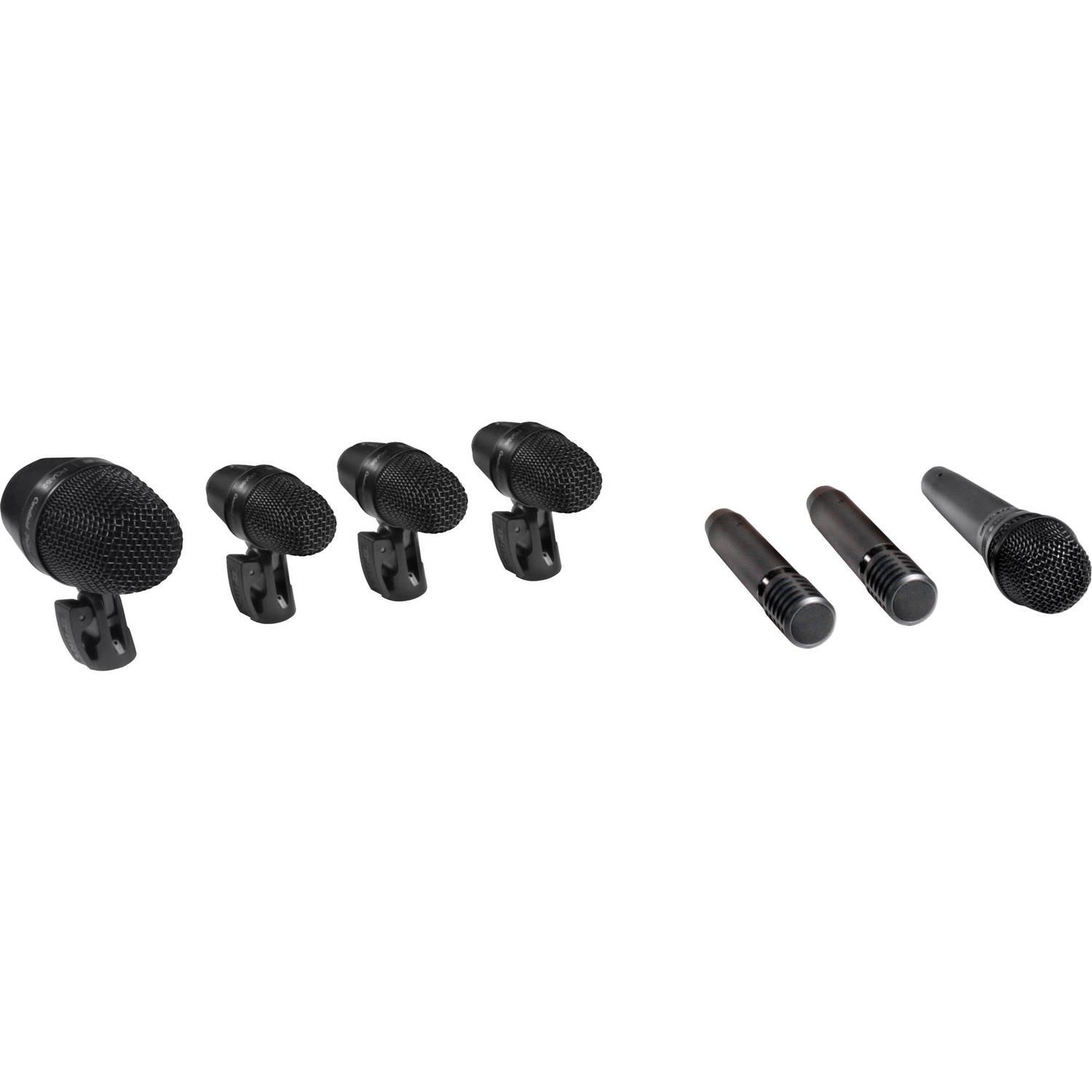

Included in the PGADRUMKIT7 are one PGA52 kick drum microphone, three PGA56 drum microphones for toms and snare, one PGA57 instrument microphone, and two PGA81 condenser microphones. In addition, three drum mounts, three microphone clips, seven XLR-XLR cables, and a carrying case are also included.
| Type | Dynamic (moving coil) |
| Frequency Response | PGA52: 50 Hz to 15 kHz PGA56: 50 Hz to 15 kHz PGA57: 70 Hz to 15 kHz PGA81: 40 Hz to 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | PGA52: 150 ohms PGA56: 200 ohms PGA57: 150 ohms PGA81: 600 ohms |
| Cable | None |
| Sensitivity | PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage PGA81: -48 dBV/Pa (3.8 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Output Connector | 3-pin XLR male |
| Power Requirements | PGA52: N/A PGA56: N/A PGA57: N/A PGA81: 48 VDC phantom power (2.0 mA) |
| Operating Temperature | -20 to 165°F (-29 to 74°C) |
| Operating Humidity | 0 to 95% |
| Dimensions | Not specified by manufacturer |
| Weight | PGA52: 16.01 oz (454 g) PGA56: 10.12 oz (287 g) PGA57: 9.9 oz (280 g) PGA81: 6.6 oz (186 g) |
| Package Weight | 12.85 lb |
| Box Dimensions (LxWxH) | 22.5 x 13 x 4.2" |
