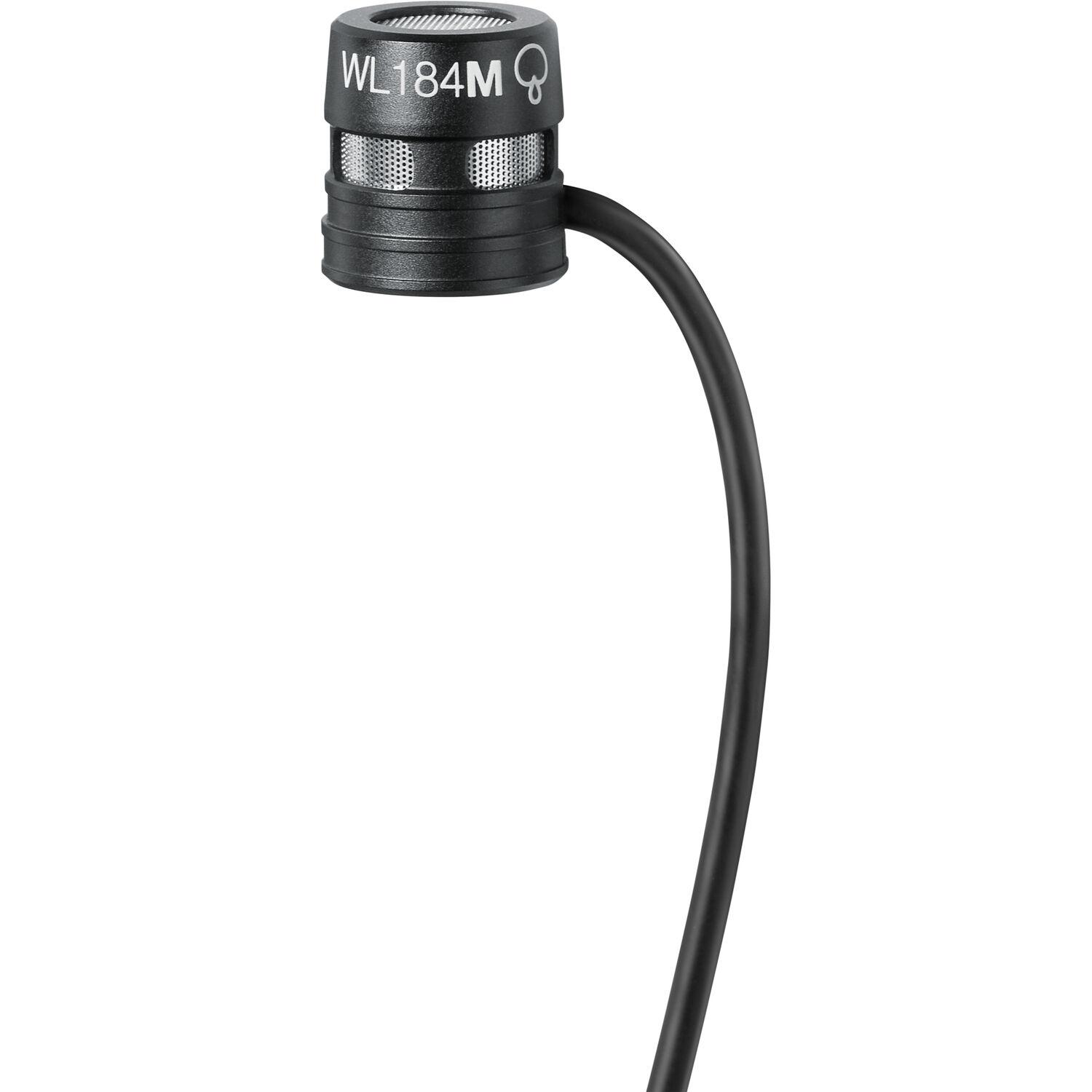

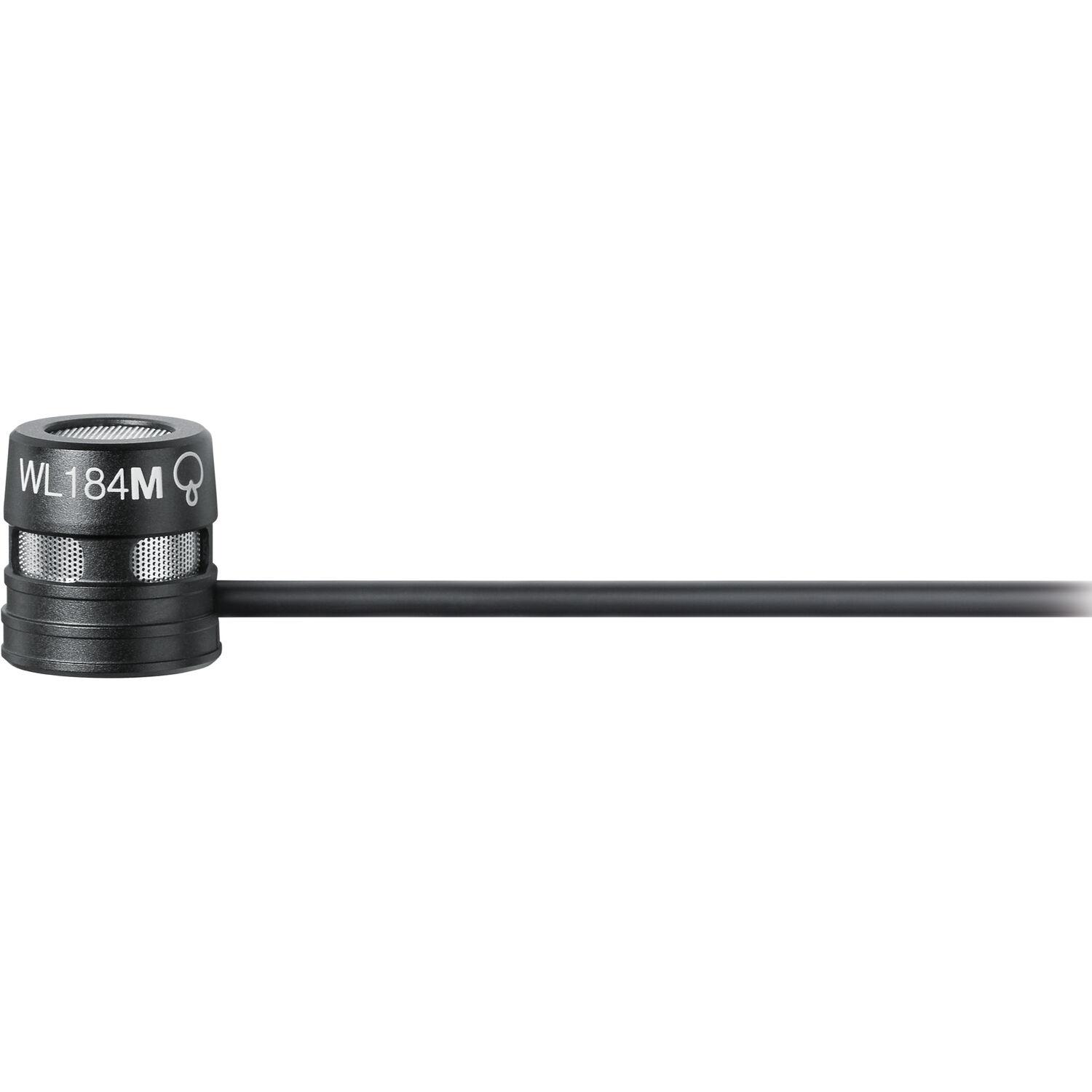

Shure WL184m Low-Profile Supercardioid Lavalier Microphone with TA4F Connector (Black)

Brand: SHURE

MFR: WL184MB/S-TQG

SKU: SF-2443-ATRZ

606.00

  • For Broadcast, Journalism & Presentation
  • Supercardioid Pickup Cuts Feedback
  • For Wireless Transmitters with TA4M
  • Discreet, Updated Design Is 8mm Shorter
  • Improved 121 dB Dynamic Range
  • Handles up to 144 dB SPL
  • Requires 5V Power
  • Includes Snap-Fit Windscreen
  • Includes Adjustable Tie Clip and Pouch

Items Included


  • Shure WL184m Low-Profile Supercardioid Lavalier Microphone with TA4F Connector (Black)
  • Snap-Fit Windscreen
  • Rotatable Lapel Clip
  • Zippered Carrying Pouch
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity
A Discreet and Dependable Supercardioid Lavalier

The black Shure WL184m is a discreet, low-profile supercardioid lavalier microphone well suited to a wide variety of interview, presentation, broadcast, and film/video applications. Not only does the lav offer a profile that is 8mm shorter then previous models, the WL184m delivers better audio quality with an improved presence response, higher dynamic range, and lower self-noise for crystal clear speech and vocals.



Optimized for a 5 VDC plug-in power source, the mic features a 4' cable terminating in a TA4F connector for use with a compatible Shure wireless bodypack transmitter or similar device. A snap-fit windscreen and adjustable lapel clip that offers 90° rotation for optimal mic placement are included. A zippered storage pouch is also supplied.

Supercardioid Polar Pattern
The mic's supercardioid polar pattern delivers a very narrow pickup pattern focused tightly on the person talking. This helps to reduce bleed from other audio sources and is especially useful in keeping feedback under control when loudspeakers and audio monitors are used.
Headroom for Speech and Vocals
The electret condenser capsule in this TA4F version of the WL184m offers a 121 dB dynamic range and a very low self-noise of only 23 dB SPL. It can also handle up to 144 dB SPL with only 1% total harmonic distortion (THD), providing headroom for broadcast-quality interviews, speech, and dialog.
Frequency Response Tailored for Speech
With a frequency range from 70 Hz to 20 kHz, the mic filters out unnecessary low frequencies and provides extended high-end range for accurate and transparent speech reproduction.
Low-Profile Appearance
Compared to the original, the durable aluminum alloy housing on the WL184m is 8mm shorter and features a smaller snap-on windscreen, providing a more discreet appearance for presenters, performers, and on-camera talent.
TA4F Connector
Compatible Wireless Transmitters
  • Shure: works with Shure transmitters equipped with a TA4M connector, including the following models: AD1, ADX1, AXT100TA4F, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, and ULXD1
  • Third-party devices: the WL184m will work with third-party wireless transmitters that are equipped to supply 5 VDC through a TA4M connector.

Microphone
Compatible Transmitters
Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1
Polar Pattern
Supercardioid
Included Tone/Pattern Caps
No
Performance
Frequency Response
70 Hz to 20 kHz
Maximum SPL
144 dB (1% THD)
Sensitivity
-47 dBV/Pa
Dynamic Range
121 dB
Equivalent Noise Level
23 dB SPL
Connectivity
Analog Output Connector
1x TA4F/Mini-XLR 4-Pin Female
Cable Length
4' / 1.2 m
Cable Diameter
0.1" / 2.2 mm
Power
Power Sources
Plug-In Power
Operating Voltage
5 V
Physical
Color
Black
Environmental Resistance
No
Dimensions
ø: 0.5 x L: 0.53" / ø: 12.74 x L: 13.55 mm
Weight
0.7 oz / 20 g (with Cable)
Packaging Info
Package Weight
0.36 lb
Box Dimensions (LxWxH)
6.2 x 6.1 x 1.7"
